Bilstein 25-305326 - 5160 Series 20-22 Jeep Gladiator Rear Shock Absorber

Bilstein 25-305326 - 5160 Series 20-22 Jeep Gladiator Rear Shock Absorber

Bilstein | 25-305326
SKU: BIL-25-305326
Regular price $199.00 USD
Regular price $218.90 USD Sale price $199.00 USD
Sale Sold out
Shipping calculated at checkout.

26 in stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

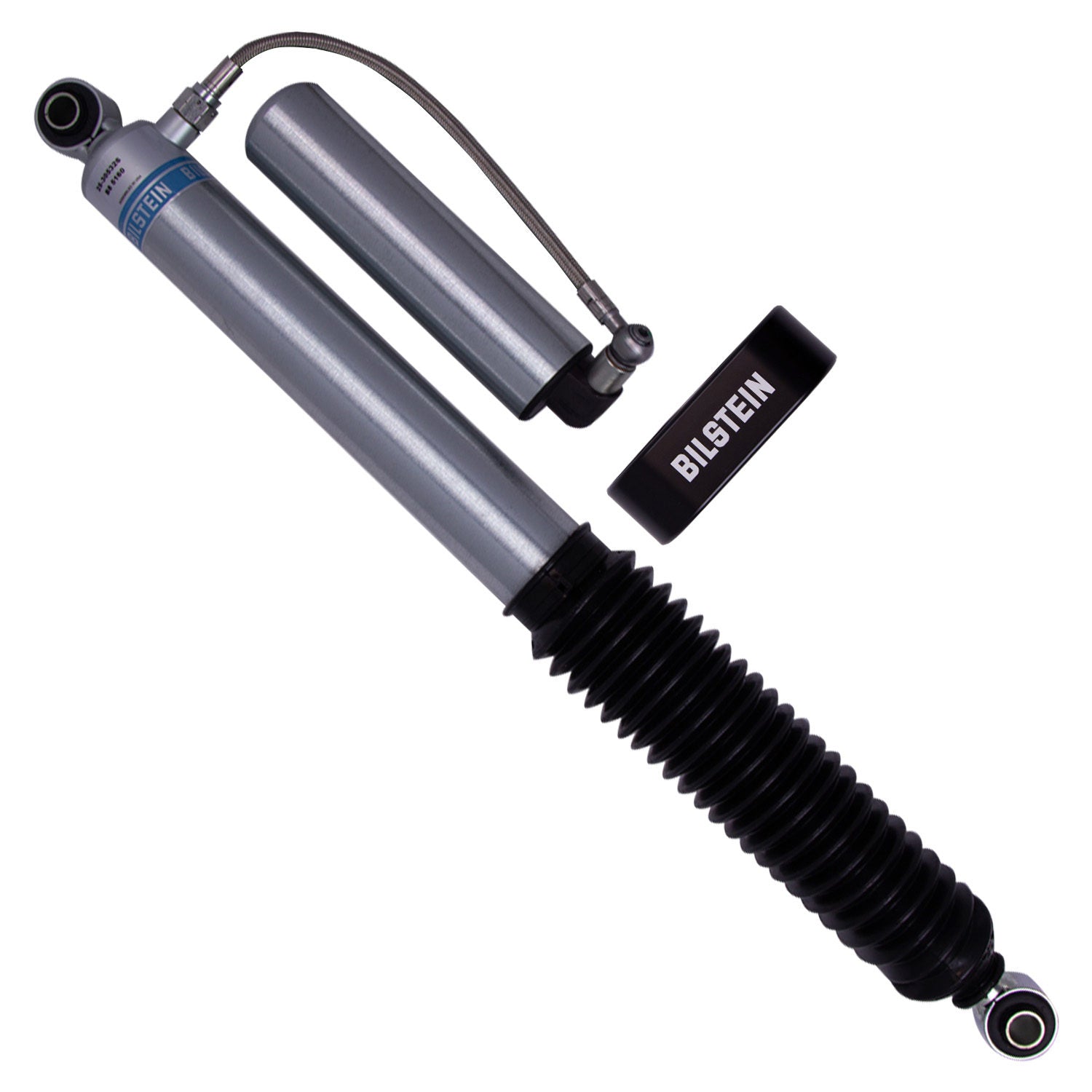

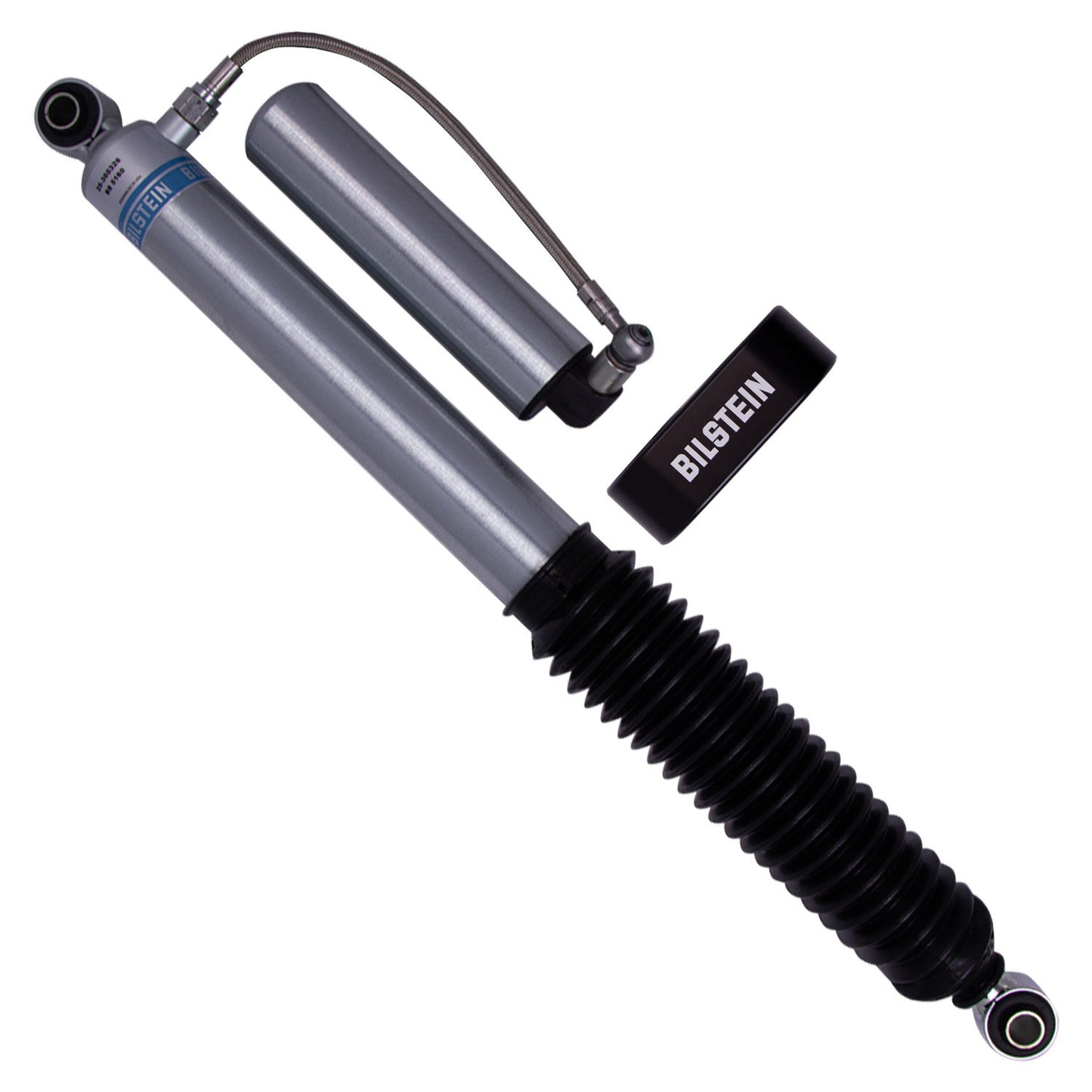

Bilstein 25-305326 - 5160 Series 20-22 Jeep Gladiator Rear Shock Absorber

B8 5160 Classic - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5160 Classic remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 Classic remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • Remote reservoir increases shock oil capacity for greater heat dissipation
Collapsed Length (MM): 427.5
Finish: Zinc Plated
Series: B8 5160
PartType: Shocks / Struts
Adjustable Damping: Non-Adjustable
Stroke/Travel Length (mm): 294.1
Extended Length (MM): 721.7
Boot Included: Black Bellows
Segment: Light Truck
Spring Seat Included: No
Internal Design: Monotube
Collapsed Length (IN): 16.83
Extended Length (IN): 28.41
Stroke/Travel Length (IN): 11.58
Lower Mount Type: Eye 14.1mm
Upper Mount Type: Eye 14.1mm
Reservoir: Yes
Piston Diameter: 46mm
Shaft Diameter: 14mm

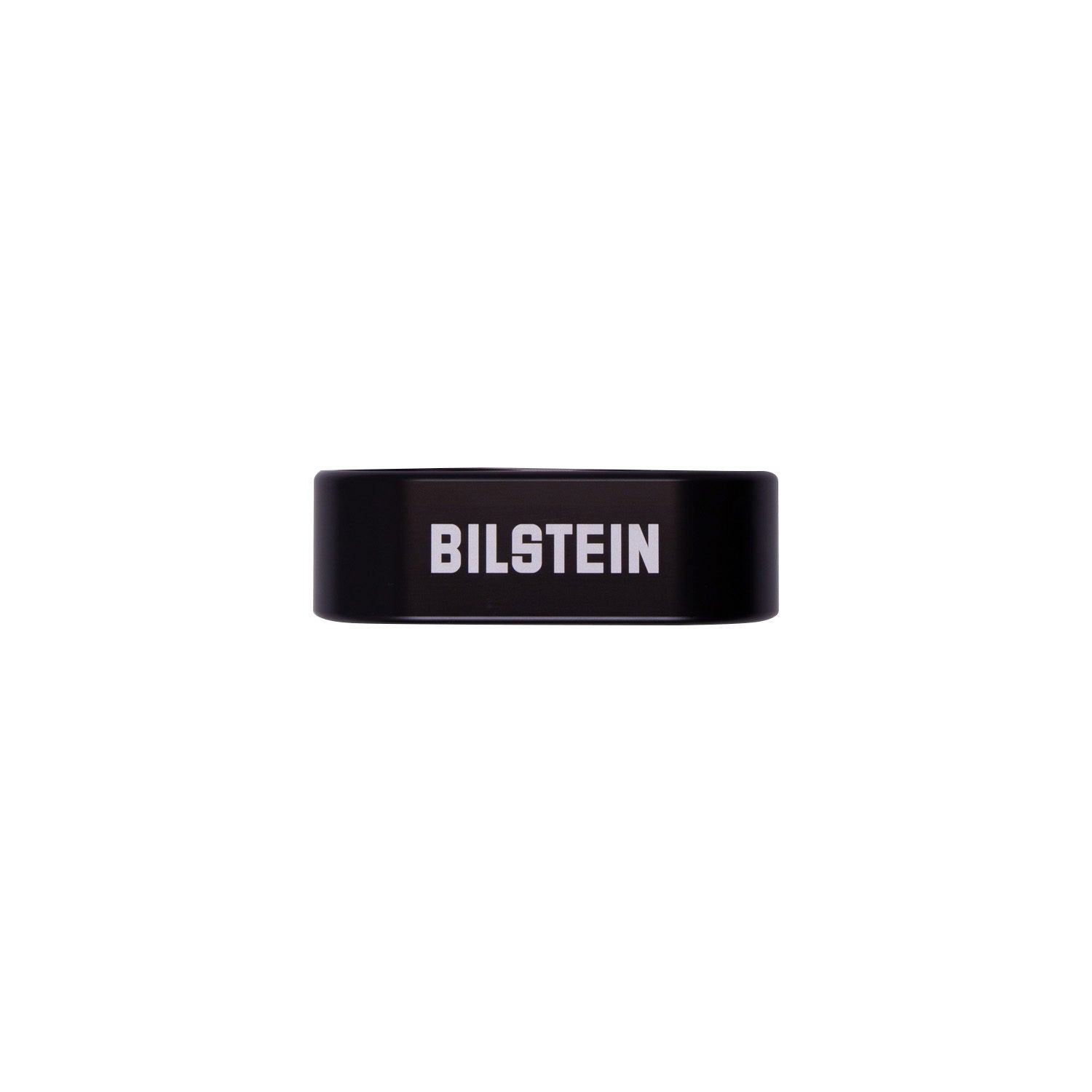

Billet Reservoir Clamp Included: Yes
Body Design: Smooth Body (Non-Coilover)
