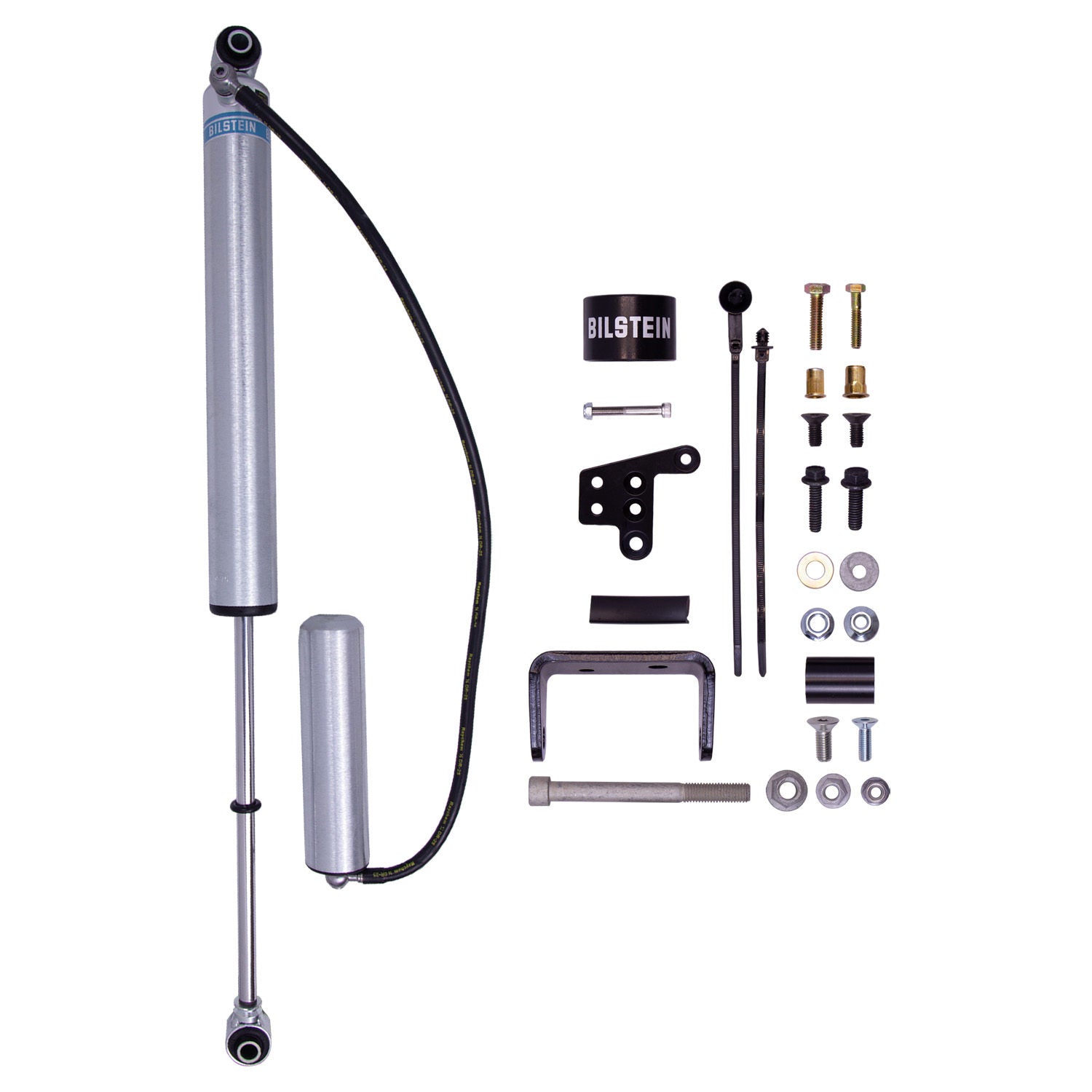

Bilstein 25-305302 - B8 5160 Series 20-22 Jeep Gladiator Front Right Shock Absorber(3-4.5in Lift)

Bilstein 25-305302 - B8 5160 Series 20-22 Jeep Gladiator Front Right Shock Absorber(3-4.5in Lift)

Bilstein | 25-305302
SKU: BIL-25-305302
Regular price $199.00 USD
Regular price $218.90 USD Sale price $199.00 USD
Sale Sold out
Shipping calculated at checkout.

28 in stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Bilstein 25-305302 - B8 5160 Series 20-22 Jeep Gladiator Front Right Shock Absorber(3-4.5in Lift)

B8 5160 Classic - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5160 Classic remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 Classic remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • Remote reservoir increases shock oil capacity for greater heat dissipation
Collapsed Length (IN): 17.56
Extended Length (IN): 29.38
Stroke/Travel Length (IN): 11.82
Lower Mount Type: Eye 12.8mm
Upper Mount Type: Eye 12.8mm
Reservoir: Yes
Body Design: Smooth Body (Non-Coilover)
Segment: Light Truck
Spring Seat Included: No
Billet Reservoir Clamp Included: Yes
Collapsed Length (MM): 446.0
Finish: Zinc Plated
Series: B8 5160
PartType: Shocks / Struts
Adjustable Damping: Non-Adjustable
Stroke/Travel Length (mm): 300.2
Extended Length (MM): 746.2
Boot Included: No
Piston Diameter: 46mm
Shaft Diameter: 14mm
Internal Design: Monotube
