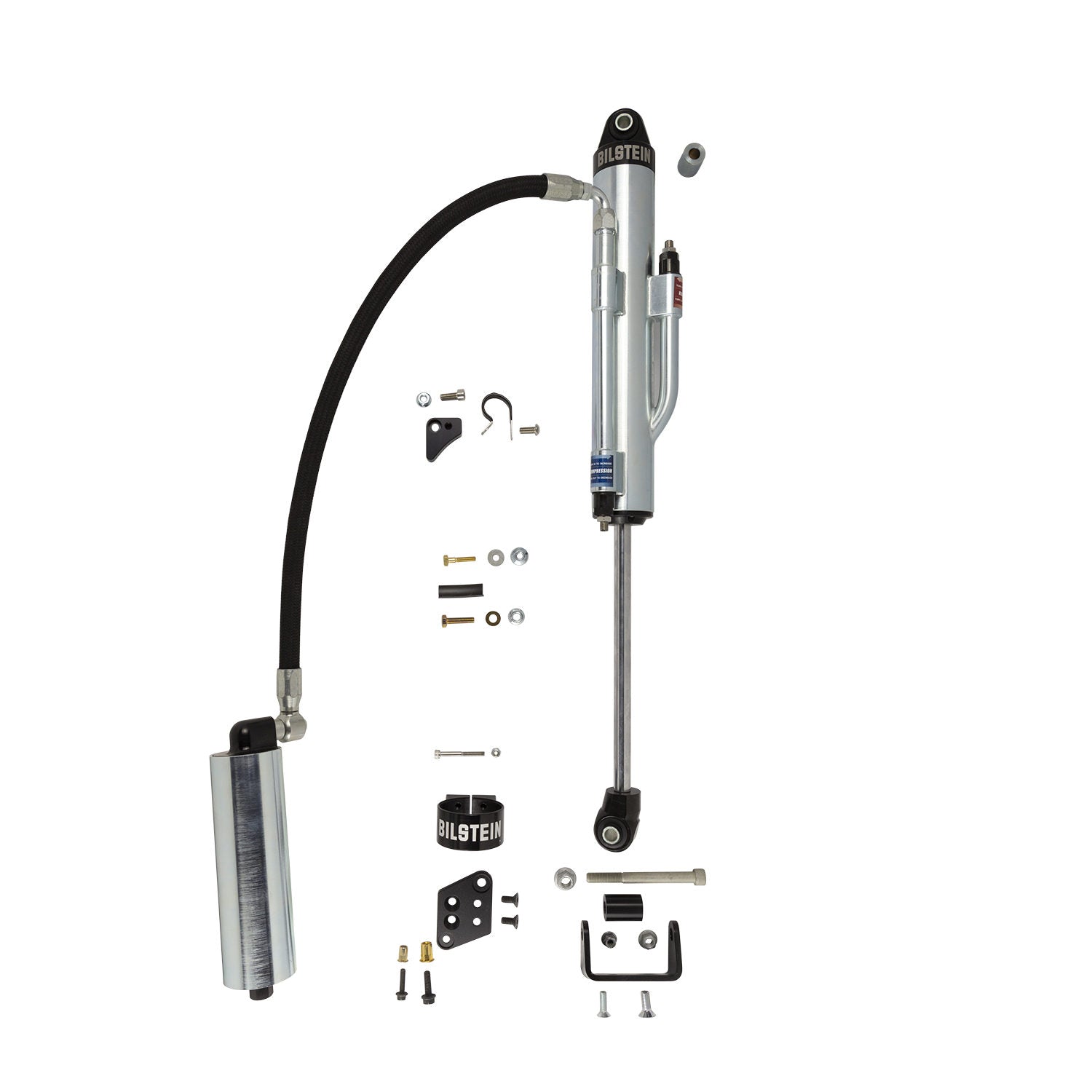

Bilstein 25-287806 - 18-20 Jeep Wrangler B8 8100 (Bypass) Front Left Shock Absorber - 3-4.5in Lift

Bilstein 25-287806 - 18-20 Jeep Wrangler B8 8100 (Bypass) Front Left Shock Absorber - 3-4.5in Lift

Bilstein | 25-287806
SKU: BIL-25-287806
Regular price $1,091.00 USD
Regular price $1,200.10 USD Sale price $1,091.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Bilstein 25-287806 - 18-20 Jeep Wrangler B8 8100 (Bypass) Front Left Shock Absorber - 3-4.5in Lift

B8 8100 (Bypass) - Suspension Shock Absorber

60mm Shock Absorber

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

  • Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
  • Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
  • 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
Collapsed Length (IN): 18.11
Adjustable Damping: Double Adjustable – Compression and Rebound
Spring Seat Included: No
Internal Design: Monotube
Body Design: Bypass Body (Non-Coilover)
PartType: Shocks / Struts
Extended Length (MM): 740.0
Upper Mount Type: Eye 12.8mm
Series: B8 8100 (Bypass)
Collapsed Length (MM): 460.0
Reservoir: Yes
Boot Included: No
Lower Mount Type: Eye 12.8mm
Finish: Zinc Plated
Piston Diameter: 60mm
Shaft Diameter: 18mm
Segment: Light Truck
Extended Length (IN): 29.13
