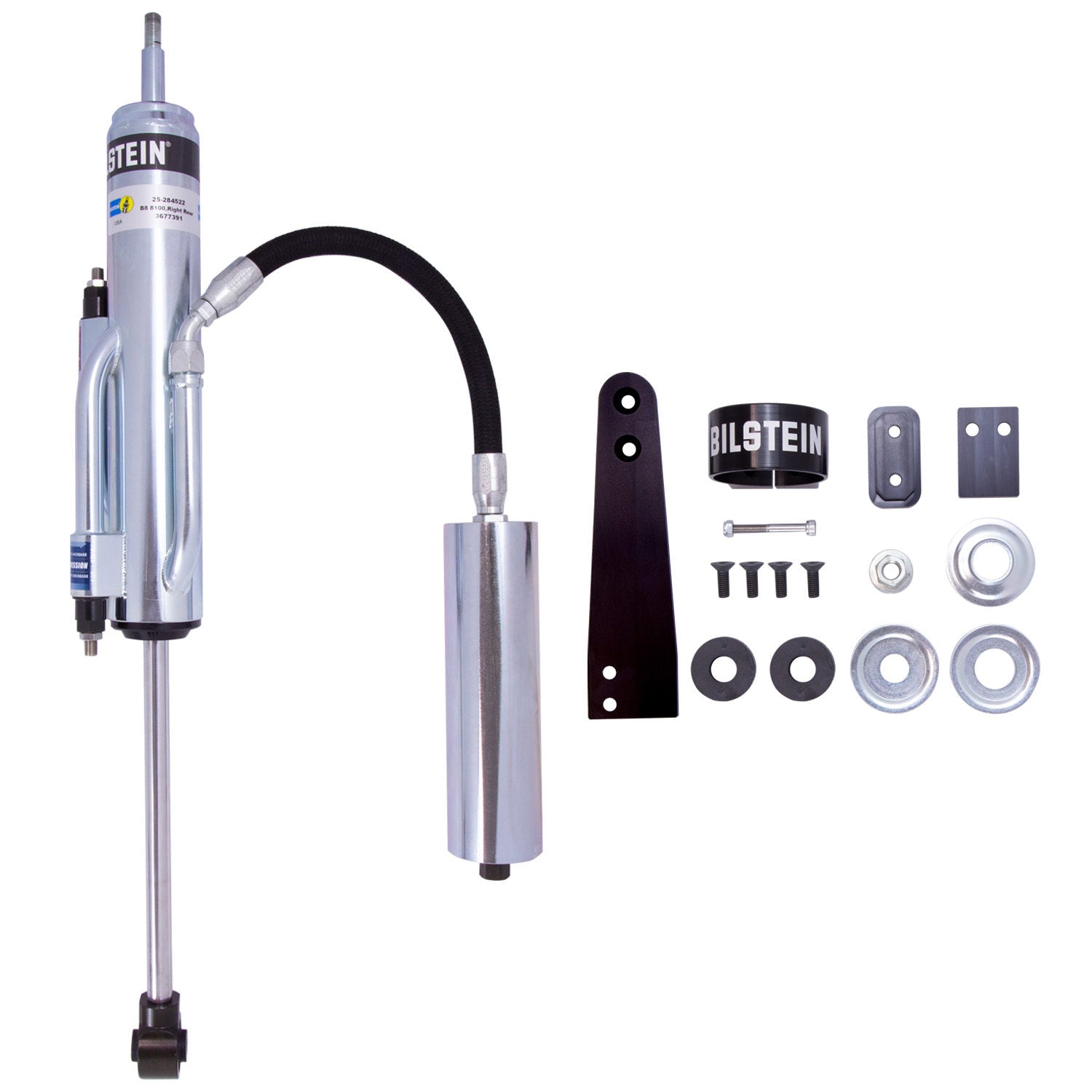

Bilstein 25-284522 - 2007-2019 Toyota Tundra B8 8100 Rear Right Shock Absorber

Bilstein 25-284522 - 2007-2019 Toyota Tundra B8 8100 Rear Right Shock Absorber

Bilstein | 25-284522
SKU: BIL-25-284522
Regular price $1,105.99 USD
Regular price $1,216.59 USD Sale price $1,105.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Bilstein 25-284522 - 2007-2019 Toyota Tundra B8 8100 Rear Right Shock Absorber

B8 8100 (Bypass) - Suspension Shock Absorber

60mm Shock Absorber

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

  • Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
  • Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
  • 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
Collapsed Length (IN): 15.75
Spring Seat Included: No
Adjustable Damping: Double Adjustable – Compression and Rebound
Internal Design: Monotube
Body Design: Bypass Body (Non-Coilover)
PartType: Shocks / Struts
Extended Length (MM): 657.4
Upper Mount Type: Stem
Series: B8 8100 (Bypass)
Collapsed Length (MM): 400.0
Reservoir: Yes
Boot Included: No
Lower Mount Type: Eye 12.4mm
Finish: Zinc Plated
Piston Diameter: 60mm
Shaft Diameter: 18mm
Segment: Light Truck
Extended Length (IN): 25.88
