Bilstein 25-187861 - 5160 Series 5165 Series 7.5in. Travel 170/60 46mm Monotube Shock Absorber

Bilstein 25-187861 - 5160 Series 5165 Series 7.5in. Travel 170/60 46mm Monotube Shock Absorber

Bilstein | 25-187861
SKU: BIL-25-187861
Regular price $237.00 USD
Regular price $260.70 USD Sale price $237.00 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

NON-CANCELLABLE OR RETURNABLE ITEM:
This is because the item is either a clearance item, or it may be made to order. Ask all questions before ordering.

Bilstein 25-187861 - 5160 Series 5165 Series 7.5in. Travel 170/60 46mm Monotube Shock Absorber

B8 5165 Classic - Suspension Shock Absorber

46mm Monotube Shock Absorber

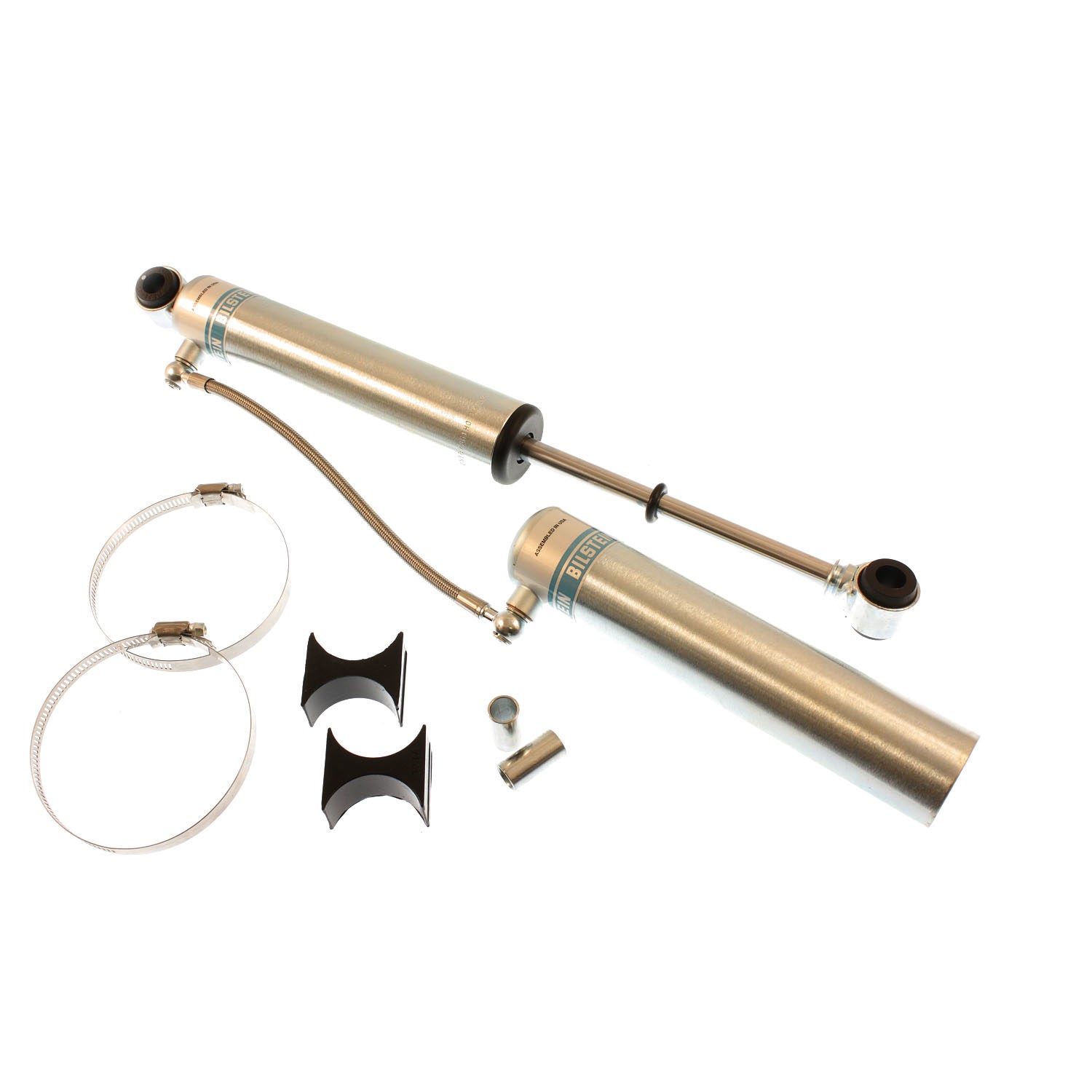

Bilstein B8 5165 Classic remote reservoir shock absorbers are designed to be used on custom off-road vehicles in order to achieve the desired ride of your light truck or SUV. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom applications. All B8 5165 Classic shock absorbers come equipped with 5/8 inch eyelets with hour glass bushings on both ends. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5165 Classic cremote reservoir shock absorbers will increase overall durability of your custom vehicle allowing you to conquer the harshest of off-road environments.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • Remote reservoir increases shock oil capacity for greater heat dissipation
Mount Type: Eye-to-Eye
Collapsed Length (IN): 12.30

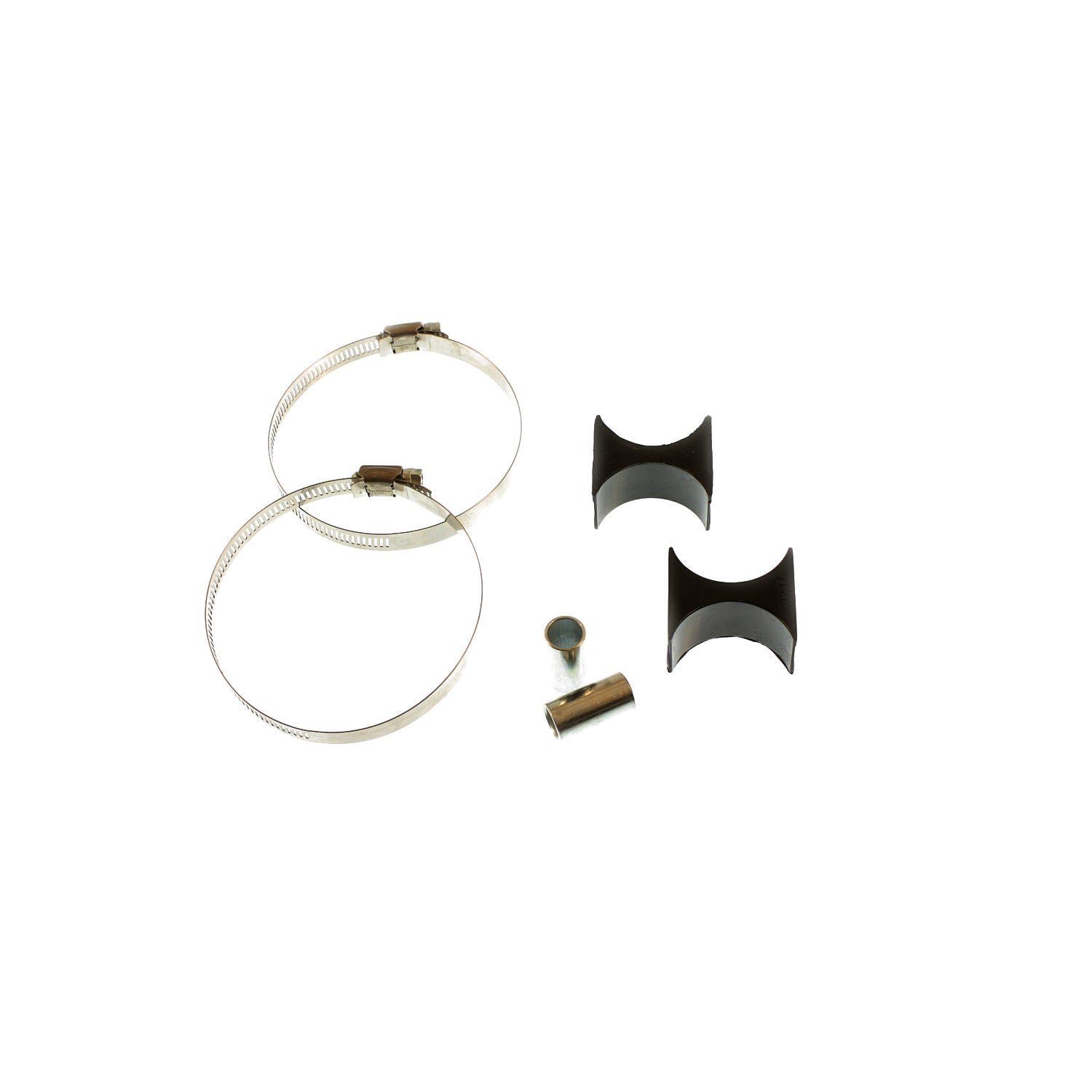

Optional Reservoir Clamp: 11-176015
Spring Seat Included: No
Adjustable Damping: Non-Adjustable
Internal Design: Monotube
Body Design: Smooth Body (Non-Coilover)
Extended Length (MM): 500.9
PartType: Shocks / Struts
Upper Mount Type: Eye 5/8in
Series: B8 5165
Stroke/Travel Length (IN): 7.42
Stroke/Travel Length (mm): 188.5
Collapsed Length (MM): 312.4
Rebound @0.52m/s: 1600
Reservoir: Yes
Boot Included: No
Compression @0.52m/s: 575
Lower Mount Type: Eye 5/8in
Finish: Zinc Plated
Piston Diameter: 46mm
Shaft Diameter: 14mm
Segment: Light Truck
Extended Length (IN): 19.72
