Bilstein 24-336215 - Shock Absorbers

Bilstein 24-336215 - Shock Absorbers

Bilstein | 24-336215
SKU: BIL-24-336215
Regular price $197.99 USD
Regular price $245.85 USD Sale price $197.99 USD
Sale Sold out
Shipping calculated at checkout.

23 in stock

Quantity

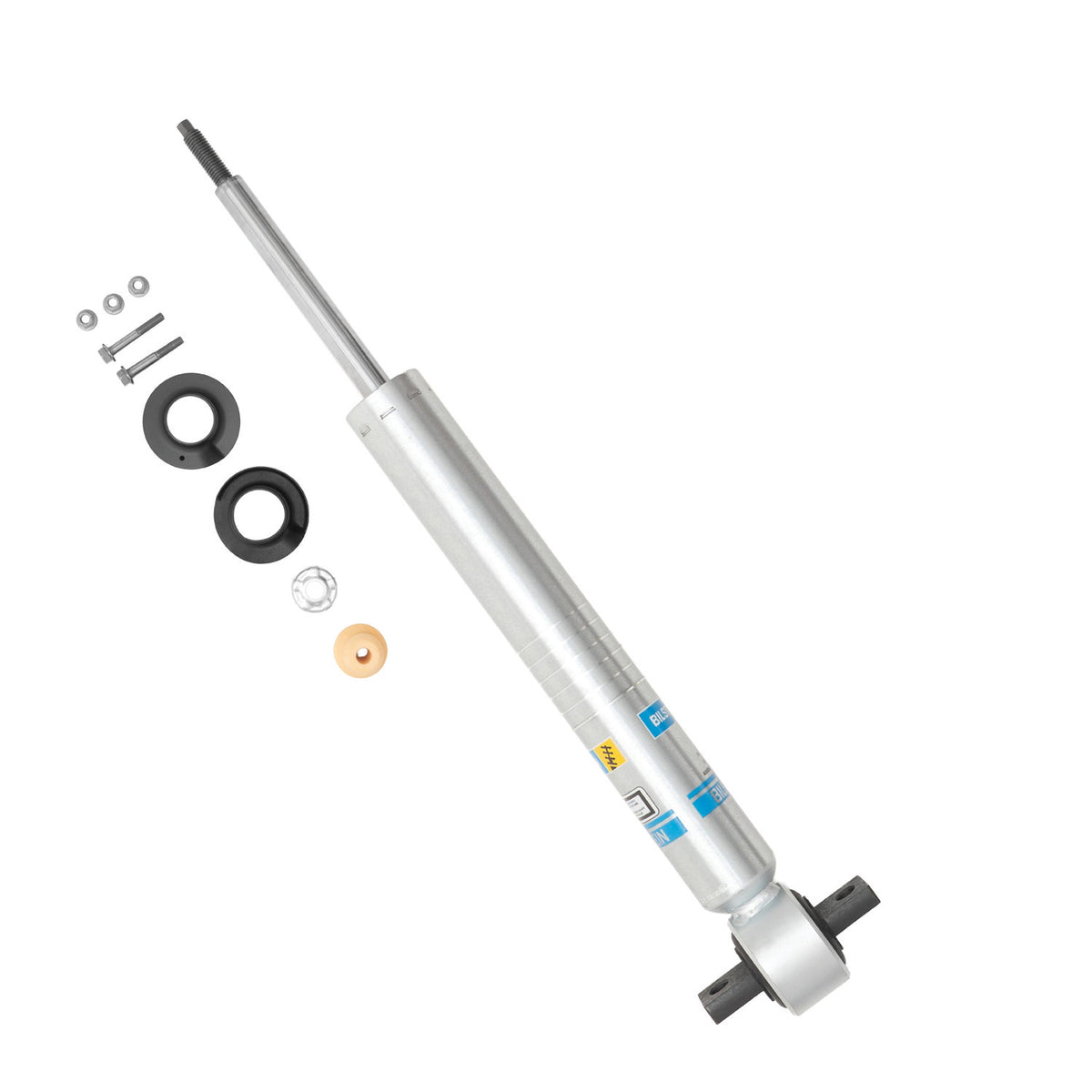

Bilstein 24-336215 - Shock Absorbers

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
Piston Diameter: 46mm
Adjustable Damping: Non-Adjustable
Segment: Light Truck
Body Design: Snap Ring Grooved Body (Coilover)
Finish: Zinc Plated

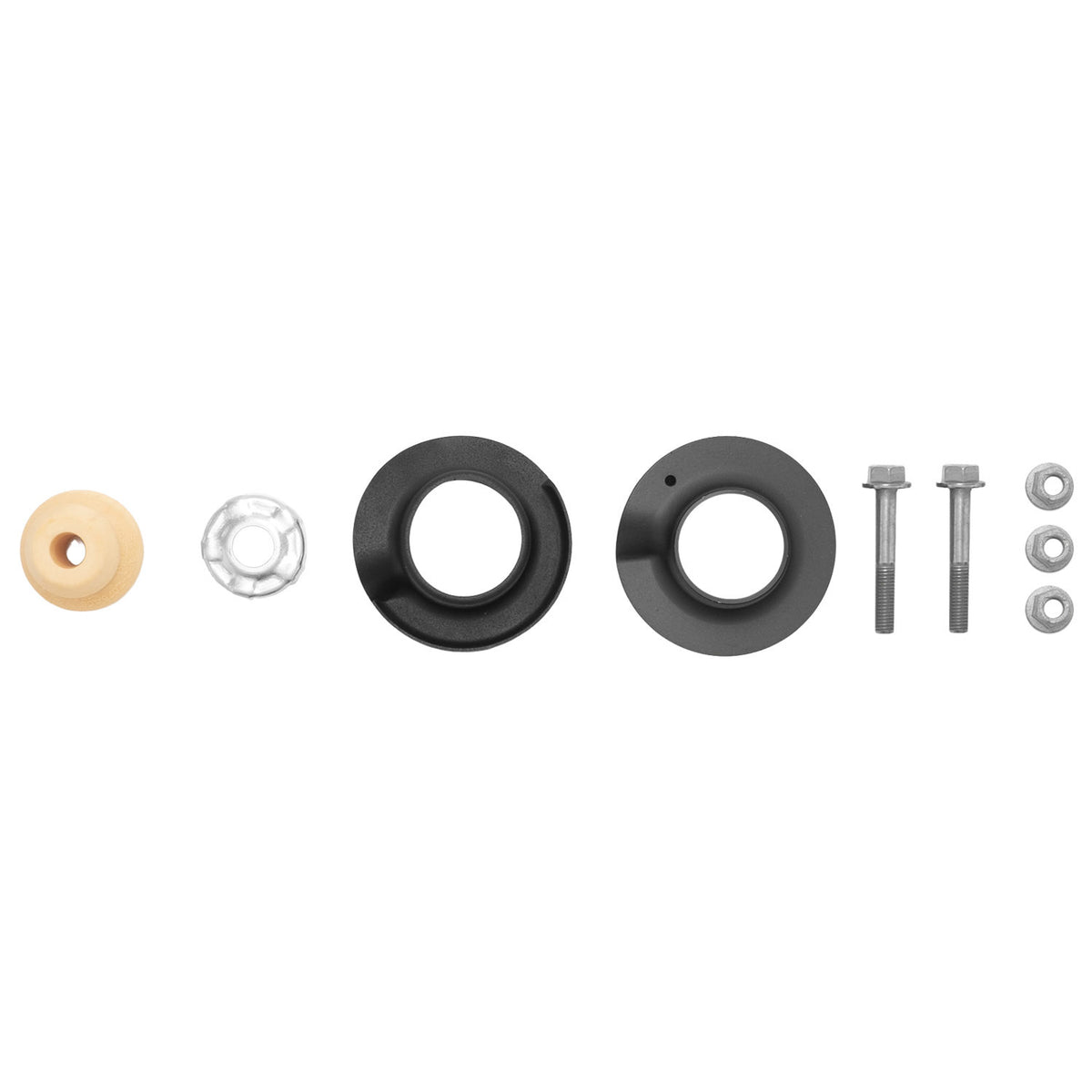

Spring Seat Included: Yes
Shaft Diameter: 18mm
Extended Length (IN): 21.3
Stroke/Travel Length (IN): 4.99
Lower Mount Type: Crossbar
Series: B8 5100 (Ride Height Adjustable)
Collapsed Length (mm): 414.3
Stroke/Travel Length (mm): 127.7
Upper Mount Type: Stem
PartType: Shocks / Struts
Internal Design: Monotube
Extended Length (mm): 542.0
Collapsed Length (IN): 16.31
Reservoir: No
Boot Included: No
