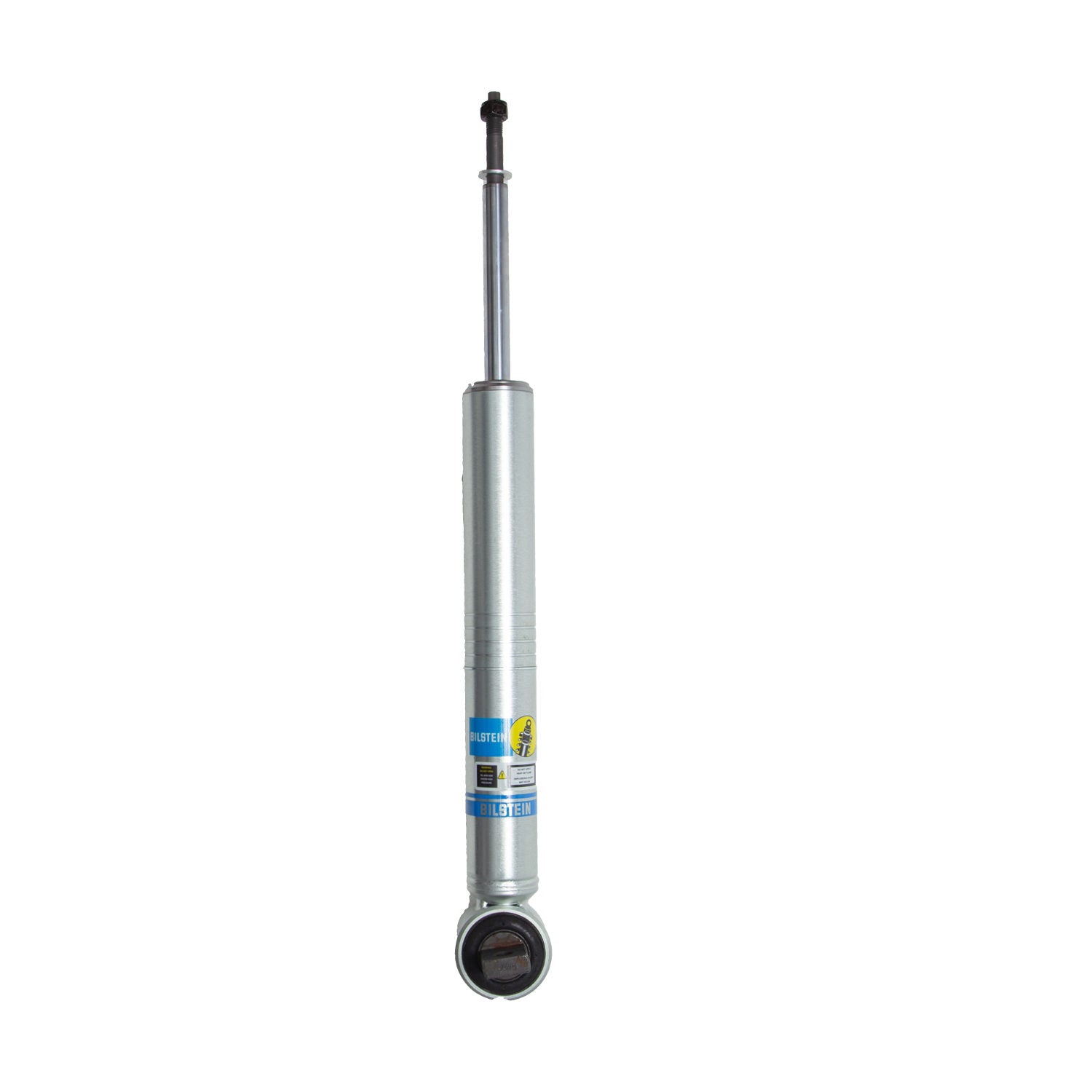

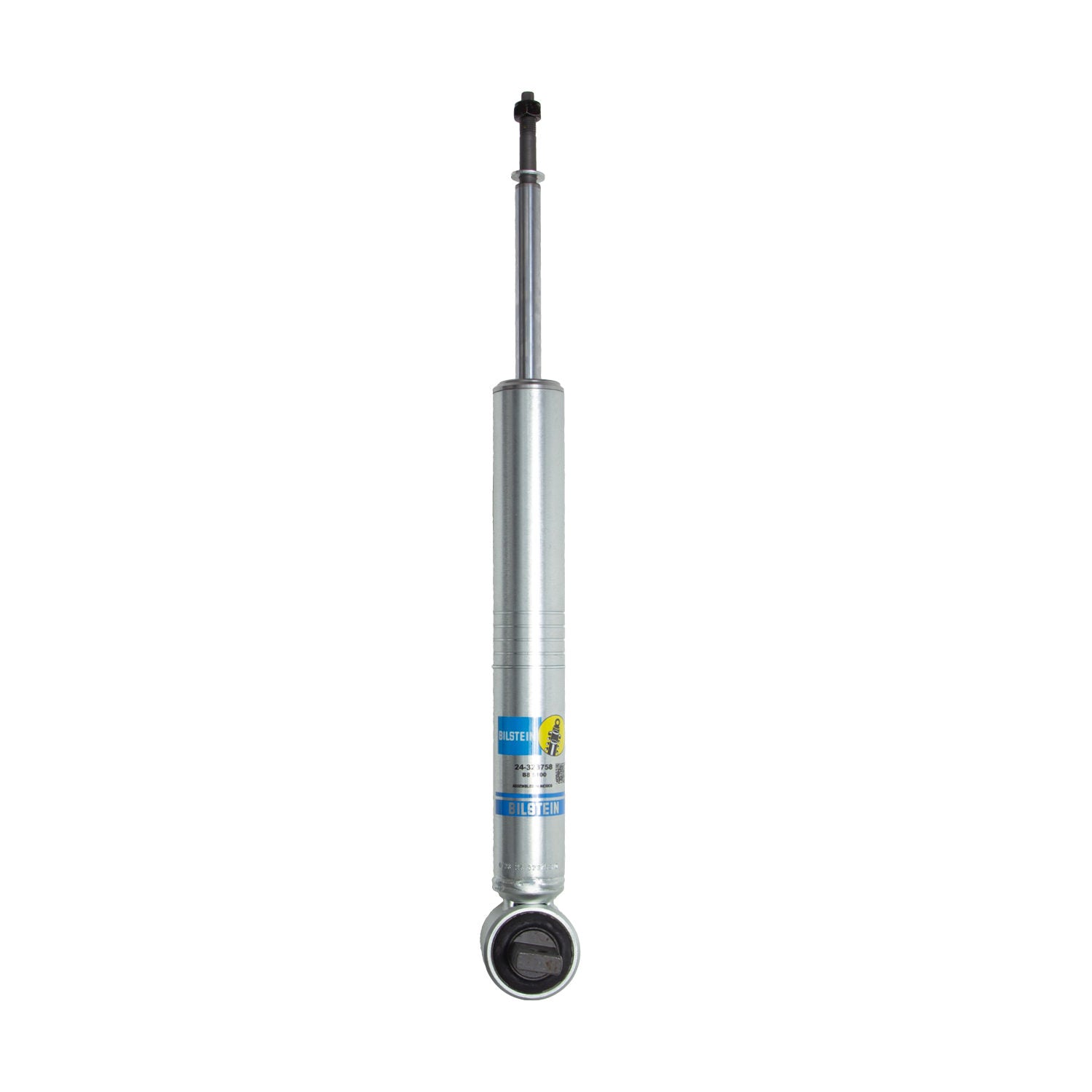

Bilstein 24-323758 - Ford F-150 2023-2021 B8 5100 (Ride Height Adjustable) Shock Absorber - Front

Bilstein 24-323758 - Ford F-150 2023-2021 B8 5100 (Ride Height Adjustable) Shock Absorber - Front

Bilstein | 24-323758
SKU: BIL-24-323758
Regular price $0.00 USD
Regular price $0.00 USD Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

Bilstein 24-323758 - Ford F-150 2023-2021 B8 5100 (Ride Height Adjustable) Shock Absorber - Front

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
Collapsed Length (IN): 15.63
Spring Seat Included: No
Adjustable Damping: Non-Adjustable
Internal Design: Monotube
Body Design: Snap Ring Grooved Body (Coilover)
Extended Length (MM): 533.5
PartType: Shocks / Struts
Upper Mount Type: Stem
Series: B8 5100 (Ride Height Adjustable)
Stroke/Travel Length (IN): 5.37
Stroke/Travel Length (mm): 136.4
Collapsed Length (MM): 397.0
Reservoir: No
Boot Included: No
Lower Mount Type: Crossbar
Shaft Diameter: 18mm
Finish: Zinc Plated
Piston Diameter: 46mm
Segment: Light Truck
Extended Length (IN): 21.00
