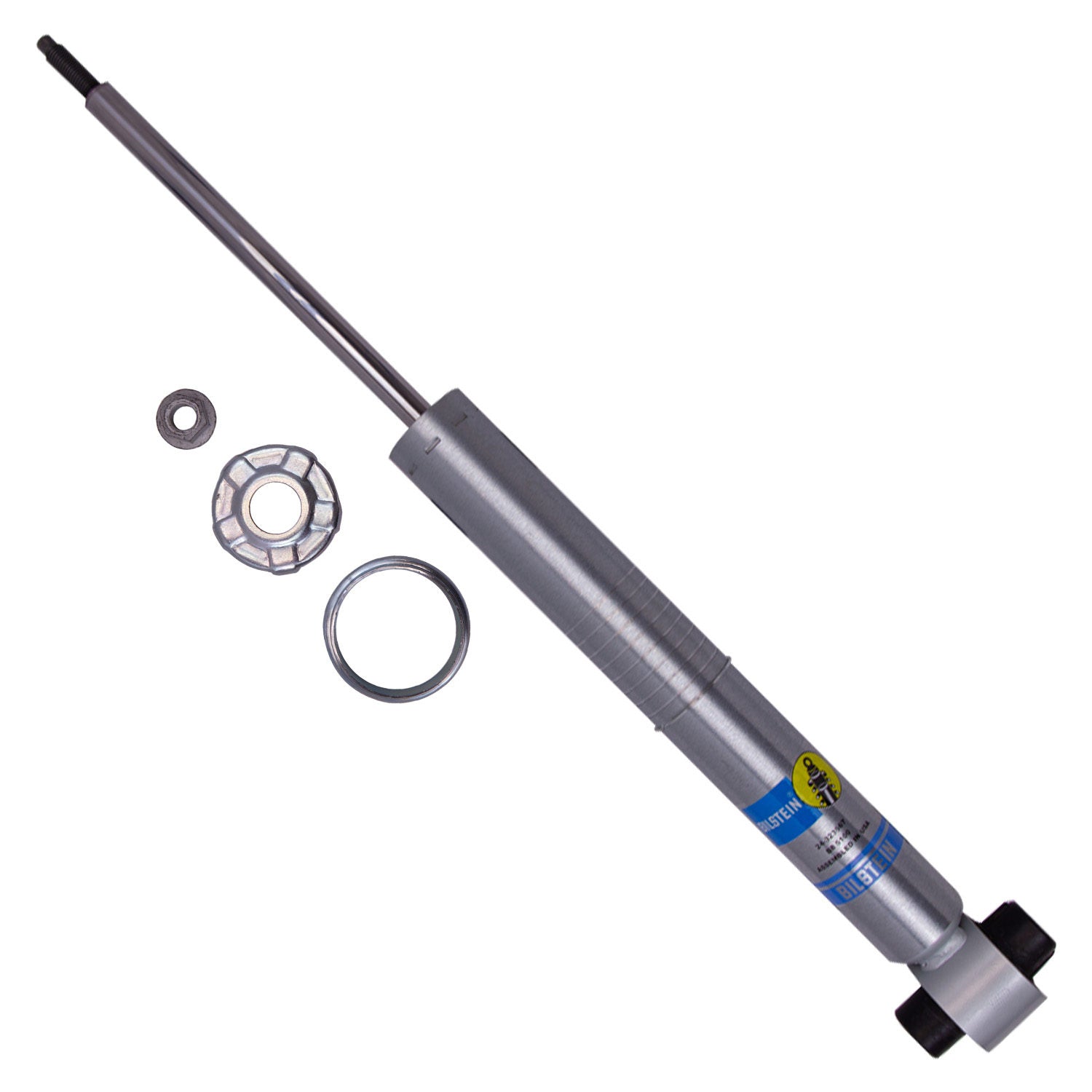

Bilstein - 24-323567
B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
46mm Monotube Shock Absorber
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with an OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
Adjustable Damping: Non-Adjustable
Finish: Zinc Plated
Collapsed Length (MM): 434.6
Lower Mount Type: Eye 20.2mm
Series: B8 5100 (Ride Height Adjustable)
Extended Length (MM): 649.3
Internal Design: Monotube
Segment: Light Truck
Collapsed Length (IN): 17.11
Boot Included: No
PartType: Shocks / Struts
Body Diameter (ID): 46mm
Extended Length (IN): 25.56
Upper Mount Type: Stem
Body Design: Snap Ring Grooved Body (Coilover)
Spring Seat Included: No - Reuse OEM
Reservoir: No
