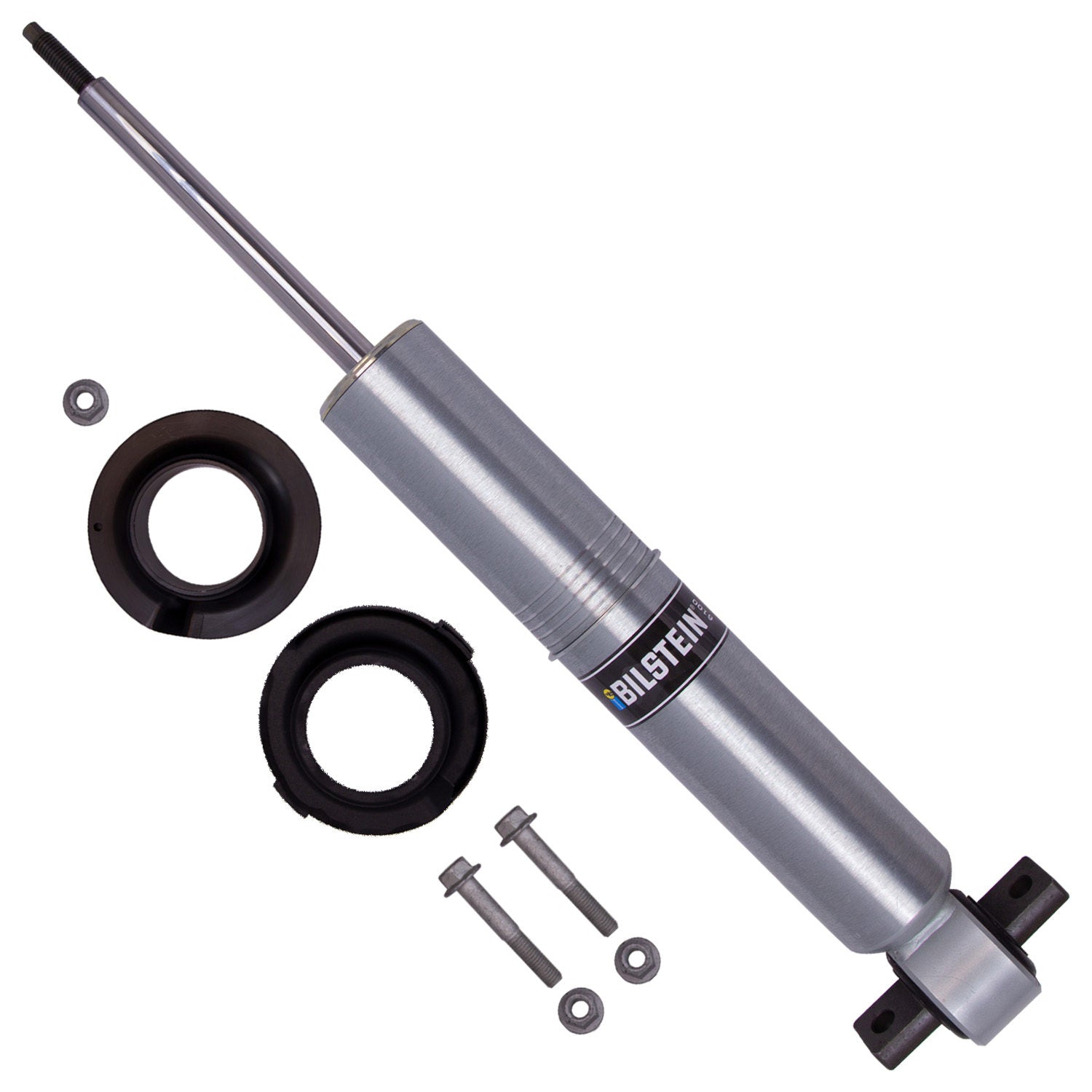

Bilstein - 24-318594
B8 6100 (Ride Height Adjustable) - Suspension Shock Absorber
60mm Monotube Shock Absorber
Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- 60mm digressive piston improves ride comfort and control over rough terrain
PartType: Shocks / Struts

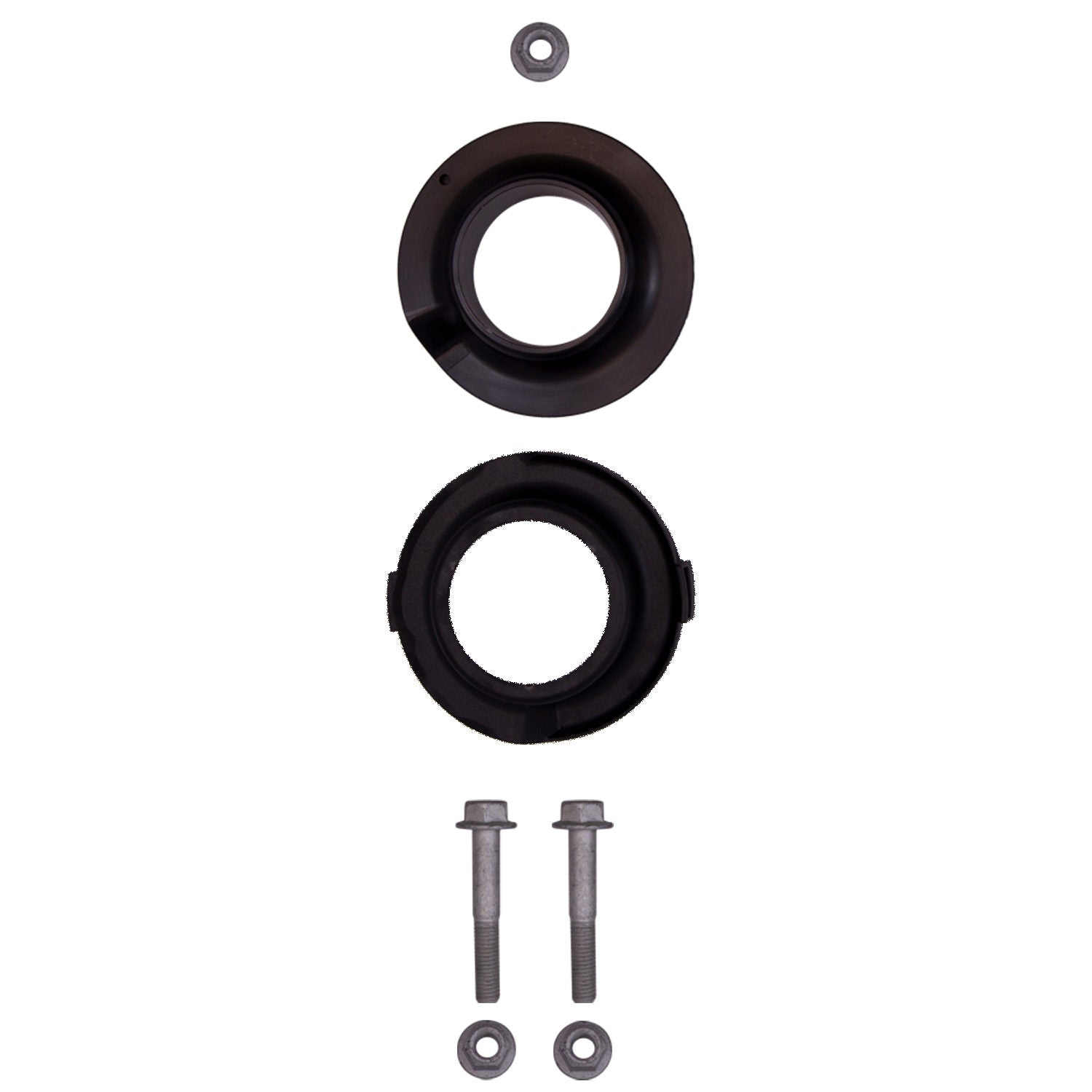

Spring Seat Included: Yes
Extended Length (IN): 22.80
Extended Length (MM): 579.2
Collapsed Length (IN): 16.62
Upper Mount Type: Stem
Collapsed Length (MM): 422.2
Body Diameter (ID): 60mm
Adjustable Damping: Non-Adjustable
Lower Mount Type: Crossbar
Finish: Zinc Plated
Body Design: Snap Ring Grooved Body (Coilover)
Internal Design: Monotube
Reservoir: No
Boot Included: No
Series: B8 6100 (Ride Height Adjustable)
Segment: Light Truck
