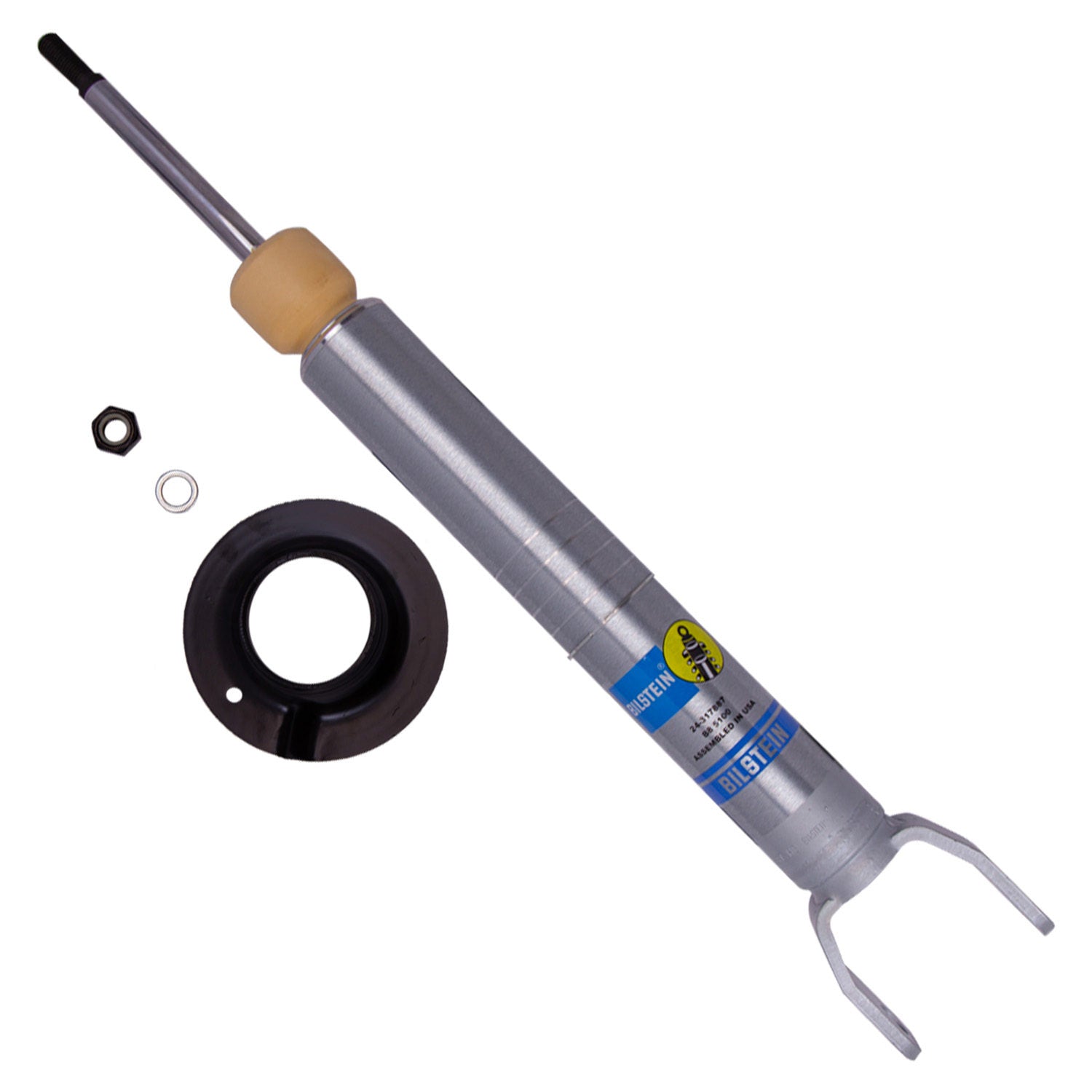

Bilstein 24-317887 - 09-18 Ram 1500 4WD B8 5100 Series Front 46mm Monotube Shock Absorber

Bilstein 24-317887 - 09-18 Ram 1500 4WD B8 5100 Series Front 46mm Monotube Shock Absorber

Bilstein | 24-317887
SKU: BIL-24-317887
Regular price $176.00 USD
Regular price $245.85 USD Sale price $176.00 USD
Sale Sold out
Shipping calculated at checkout.

102 in stock

Quantity

Bilstein 24-317887 - 09-18 Ram 1500 4WD B8 5100 Series Front 46mm Monotube Shock Absorber

Shock - B8 5100 Series - Monotube - Steel - Zinc Plated - Front - Dodge Ram Fullsize Truck 2009-24 - Each

46mm Monotube Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
Collapsed Length (IN): 15.12

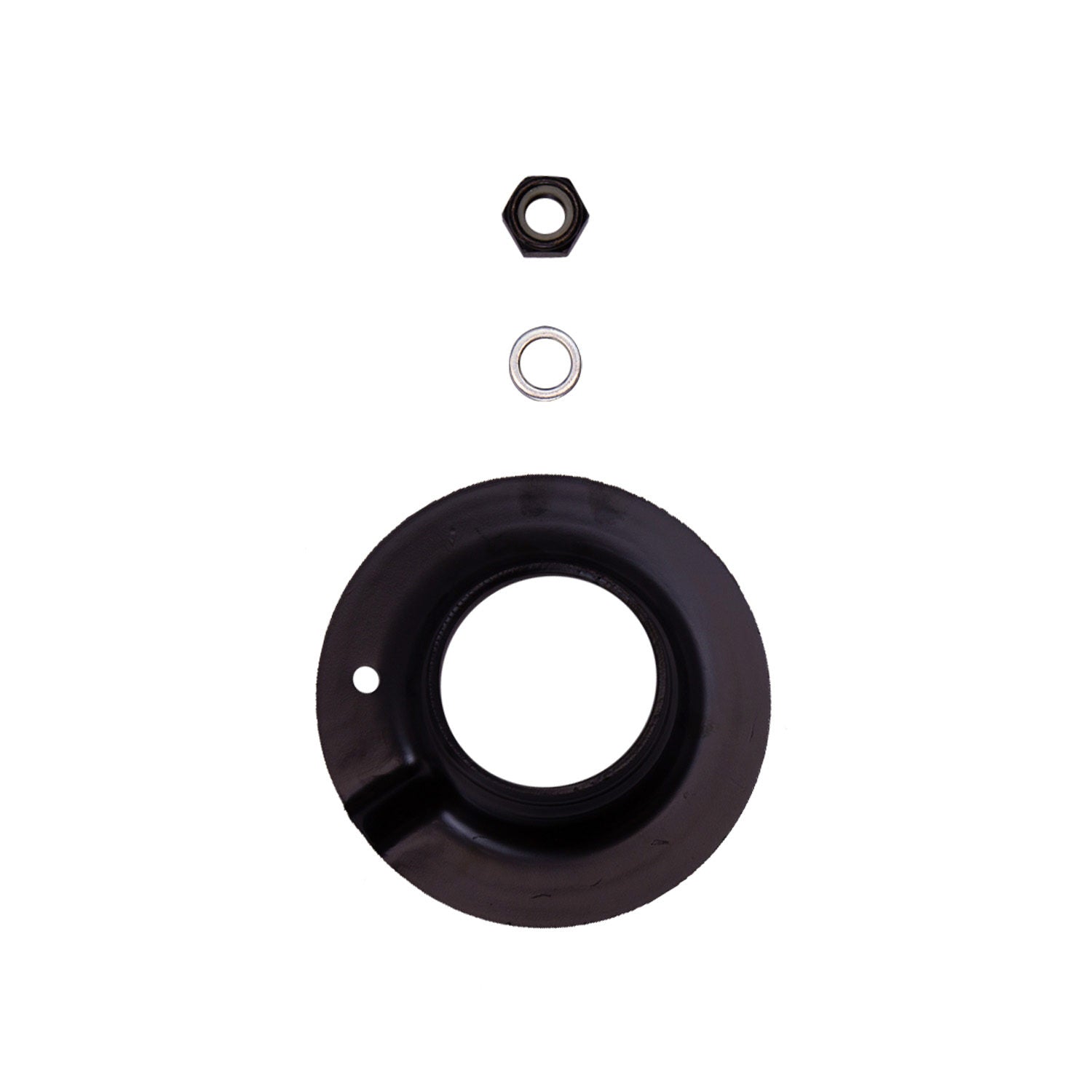

Spring Seat Included: Yes
Adjustable Damping: Non-Adjustable
Internal Design: Monotube
Body Design: Snap Ring Grooved Body (Coilover)
Extended Length (MM): 545.2
PartType: Shocks / Struts
Upper Mount Type: Stem
Series: B8 5100 (Ride Height Adjustable)
Stroke/Travel Length (IN): 6.34
Stroke/Travel Length (mm): 161.0
Collapsed Length (MM): 384.0
Reservoir: No
Boot Included: No
Lower Mount Type: Clevis
Shaft Diameter: 14mm
Finish: Zinc Plated
Piston Diameter: 46mm
Segment: Light Truck
Extended Length (IN): 21.46
