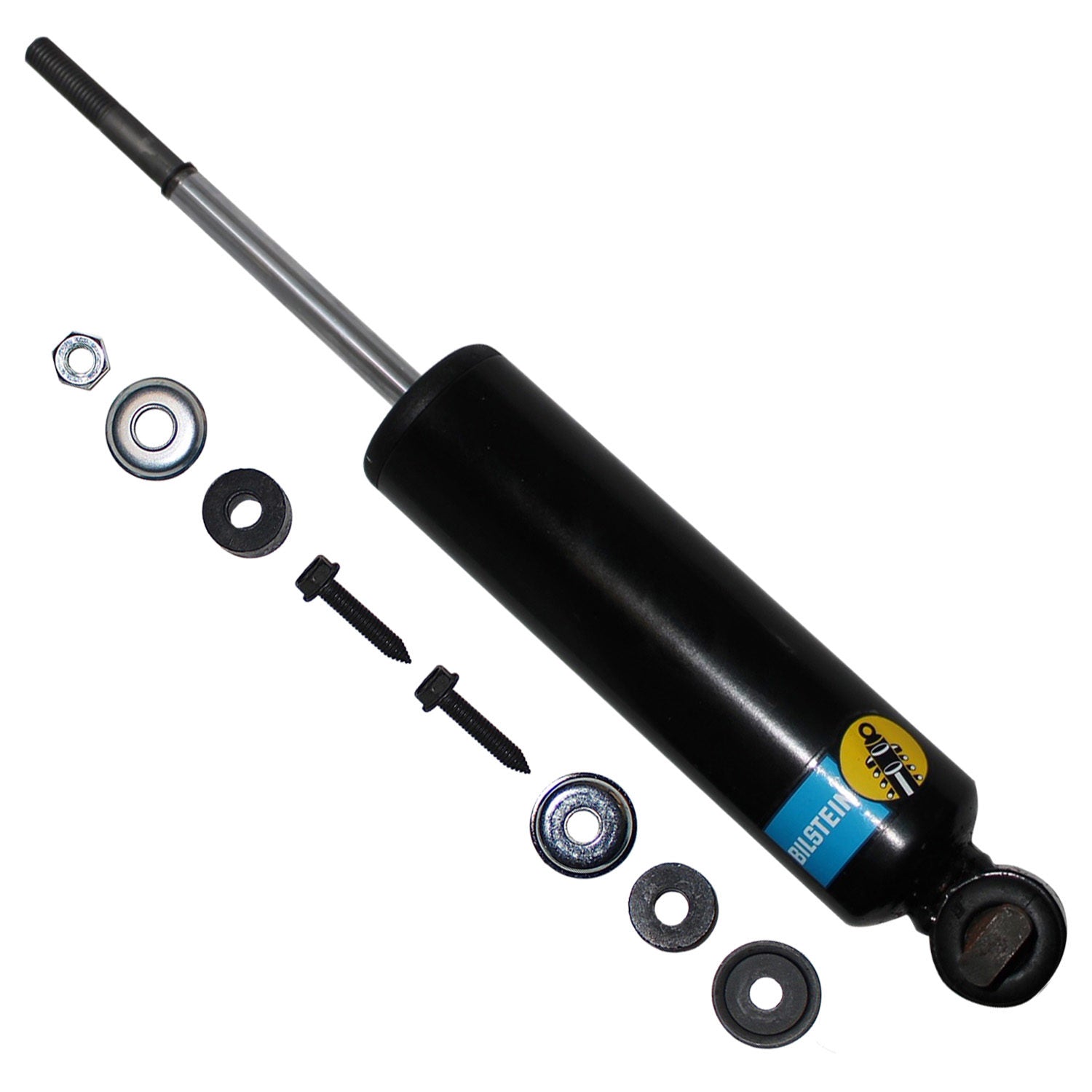

Bilstein 24-296809 - GM Metric Front 4/10 Valving 46mm Monotube SMX Series Shock - Black

Bilstein 24-296809 - GM Metric Front 4/10 Valving 46mm Monotube SMX Series Shock - Black

Bilstein | 24-296809
SKU: BIL-24-296809
Regular price $179.15 USD
Regular price $197.06 USD Sale price $179.15 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Bilstein 24-296809 - GM Metric Front 4/10 Valving 46mm Monotube SMX Series Shock - Black

SMX Series - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein SMX Series shock absorbers are specifically designed for motorsports applications that mandate the use of stock mount (OE) suspension components. Designed using 46mm monotube technology, the shocks are available in a variety of damping options including dry kit designed specifically to provide the best options for a variety of race track types and conditions. Built in the USA with precision components and top quality controls, the SMX Series shocks deliver Bilstein’s famous fade-free performance and consistency in a factory-mount package that championship winning racers demand.

  • Stock mount design for GM metric chassis applications
  • 46mm piston design for maximum damping control
  • A wide range of valving choices available for endless tuning combinations
Spring Seat Included: No
Collapsed Length (IN): 8.27
Adjustable Damping: Non-Adjustable
Internal Design: Monotube
Body Design: Stock Mount Smooth Body
Extended Length (MM): 305.0
PartType: Shocks / Struts
Upper Mount Type: Stem
Series: SMX Series
Stroke/Travel Length (IN): 3.74
Stroke/Travel Length (mm): 95.0
Body Material: Steel
Collapsed Length (MM): 210.0
Rebound @ 10"/sec: 700
Boot Included: No
Compression @ 10"/sec: 225
Lower Mount Type: Bar Pin
Shaft Diameter: 11mm
Finish: Black Paint
Piston Diameter: 46mm
Segment: Motorsports
Piston Type: Linear
Spring Hardware: N/A
Extended Length (IN): 12.01
