Bilstein - 24-294225

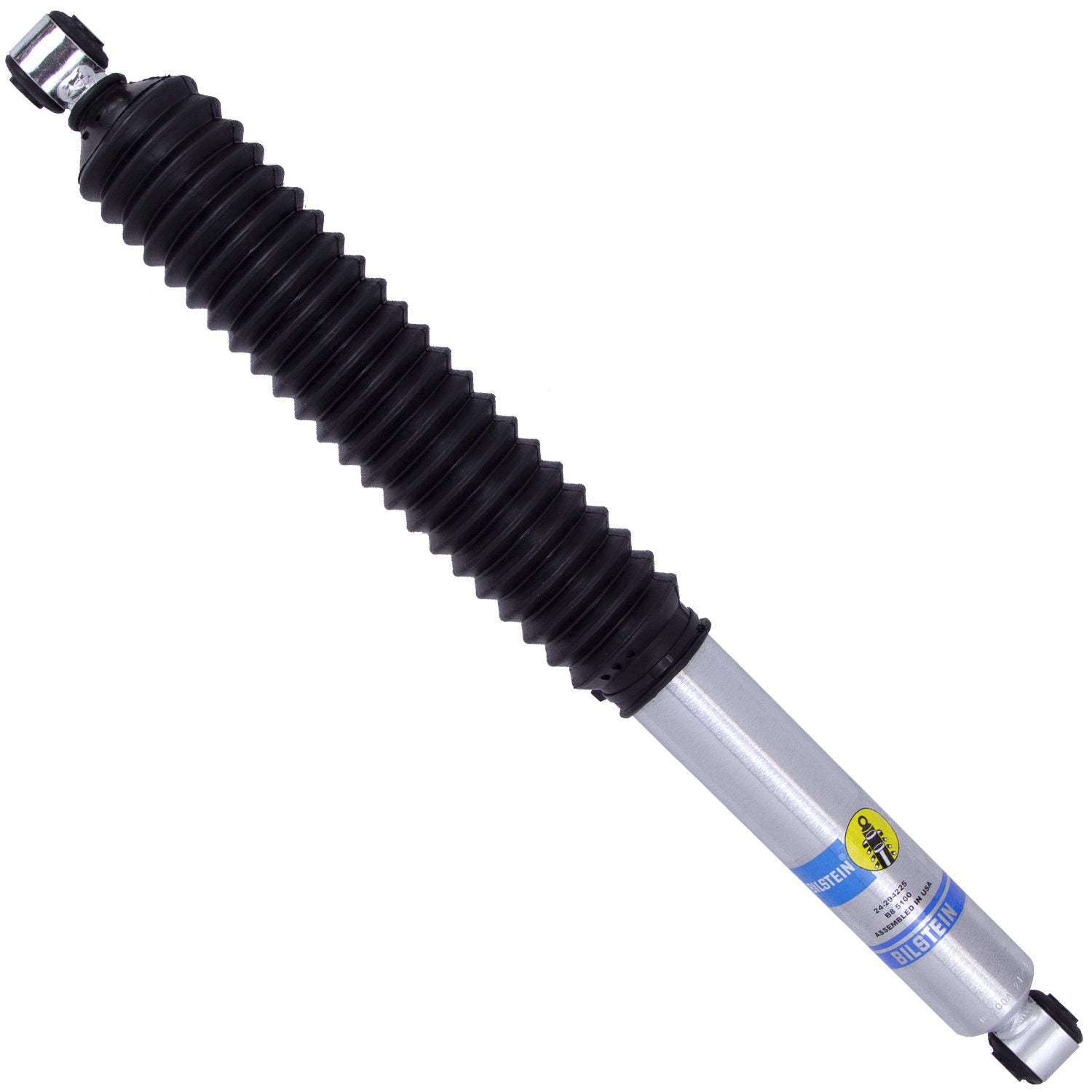

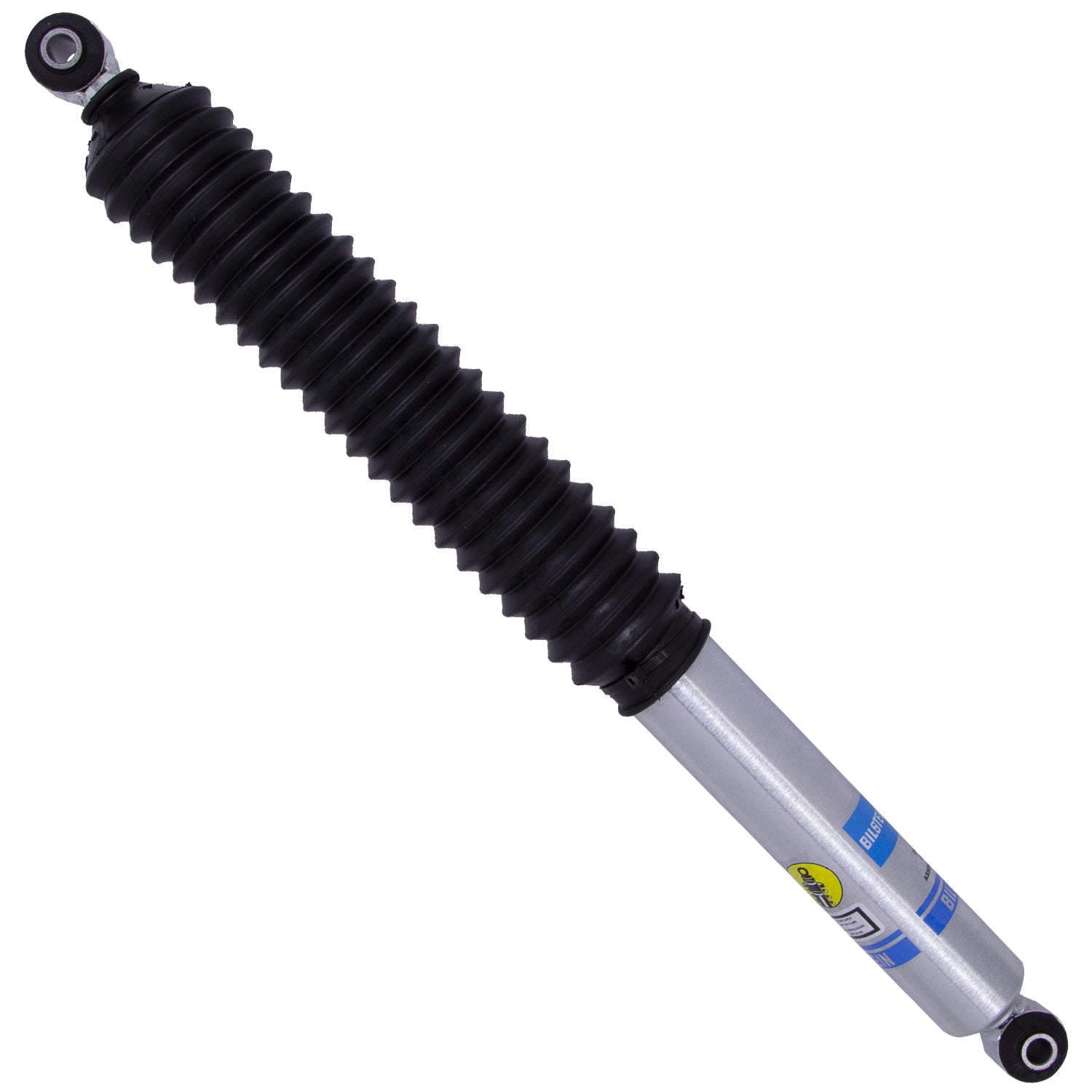

B8 5100 - Suspension Shock Absorber
46mm Monotube Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Patented digressive valving instantly reacts to changing surface conditions
Segment: Light Truck
Upper Mount Type: Eye 12.1mm
Lower Mount Type: Eye 12.1mm
Adjustable Damping: Non-Adjustable
Boot Included: Black Bellows
Finish: Zinc Plated
Collapsed Length (MM): 395.0
Body Diameter (ID): 46mm
Internal Design: Monotube
Extended Length (MM): 627.7
Series: B8 5100
Reservoir: No
Extended Length (IN): 24.71
Body Design: Smooth Body (Non-coilover)
Spring Seat Included: No
Collapsed Length (IN): 15.55
PartType: Shocks / Struts
