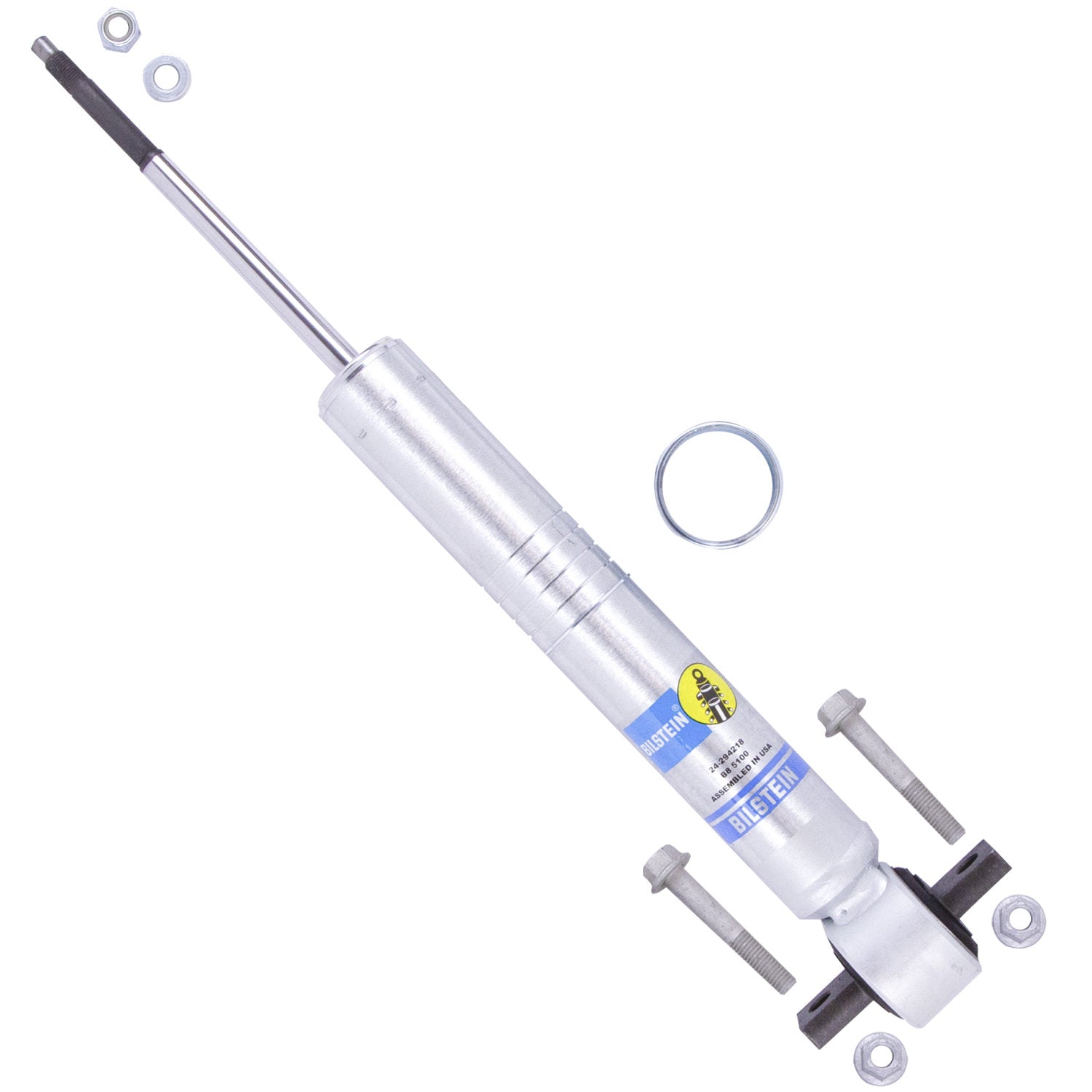

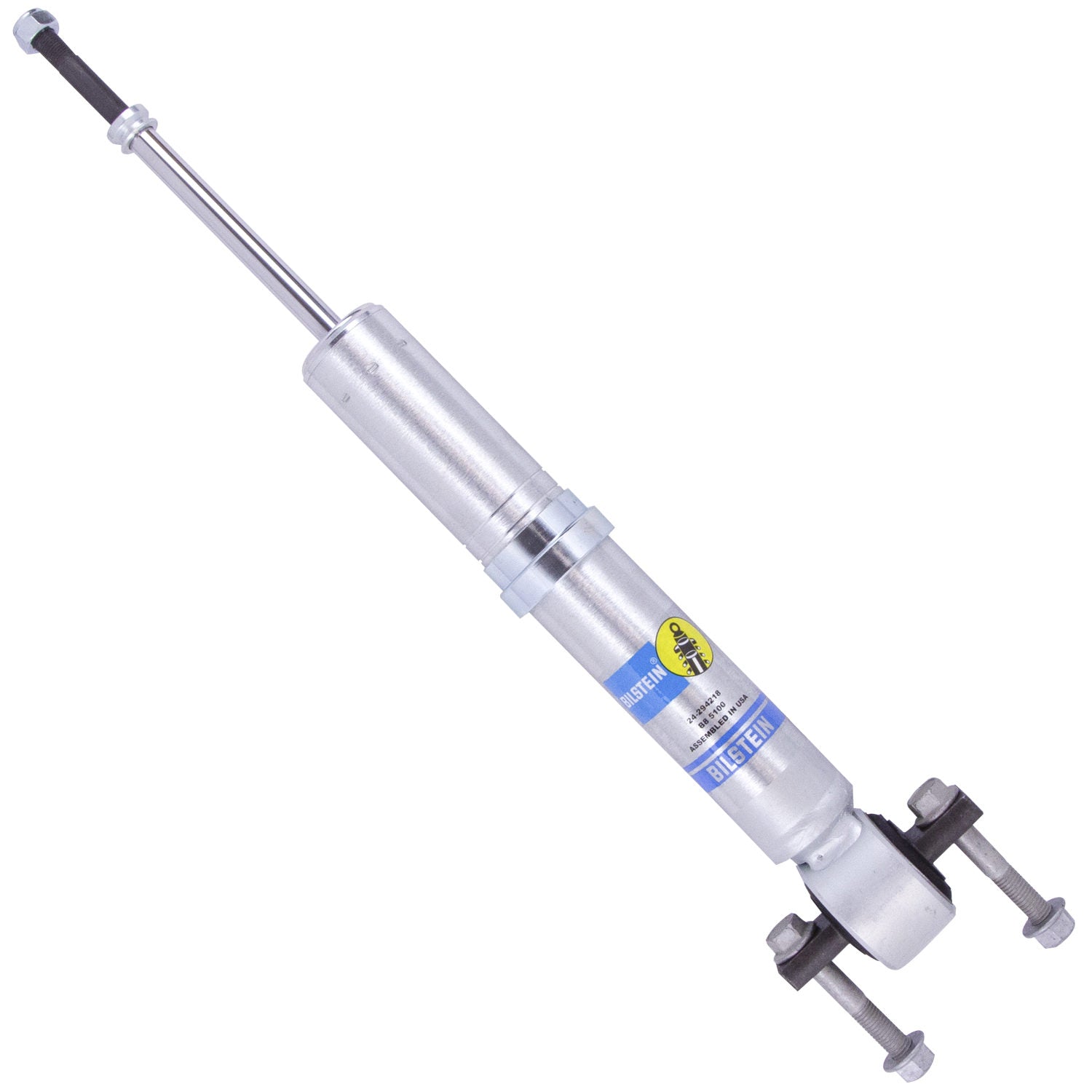

Bilstein - 24-294218
B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
46mm Monotube Shock Absorber
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
PartType: Shocks / Struts
Segment: Light Truck
Collapsed Length (MM): 370.5
Adjustable Damping: Non-Adjustable
Series: B8 5100 (Ride Height Adjustable)
Extended Length (IN): 19.26
Extended Length (MM): 489.2
Spring Seat Included: No - Reuse OEM
Collapsed Length (IN): 14.59
Reservoir: No
Lower Mount Type: Crossbar
Boot Included: No
Upper Mount Type: Stem
Body Diameter (ID): 46mm
Body Design: Snap Ring Grooved Body (Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Year
Make
Model
Submodel
Engine
2019 - 2023
Ford
Ranger
Lariat
2.3L
2022
Ford
Ranger
XL
2.2L
2019 - 2023
Ford
Ranger
XL
2.3L
2019 - 2022
Ford
Ranger
XL
2.5L
2023
Ford
Ranger
XLT
2.0L
2021
Ford
Ranger
XLT
2.2L
2019 - 2023
Ford
Ranger
XLT
2.3L
2019 - 2022
Ford
Ranger
XLT
2.5L
2019 - 2022
Ford
Ranger
XLT
3.2L
