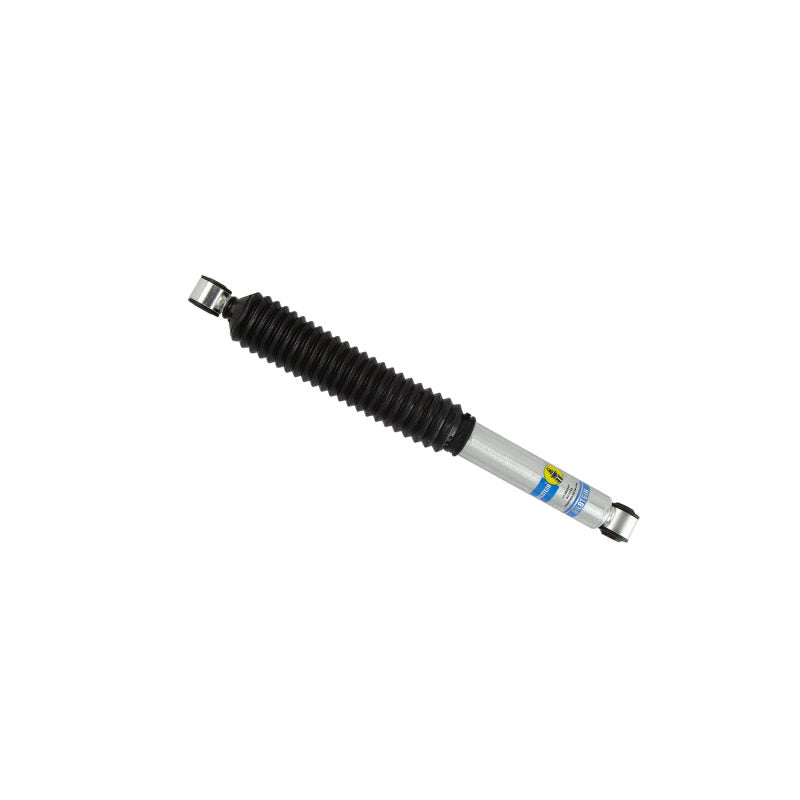

Bilstein 24-288347 - 5100 Series 17-19 Nissan Titan Rear Shock Absorber

Bilstein 24-288347 - 5100 Series 17-19 Nissan Titan Rear Shock Absorber

Bilstein | 24-288347
SKU: BIL-24-288347
Regular price $123.00 USD
Regular price $171.85 USD Sale price $123.00 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

Quantity

Bilstein 24-288347 - 5100 Series 17-19 Nissan Titan Rear Shock Absorber

B8 5100 - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Boot Included: Black Bellows
Series: B8 5100
Adjustable Damping: Non-Adjustable
Stroke/Travel Length (mm): 220.2
Piston Diameter: 46mm
Collapsed Length (IN): 15.94
Spring Seat Included: No
Collapsed Length (MM): 405.0
Finish: Zinc Plated
Extended Length (IN): 24.61
Stroke/Travel Length (IN): 8.67
PartType: Shocks / Struts
Lower Mount Type: Eye 14mm
Upper Mount Type: Eye 14mm
Reservoir: No
Body Design: Smooth Body (Non-coilover)
Shaft Diameter: 14mm
Segment: Light Truck
Internal Design: Monotube
Extended Length (MM): 625.2
