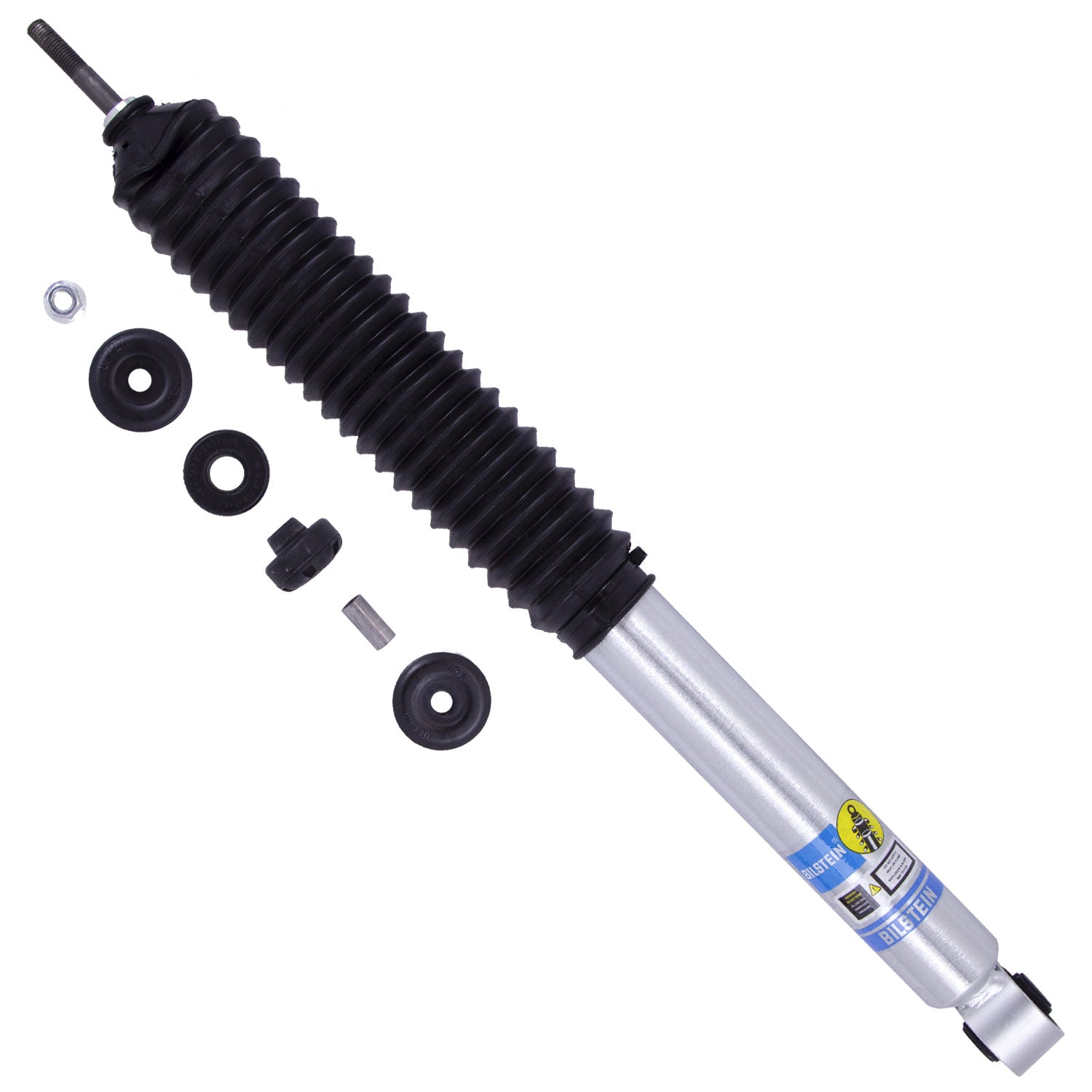

Bilstein - 24-285674
B8 5100 - Suspension Shock Absorber
46mm Monotube Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Patented digressive valving instantly reacts to changing surface conditions
Finish: Zinc Plated
Body Design: Smooth Body (Non-coilover)
Spring Seat Included: No
Collapsed Length (IN): 16.57
Extended Length (MM): 647.0
Extended Length (IN): 25.47
Lower Mount Type: Eye 14.1mm
Upper Mount Type: Stem
Series: B8 5100
Reservoir: No
Internal Design: Monotube
Adjustable Damping: Non-Adjustable
Collapsed Length (MM): 421.0
Body Diameter (ID): 46mm
Segment: Light Truck
PartType: Shocks / Struts
Boot Included: Black Bellows
