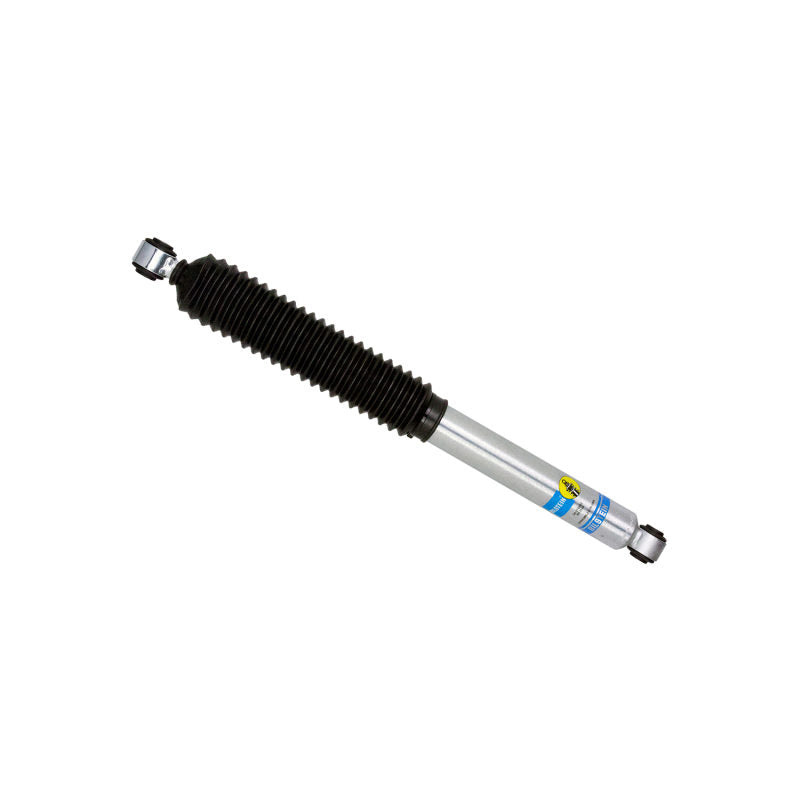

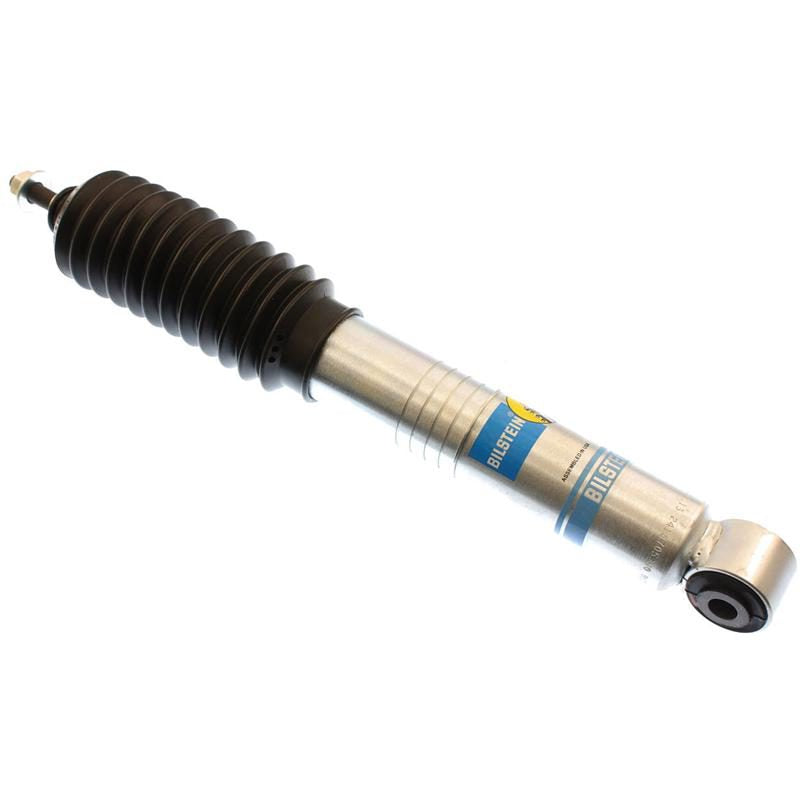

Bilstein 24-275002 - 5100 Series 11-17 Dodge Ram 1500 Rear Shock Absorber

Bilstein 24-275002 - 5100 Series 11-17 Dodge Ram 1500 Rear Shock Absorber

Bilstein | 24-275002
SKU: BIL-24-275002
Regular price $123.00 USD
Regular price $171.85 USD Sale price $123.00 USD
Sale Sold out
Shipping calculated at checkout.

21 in stock

Quantity

Bilstein 24-275002 - 5100 Series 11-17 Dodge Ram 1500 Rear Shock Absorber

B8 5100 - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning
Finish: Zinc Plated
Boot Included: Black Bellows
Adjustable Damping: Non-Adjustable
Lower Mount Type: Eye 14.2mm
Stroke/Travel Length (mm): 243.8
Piston Diameter: 46mm
Segment: Light Truck
Spring Seat Included: No
Internal Design: Monotube
Extended Length (MM): 662.2
Extended Length (IN): 26.07
Series: B8 5100
Stroke/Travel Length (IN): 9.60
PartType: Shocks / Struts
Upper Mount Type: Eye 14.2mm
Reservoir: No
Body Design: Smooth Body (Non-Coilover)
Shaft Diameter: 14mm
Collapsed Length (IN): 16.44
Collapsed Length (MM): 417.5
