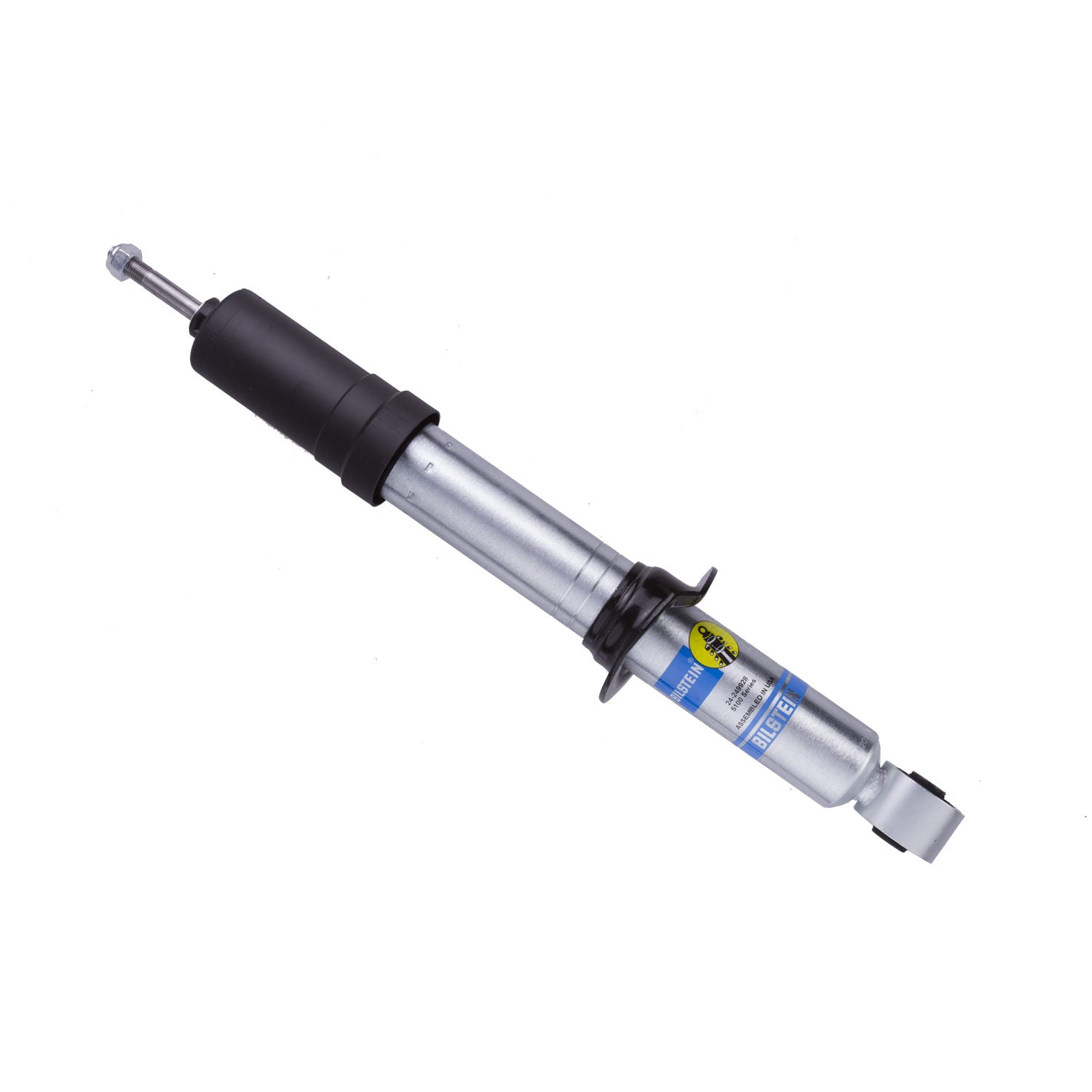

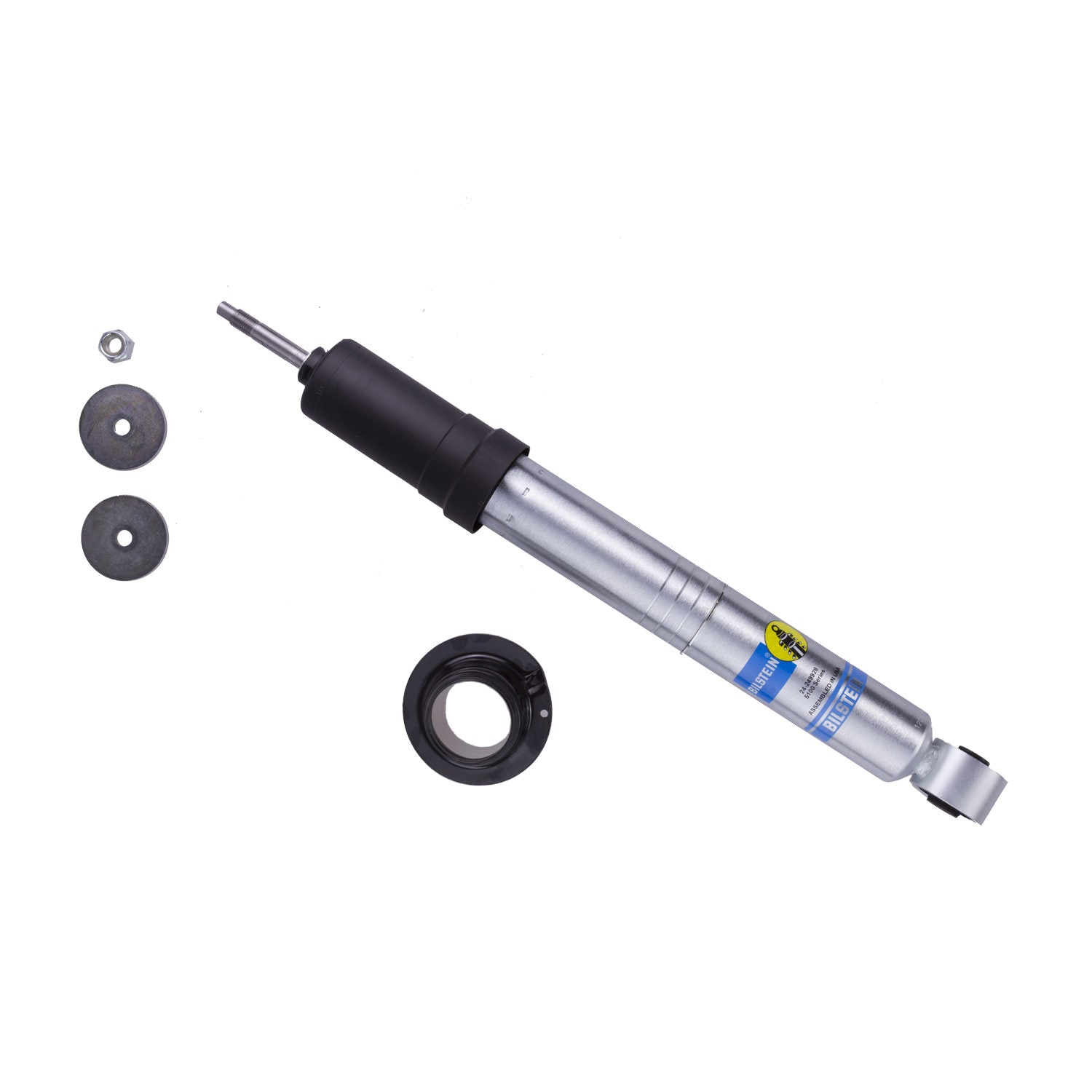

Bilstein 24-249928 - 5100 Series 96-04 Toyota Tacoma Front 46mm Monotube Shock Absorber

Bilstein 24-249928 - 5100 Series 96-04 Toyota Tacoma Front 46mm Monotube Shock Absorber

Bilstein | 24-249928
SKU: BIL-24-249928
Regular price $176.00 USD
Regular price $245.85 USD Sale price $176.00 USD
Sale Sold out
Shipping calculated at checkout.

109 in stock

Quantity

Bilstein 24-249928 - 5100 Series 96-04 Toyota Tacoma Front 46mm Monotube Shock Absorber

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
Internal Design: Monotube
Body Design: Snap Ring Grooved Body (Coilover)
Extended Length (MM): 474.0
PartType: Shocks / Struts
Upper Mount Type: Stem
Series: B8 5100 (Ride Height Adjustable)
Stroke/Travel Length (IN): 4.80
Stroke/Travel Length (mm): 121.9
Collapsed Length (MM): 352.0
Reservoir: No
Boot Included: Black Straight
Finish: Zinc Plated
Lower Mount Type: Eye 14.2mm
Shaft Diameter: 14mm
Piston Diameter: 46mm
Segment: Light Truck
Extended Length (IN): 18.66
Spring Seat Included: Yes
Collapsed Length (IN): 13.86
Adjustable Damping: Non-Adjustable
