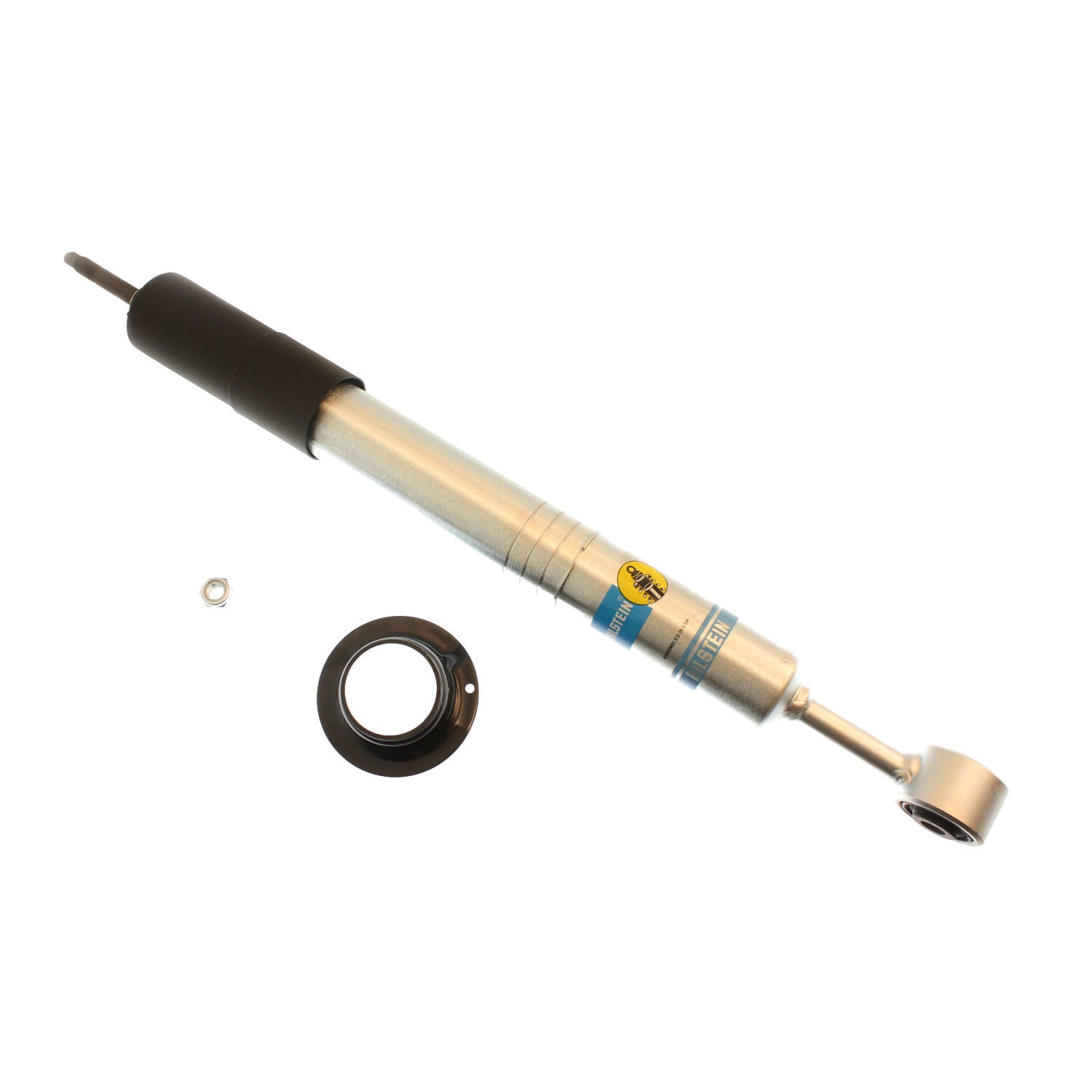

Bilstein 24-196499 - 5100 Series 2010-14 Toyota 4Runner/FJ Cruiser Front 46mm Monotube Shock Absorber

Bilstein 24-196499 - 5100 Series 2010-14 Toyota 4Runner/FJ Cruiser Front 46mm Monotube Shock Absorber

Bilstein | 24-196499
SKU: BIL-24-196499
Regular price $0.00 USD
Regular price $0.00 USD Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

Bilstein 24-196499 - 5100 Series 2010-14 Toyota 4Runner/FJ Cruiser Front 46mm Monotube Shock Absorber

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application
Series: B8 5100 (Ride Height Adjustable)
Adjustable Damping: Non-Adjustable
Collapsed Length (MM): 446.5
Piston Diameter: 46mm
Internal Design: Monotube
Finish: Zinc Plated
Stroke/Travel Length (IN): 4.90
Stroke/Travel Length (mm): 124.5
Shaft Diameter: 14mm
Extended Length (IN): 22.48
PartType: Shocks / Struts
Lower Mount Type: Eye 14.2mm
Reservoir: No
Body Design: Snap Ring Grooved Body (Coilover)

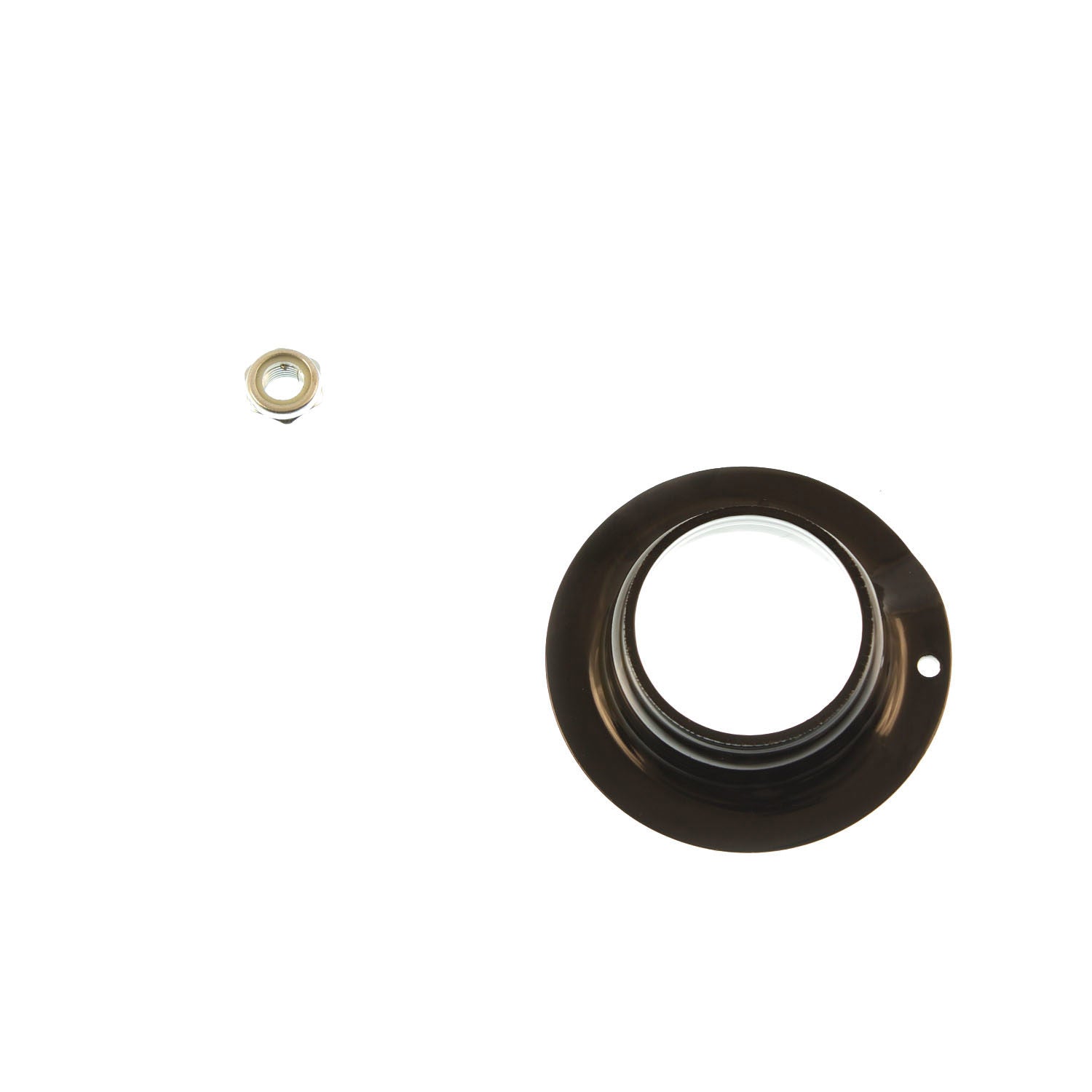

Spring Seat Included: Yes
Extended Length (MM): 571.1
Boot Included: Black Straight
Upper Mount Type: Stem
Segment: Light Truck
Collapsed Length (IN): 17.58
