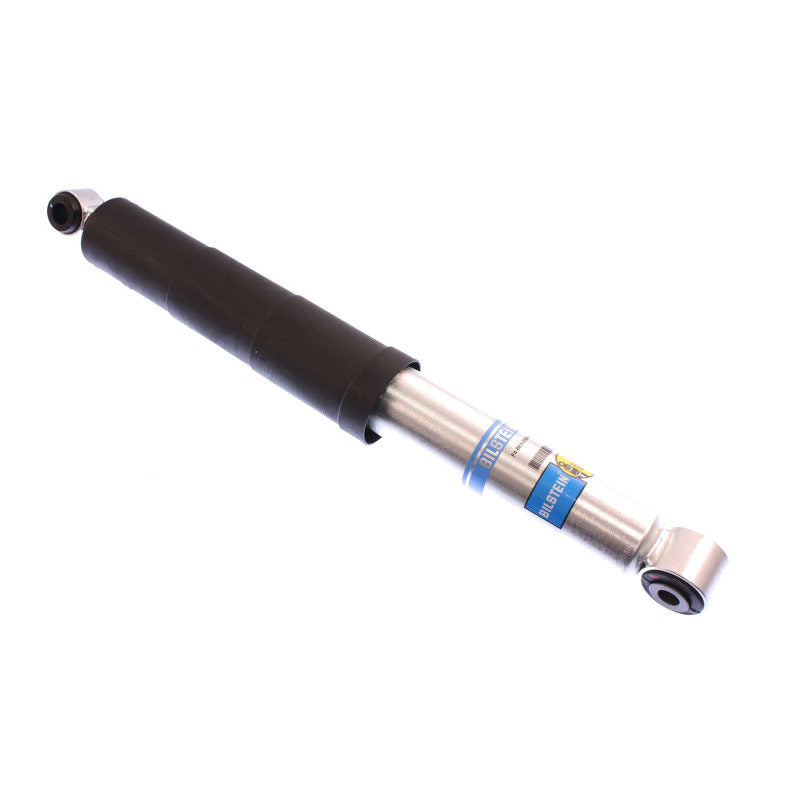

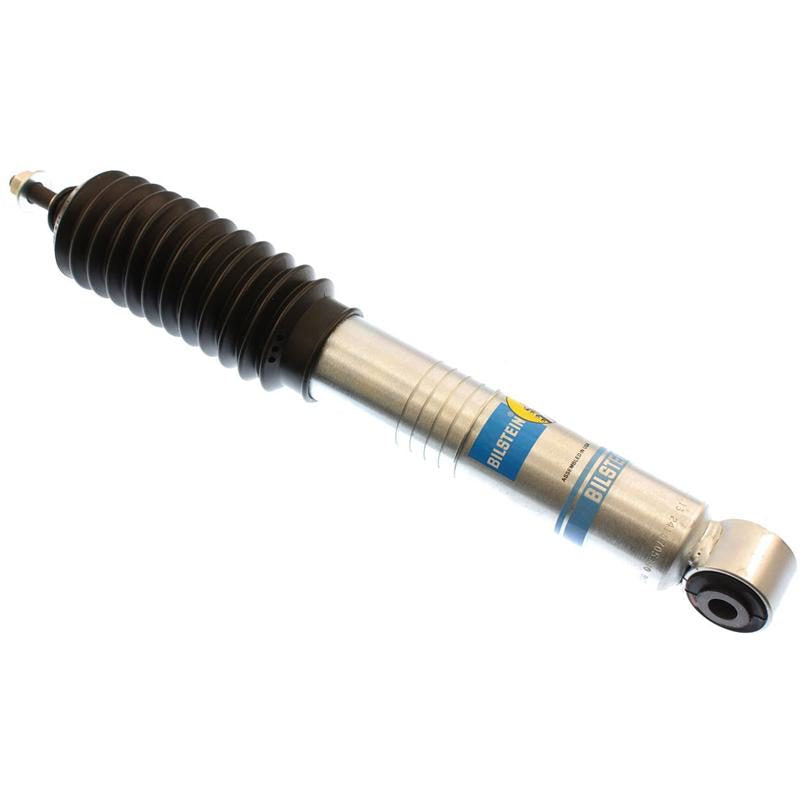

Bilstein - 24-187060
B8 5100 - Suspension Shock Absorber
46mm Monotube Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Patented digressive valving instantly reacts to changing surface conditions
Segment: Light Truck
Reservoir: No
Internal Design: Monotube
Finish: Zinc Plated
Extended Length (MM): 509.5
Lower Mount Type: Eye 14mm
Boot Included: Black Straight
Collapsed Length (MM): 325.3
Extended Length (IN): 20.06
Body Diameter (ID): 46mm
Upper Mount Type: Eye 16mm
Collapsed Length (IN): 12.81
Adjustable Damping: Non-Adjustable
Series: B8 5100
Spring Seat Included: No
Body Design: Smooth Body (Non-Coilover)
PartType: Shocks / Struts
Year
Make
Model
Submodel
Engine
2005
Nissan
Xterra
Off-Road
2.5L
2005 - 2006
Nissan
Xterra
Off-Road
4.0L
2005 - 2015
Nissan
Xterra
S
4.0L
2005 - 2010
Nissan
Xterra
SE
4.0L
2006 - 2015
Nissan
Xterra
X
4.0L
