Bilstein - 24-186766
B8 5100 - Suspension Shock Absorber

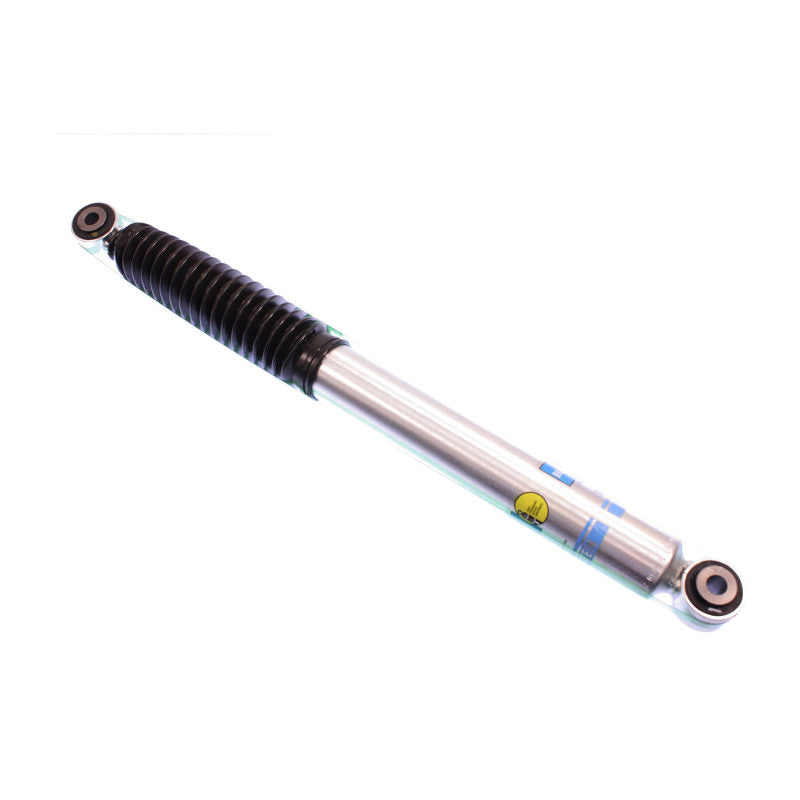

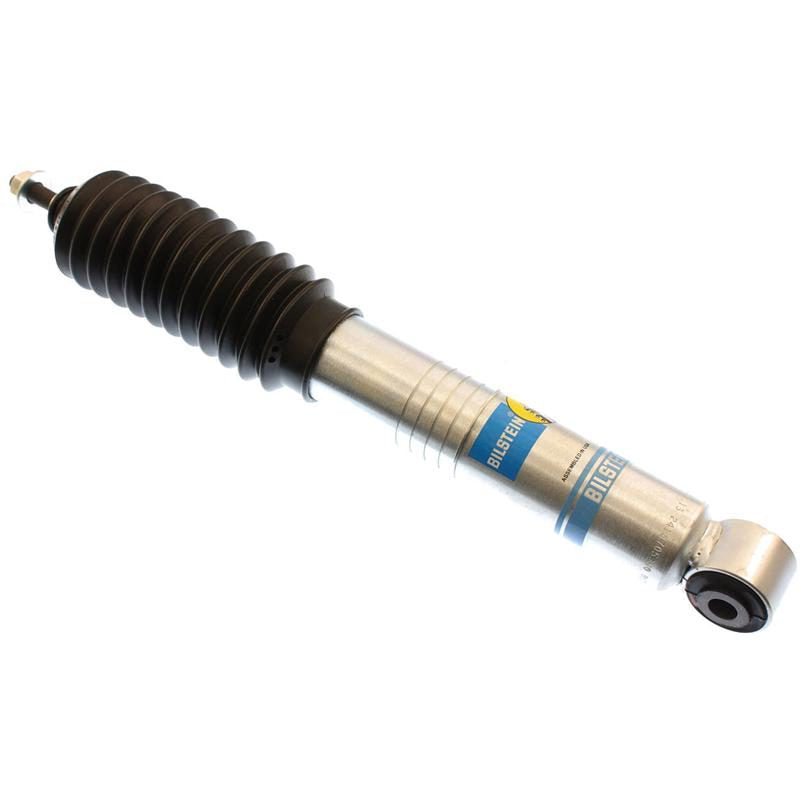

46mm Monotube Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Patented digressive valving instantly reacts to changing surface conditions
Segment: Light Truck
Internal Design: Monotube
Extended Length (MM): 635.0
Body Design: Smooth Body (Non-Coilover)
Boot Included: Black Bellows
Finish: Zinc Plated
Collapsed Length (MM): 401.0
Spring Seat Included: No
Adjustable Damping: Non-Adjustable
Lower Mount Type: Eye 14mm
Series: B8 5100
Reservoir: No
Collapsed Length (IN): 15.79
Upper Mount Type: Eye 14mm
Extended Length (IN): 25.00
Body Diameter (ID): 46mm
PartType: Shocks / Struts
