Bilstein - 24-186520

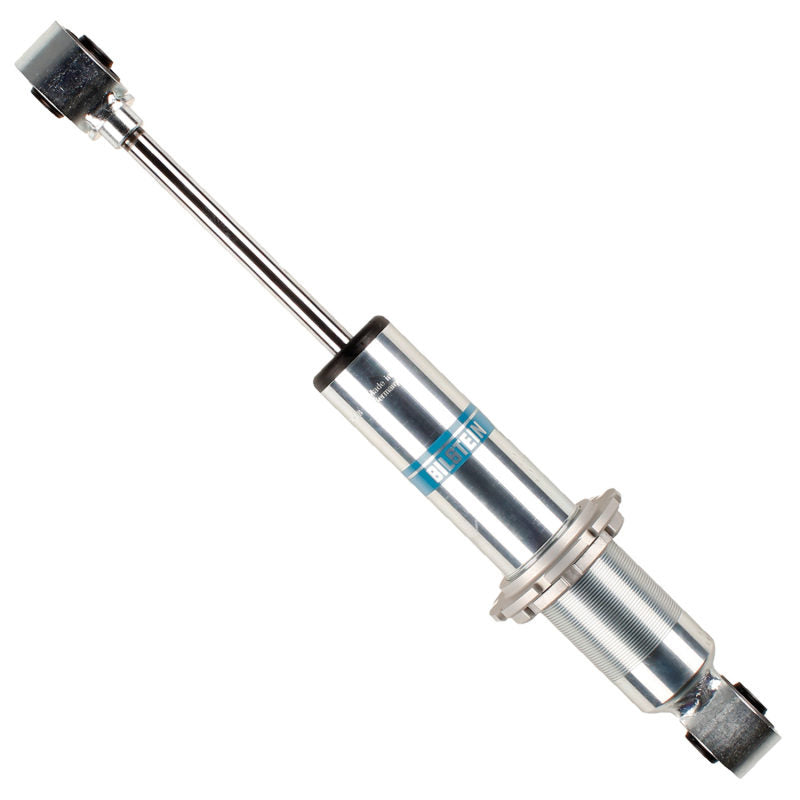

M 7100 Classic (Coilover) - Suspension Shock Absorber
46mm Monotube Shock Absorber
Bilstein M 7100 Classic (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are factory rebuildable and feature a fully threaded, non-reservoir shock body. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 Classic (Coilover) is offered in a 10 inch travel stroke and come with 2.5 inch ID single rate spring hardware. For custom, light weight applications, M7100 Classic (Coilover) will deliver reliable performance.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Available for standard and coilover applications in a wide variety of lengths
- Available for standard and coilover applications in a wide variety of lengths
Finish: Zinc Plated
Collapsed Length (MM): 313.5
Series: M 7100 Classic (Coilover)
Spring Hardware: Single Rate (2.5in)
Collapsed Length (IN): 12.34
Body Diameter (ID): 46mm
Lower Mount Type: Eye 14.2mm
Collapsed Length (IN) Rounded: 12
Optional Reservoir Clamp: N/A
Extended Length (MM): 463.0
Segment: Motorsports
Extended Length (IN): 18.22
Rebound @0.52m/s: 3030
Extended Length (IN) Rounded: 18
Mount Type: Eye-to-Eye
Reservoir: No
Internal Design: Monotube
Upper Mount Type: Eye 14.2mm
Compression @0.52m/s: 965
Body Design: Threaded Body (Coilover)
Spring Seat Included: Lower
PartType: Shocks / Struts
