BDS Suspension - FOX98502133

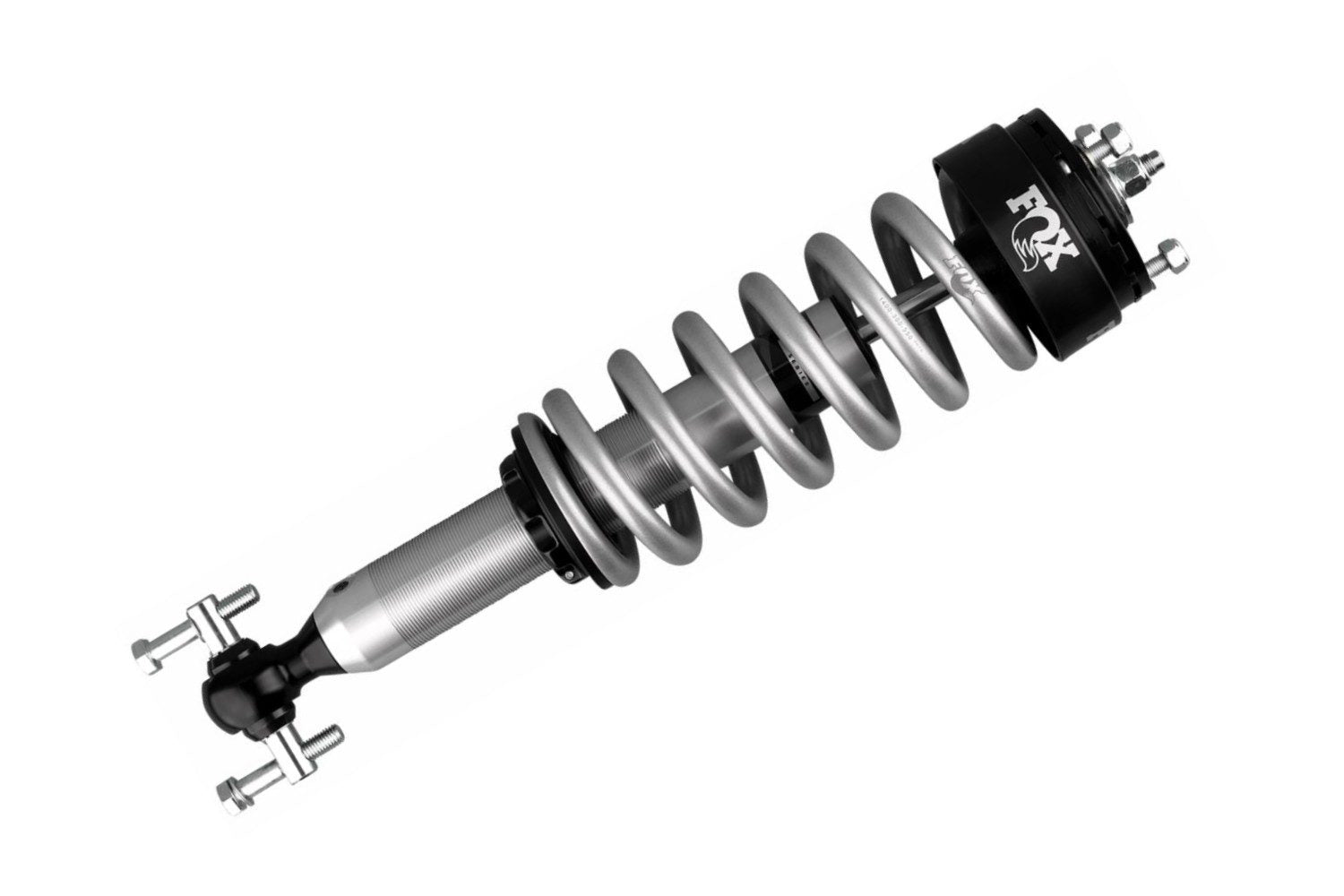

19-ON Ford Ranger front coilover PS 2.0 IFP 4.5in. 0-3in. Lift
Locking spring preload rings that allow easy ride height and preload adjustment retain a top-quality racing coil selected to deliver the optimal spring rate. FOX shocks bolt on with no modifications and are designed to level your truck front-to-rear. The metal impact-extruded aluminum body increases cooling capacity and resists rust. Vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.
- 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
- 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Internal IFP mono-tube reservoir design
Adjustable: Yes
Compressed Length: 15.0000
Cylinder Diameter: 2
Cylinder Material: Aluminum
Extended Length: 19.3900
Gas Charged: Yes
Installation Time: 2-3 Hrs
Lower Mount Code: TM
Lower Mount Type: Bar Pin
Pvg Product Status: Active
Shaft Diameter: 5_8
Shaft Material: Chrome Plated Steel
Shocks Included: No
Travel Length: 4.3900
Type: Coil Over
Upper Mount Code: OEM
Upper Mount Type: TM
