BDS Suspension - FOX88406127

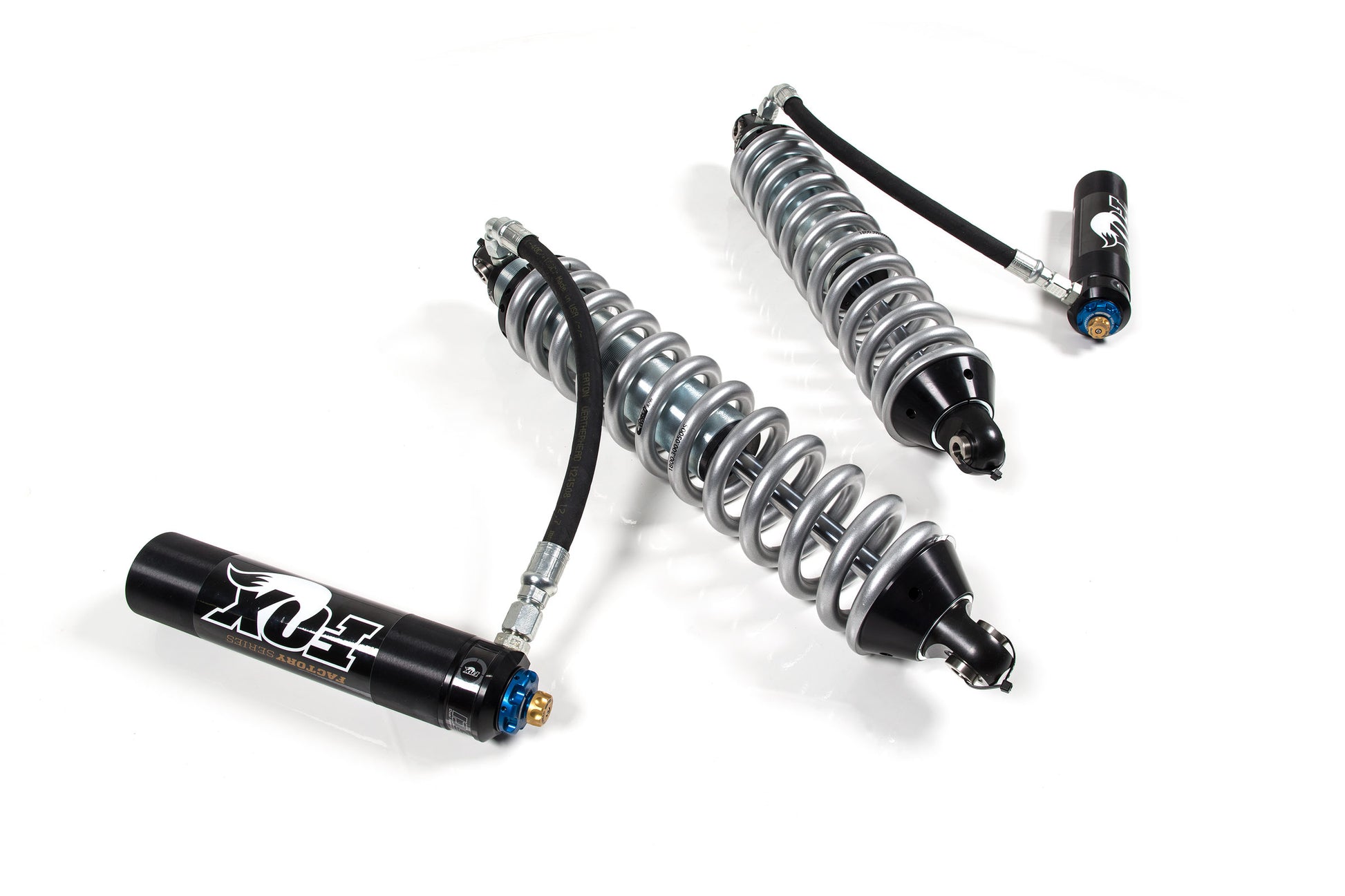

X - Kit: BDS 05-20 Ford F250/F350 Front Coilover
Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs offering 10 separate low-speed and 12 high-speed compression levels with a black anodized aluminum reservoir to increase cooling efficiency.
- 2.5-inch smooth bore zinc plated seamless steel body
- Zinc-plated and double-clear coated for long lasting finish
- Black-anodized CNC-machined 6061-T6 billet aluminum
- Application-specific adjustable 3.0 Eibach® racing springs
- 7/8-inch hard chrome-plated steel shafts
- Application specific valving to maximize performance
Adjustable: Yes
Compressed Length: 16.0400
Cylinder Diameter: 2_5
Cylinder Material: Steel
Extended Length: 23.9000
Gas Charged: Yes
Installation Time: 2-3 Hrs
Lower Mount Type: Eyelet
Pvg Product Status: Active
Reservoir Type: Remote
Shaft Diameter: 7_8
Shaft Material: Chrome Plated Steel
Travel Length: 7.8600
Type: Coil Over
Upper Mount Code: Eyelet
Upper Mount Type: Special
