BDS Suspension FOX88306135 - X - NF: Kit: BDS 07-18 GM 1500 Front Coilover, 2.5 Series, R/R, 4" Lift, DSC

BDS Suspension FOX88306135 - X - NF: Kit: BDS 07-18 GM 1500 Front Coilover, 2.5 Series, R/R, 4" Lift, DSC

X - NF: Kit: BDS 07-18 GM 1500 Front Coilover, 2.5 Series, R/R, 4" Lift, DSC

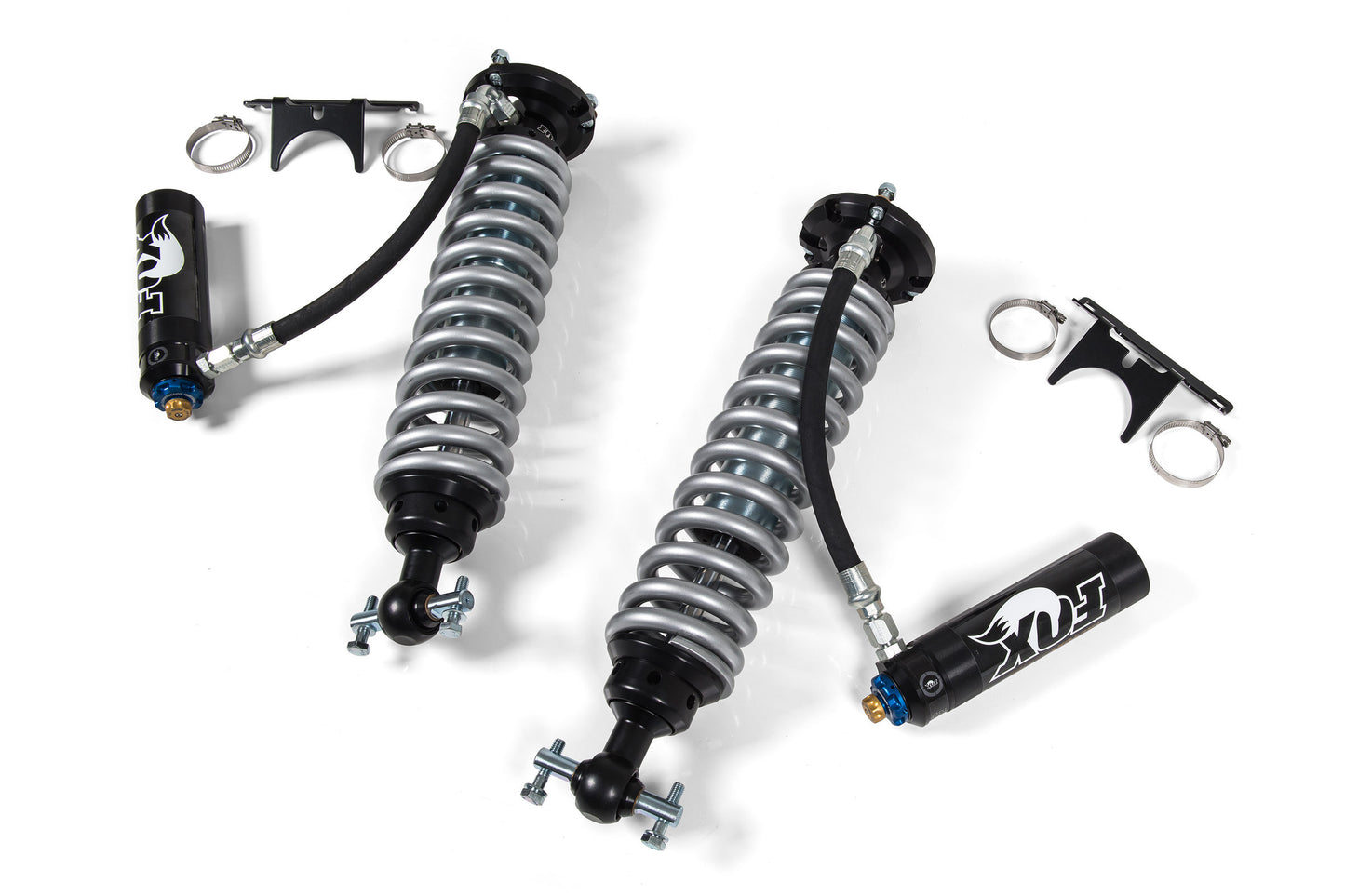

Give your BDS 4-inch lift equipped 2007-2018 Chevy Silverado or GMC Sierra 1500 a race-winning technology upgrade to improve damping in any terrain with FOX Factory Series 2.5 Coil-Over shocks with Dual Speed Compression (DSC) Reservoir Adjusters. Before any FOX shocks reach production, they've had to stand the test of time and live up to incredible abuse by the fastest athletes in racing. FOX pushes the boundaries to give you that same precise control and race-proven performance you can feel in a bolt-on solution.

Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

• • 2.5-inch smooth bore zinc plated seamless steel body
  • Zinc-plated and double-clear coated for long lasting finish
  • Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Application-specific, adjustable 3.0 E
  Adjustable: Yes

  Compressed Length: 17.5500

  Cylinder Diameter: 2_5

  Cylinder Material: Steel

  Extended Length: 23.6900

  Gas Charged: Yes

  Installation Time: 2-3 Hrs

  Lower Mount Type: Bar Pin

  Pvg Product Status: Active

  Reservoir Type: Remote

  Shaft Diameter: 7_8

  Shaft Material: Chrome Plated Steel

  Shocks Included: No

  Travel Length: 5.8600

  Type: Coil Over

  Upper Mount Code: OEM

  Upper Mount Type: OEM
