BDS Suspension BDS1307FPE Suspension Lift Kit

BDS Suspension BDS1307FPE Suspension Lift Kit

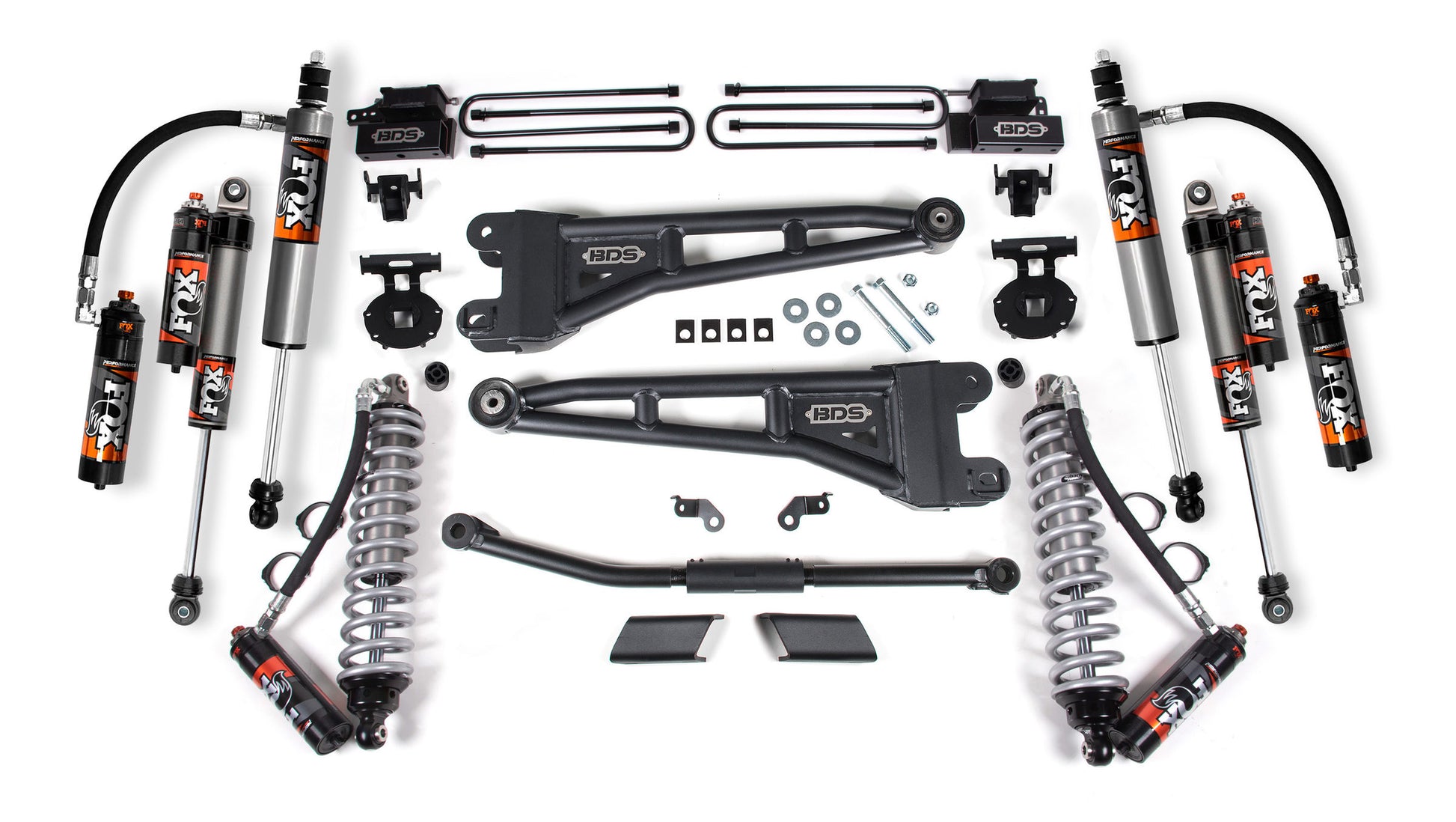

Build the ultimate 2023-2026 Ford F450 Super Duty diesel powered truck with this 2.5-inch radius arm lift kit with FOX 2.5 Performance Elite coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific FOX 2.5 coilover shocks, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets and secondary FOX 2.5 Performance Elite shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of FOX 2.5 Performance Elite shocks.

FOX Performance Elite Coilover

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a va

• • FOX 2.5 Coilover mounts in factory coil bucket location
  • Adds additional secondary FOX 2.5 Performanc Elite shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty
  Front Lift Height: 2_5

  Front Lift Method: Coilover

  Installation Difficulty: moderate

  Installation Time: 5 Hrs

  Installation Tools: 30mm socket-Basic Hand Tools-Torque Wrench-jack hydraulic-puller pitmanArm

  Rear Lift Height: 1

  Rear Lift Method: Block

  Shocks Included: Yes
