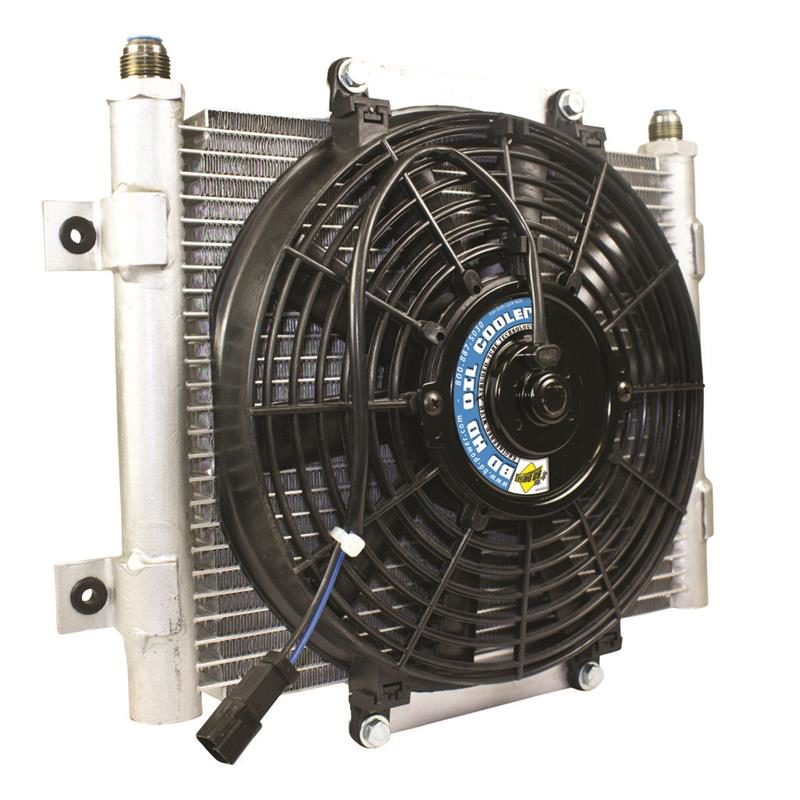

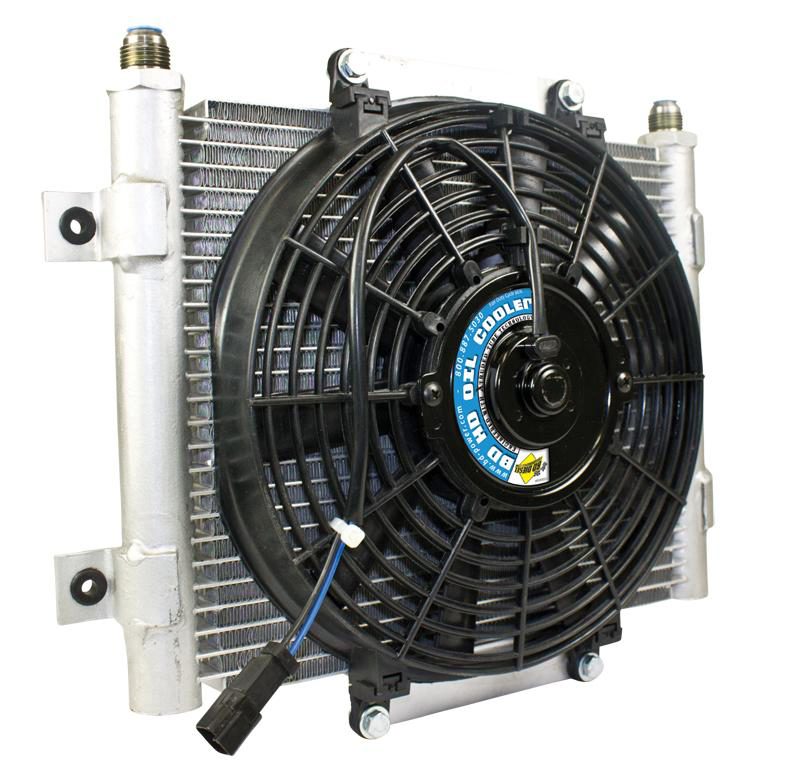

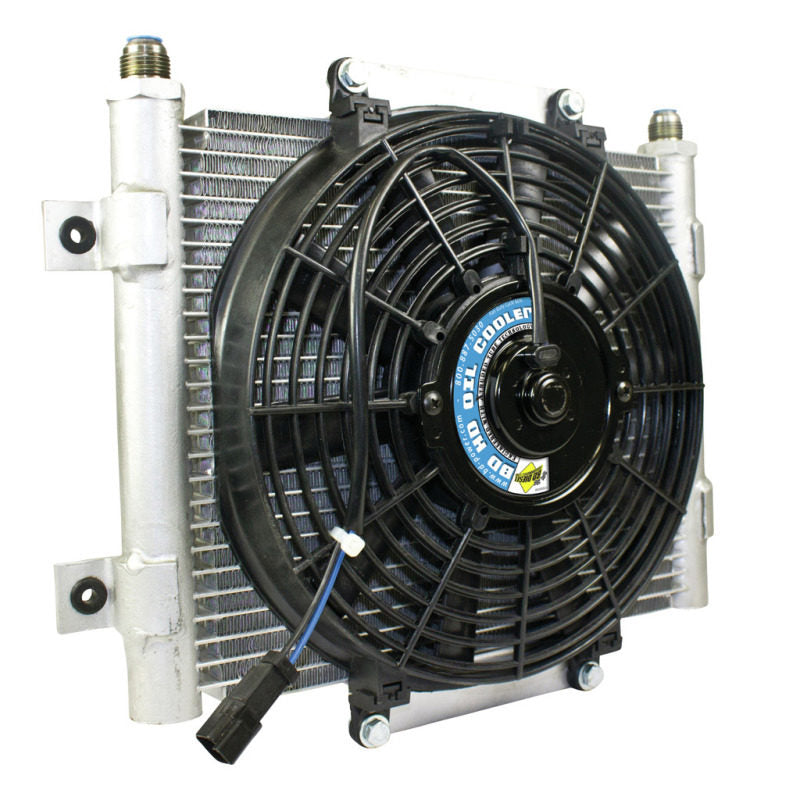

BD Diesel 1300611 - Xtrude Transmission Cooler with Fan -10 JIC Male Connection

BD Diesel 1300611 - Xtrude Transmission Cooler with Fan -10 JIC Male Connection

22 percent more cooling over other designs

• 200 Micro Extruded passages
• Large surface area to transfer heat for external air flow cooling
• Turbulent oil flow design promotes a more complete cooling
• Large 5/8-inch ports prevents inlet/outlet restriction
• Furnace brazed rails have been tested to 300psi of pressure
• 80-watt, 10-inch, 800 CFM electric fan
• 33,930 BTU/HR and in excess of 30,000 GVW!
• Motor is IP54 with 65 percent duty cycle
• Cooler Assembly Only

Details:

• Series: Xtrude
• Ems Code: 4
• Engine Years: Universal
• Shipping Restriction: This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states
• Sold As: Each
• Warranty: 12-Months/24,000 Miles
