BD Diesel - 1062014

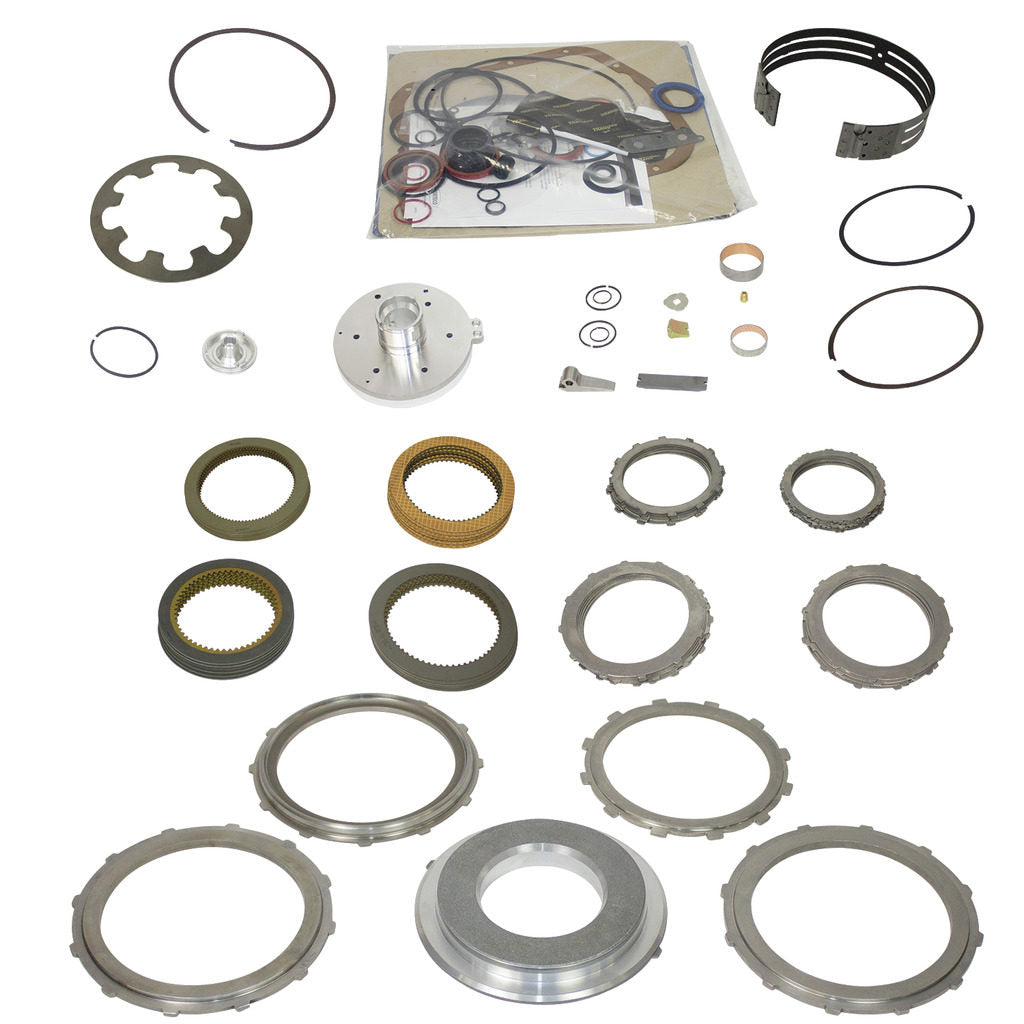

BD Build-It Dodge 48RE Trans Kit 2003-2007 Stage 4 Master Rebuild Kit
Stage 4 Master Built-It Transmission Kit; Incl. Basic Rebuild Parts/Gaskets/Hardware;
Are you a looking to rebuild your own transmission and needing some specialty parts to match your application? BD is offering a range of rebuild parts kits featuring the same parts we use in our own performance transmissions for the seasoned builder to complete the job. All kits include the basic rebuild parts and gaskets and have the added touches that range from stock HP up to our Stage 4 Master Kit. For an experienced builder these kits can be a big money saver as you will not have to deal with core charges and can save over 400 dollars in freight charges!
- Same parts used in our own performance transmissions
- All kits include the basic rebuild parts and gaskets
- Band - High Temp/Energy - Raybestos
- Band Anchor - Billet
- Accumulator Piston - Billet Dual Ring
- Bushing - Front Clutch Drum 0.85, Pump - Bronze W/Dimples
- Clutch Disc
- Friction - Front (Dir/Hi/Rev) Allomatic, O/D Allomatic, O/D Direct Borg Warner, Rear (Fwd) Borg Warner
- Shifter Bracket & Lever Kit - 4.2 Ratio
- Gasket Kit - Overhaul
- Pressure Plate - Dir/Fwd (Frt) .145", Dir/Fwd (Frt) .185"
- BD Pressure Plate Forward (Rr) Beveled Machined, O/D Brake F&R Machined
- BD Piston - Dir. Clutch (Frt) Machined
- Piston Retainer Kit
- Servo Cover Ring, Piston Cover
- Snap Ring - Direct Clutch .062, Direct Clutch .074, Direct Clutch .088
- Rear Clutch Piston Spring
- Steel - Fwd (Dir/Hi/Rev), O/D Brake, O/D Dir .525", Frt (Dir/Hi/Rev) Oversize
- Strut - Front Band
- Washer - Int. Shaft Thrust .052
Category: Overhaul Kits & Parts
Engine: 5.9L Cummins 04.5-07
Make: Dodge
Suggested Product: 1060605
