BD Diesel - 1045250
Super B 600 SX-E S364.5 Turbo Kit - Dodge 1994-2002 5.9L

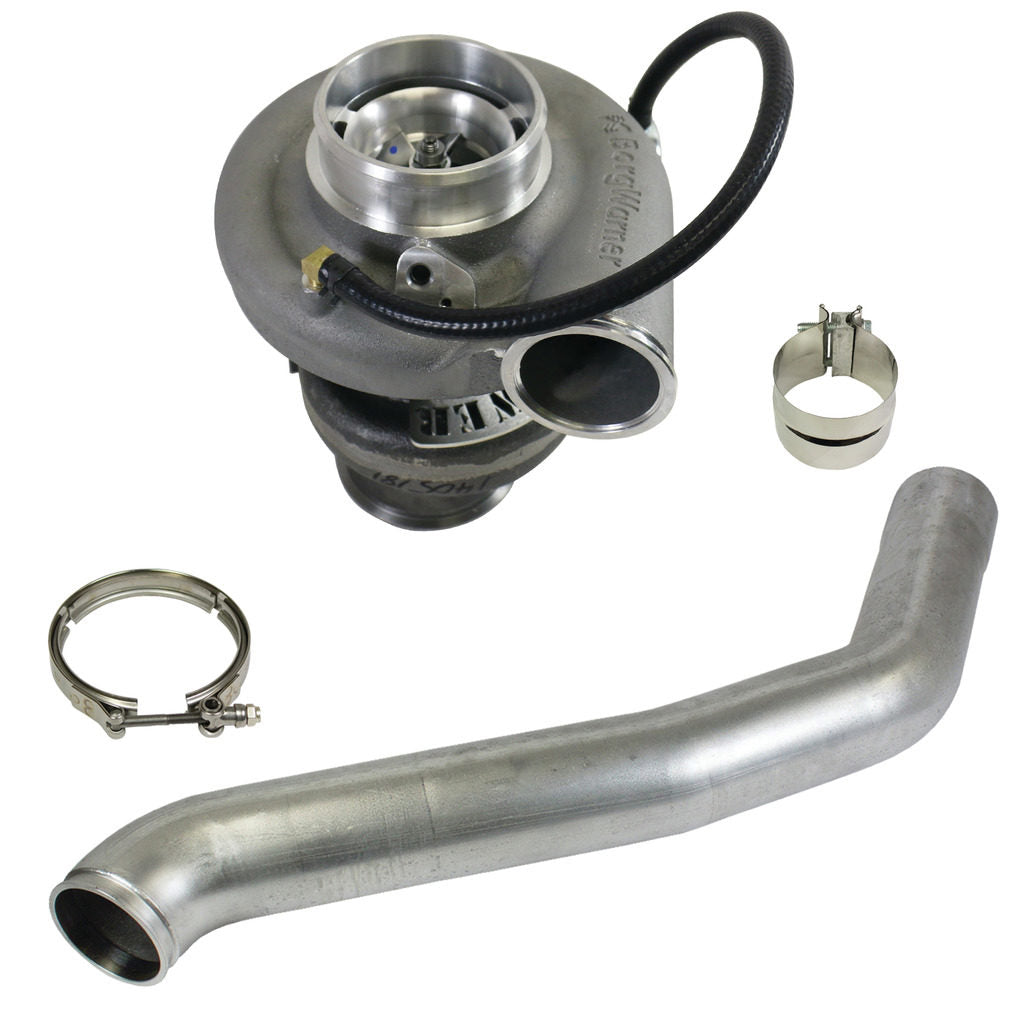

Super B 600 Turbo Kit; SX-E S364.5; A/R Ration 0.80; Incl. Killer B Single Turbo/4 in. Downpipe/V Band Clamp/4 in. Stainless Steel Band Clamp/Oil Drain Gasket;
All kits come with everything you need to allow for an easy install. Now get these kits with Borg Warner SX-E turbo options and expect even more. A BD exclusive feature of the SX-E turbos is that they are waste-gated to mount on stock T3 manifolds.
- The SX-E turbo was designed for performance with a 360 thrust bearing and enhanced compressor wheel and housing
- Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels
- The high strength FMW Forged Milled Wheels are lighter and stronger and withstand higher wheel speeds
- BD exclusive feature of a heavy sprung waste-gated T3 turbine housing that mounts onto stock exhaust manifolds
- BD's HD Waste gate and bracket holds boost and prevents over speed damage
- Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning
- Kit comes with downpipe, V-band clamp, band clamp
- Comp Wheel: 64.5mm 2.54in
- Turbine Wheel: 80mm 3.15in
- A/R Ratio: 0.80
- Flow: 82 Lb/min
- Approximate rated 600hp (depending on truck configuration)
Category: Single Turbo Performance
Engine: 5.9L Cummins 98.5-02 24-Valve
Make: Dodge
Suggested Product: 1453521
