Banks Power - 19249
Banks Ram-Air differential cover extends lubrication life and retains fuel economy. Thanks to its superior fluid and aerodynamics, the Ram-Air Cover out-performs stock and flat-back high-capacity covers and does so with less lubricant. Increased distance between service intervals and less lubricant means you'll save money while extending gear life.

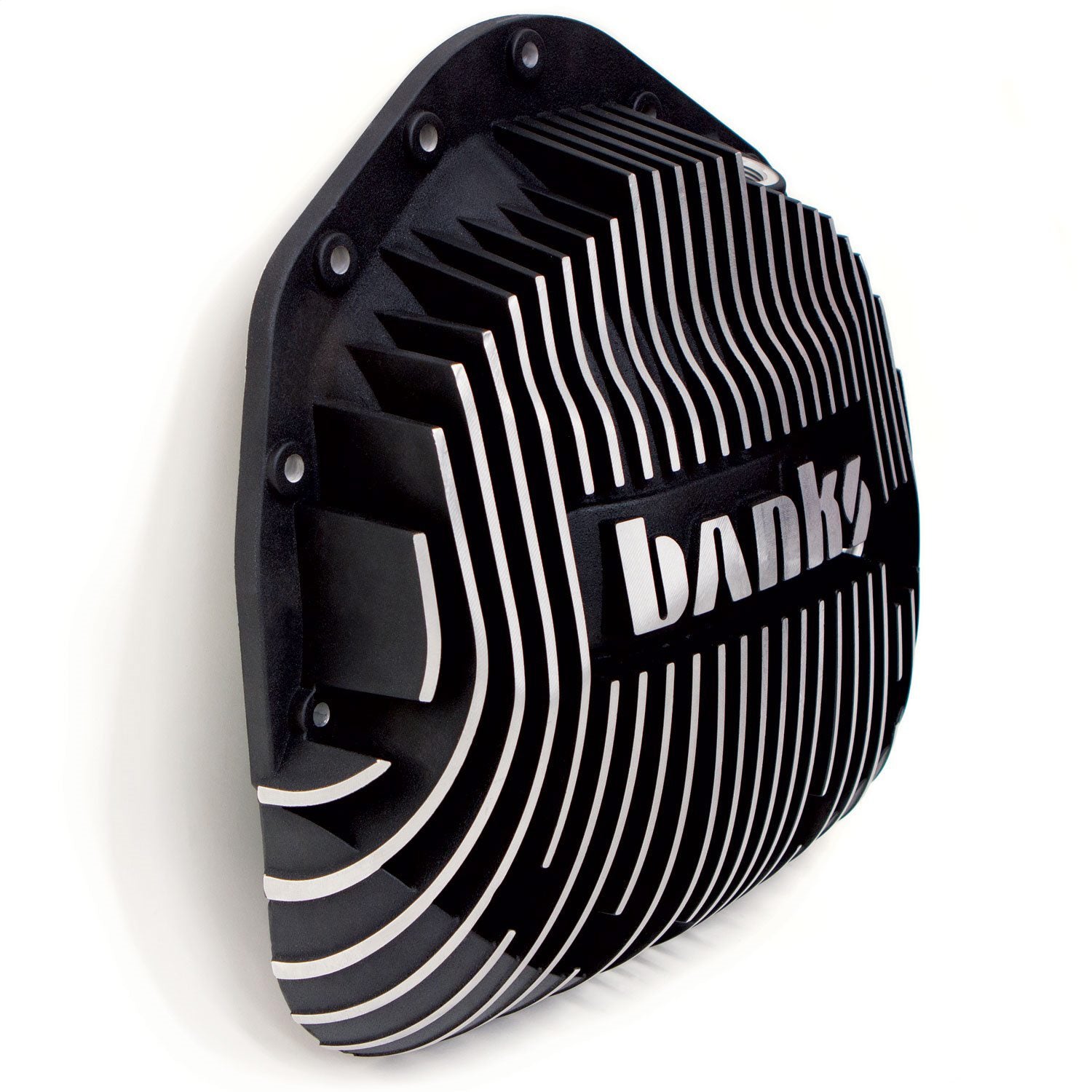

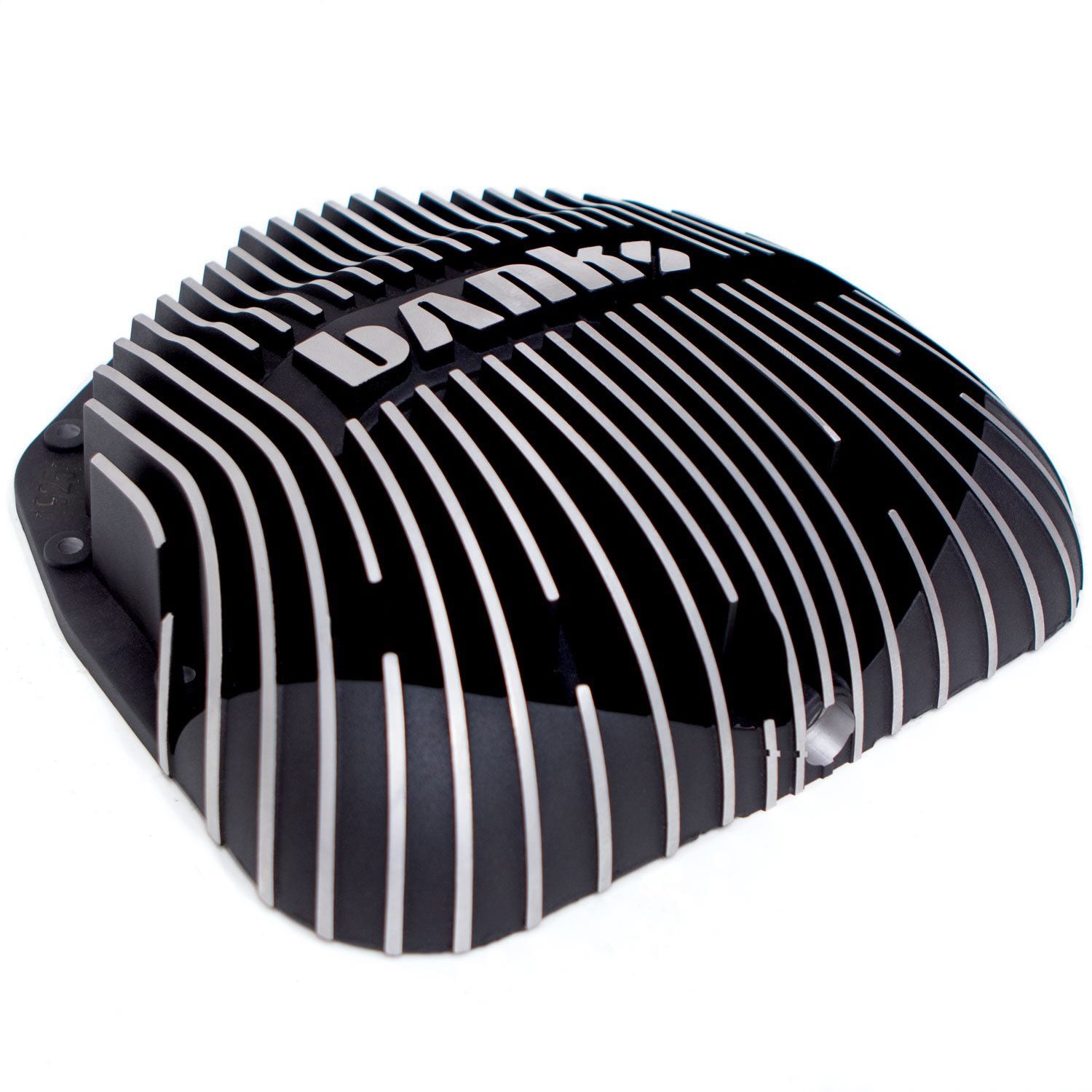

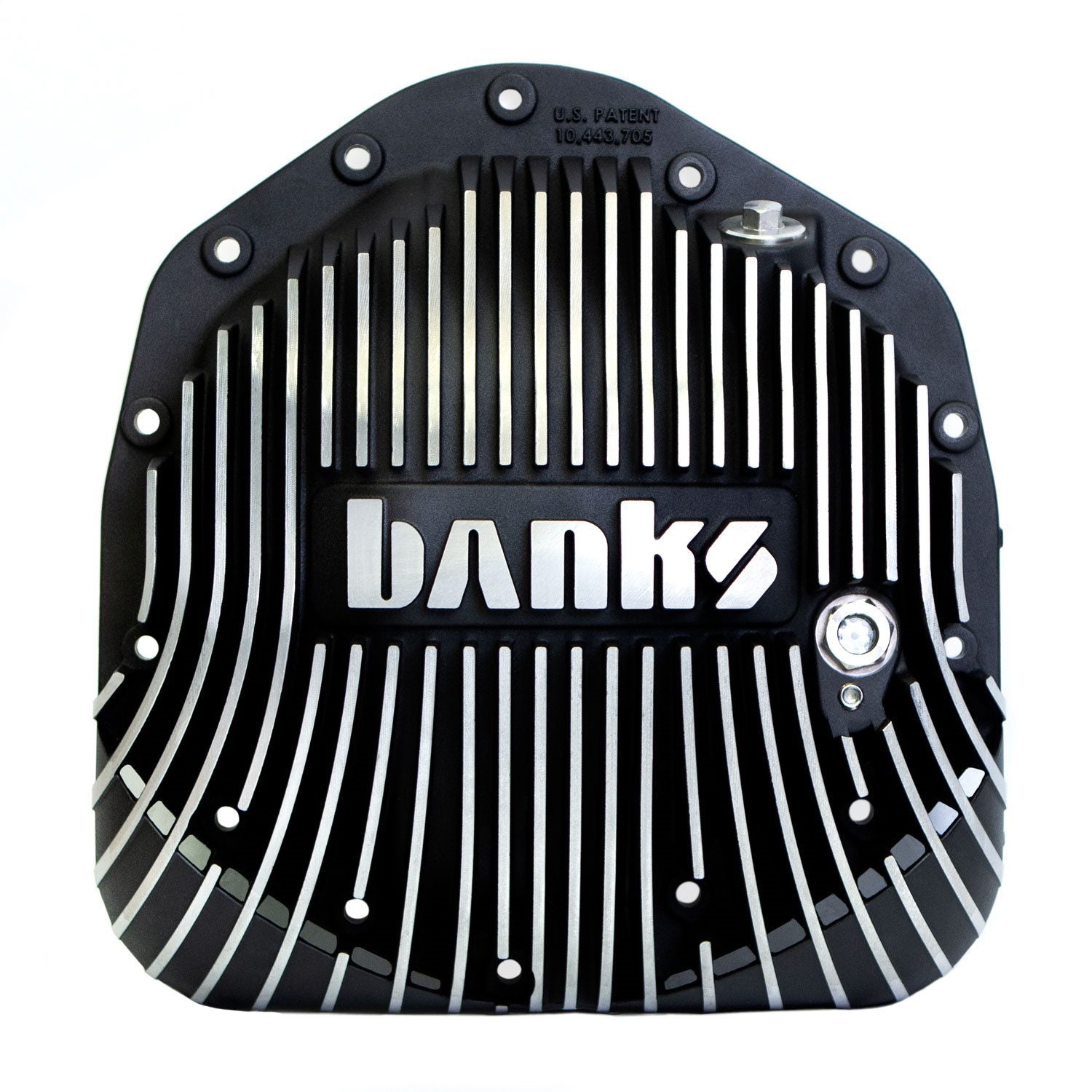

Introducing the Banks Power Ram-Air Diff Cover Kit
Patented design cools 5X better than flat-backs
Banks Ram-Air differential cover extends lubrication life, retains fuel economy, and rejects heat faster than any other cover on the market.
Key Highlights
- New patented design features Ram-Air scoops for fastest cooling
- Provides cold high velocity air, overcoming dead air zone behind differential
- Scoops force air up and into massive heat radiation fins
- Engineered to break-away if snagged on an obstacle
- Banks cools 5X better than flat-back covers in on-road towing tests over the same road, same weather, operator and vehicle
- Cools 118 percent better than flat-backs in 200hp 60mph sustained tests
- Dry-mount high-pressure silicone O-ring seal. No messy RTV clean!

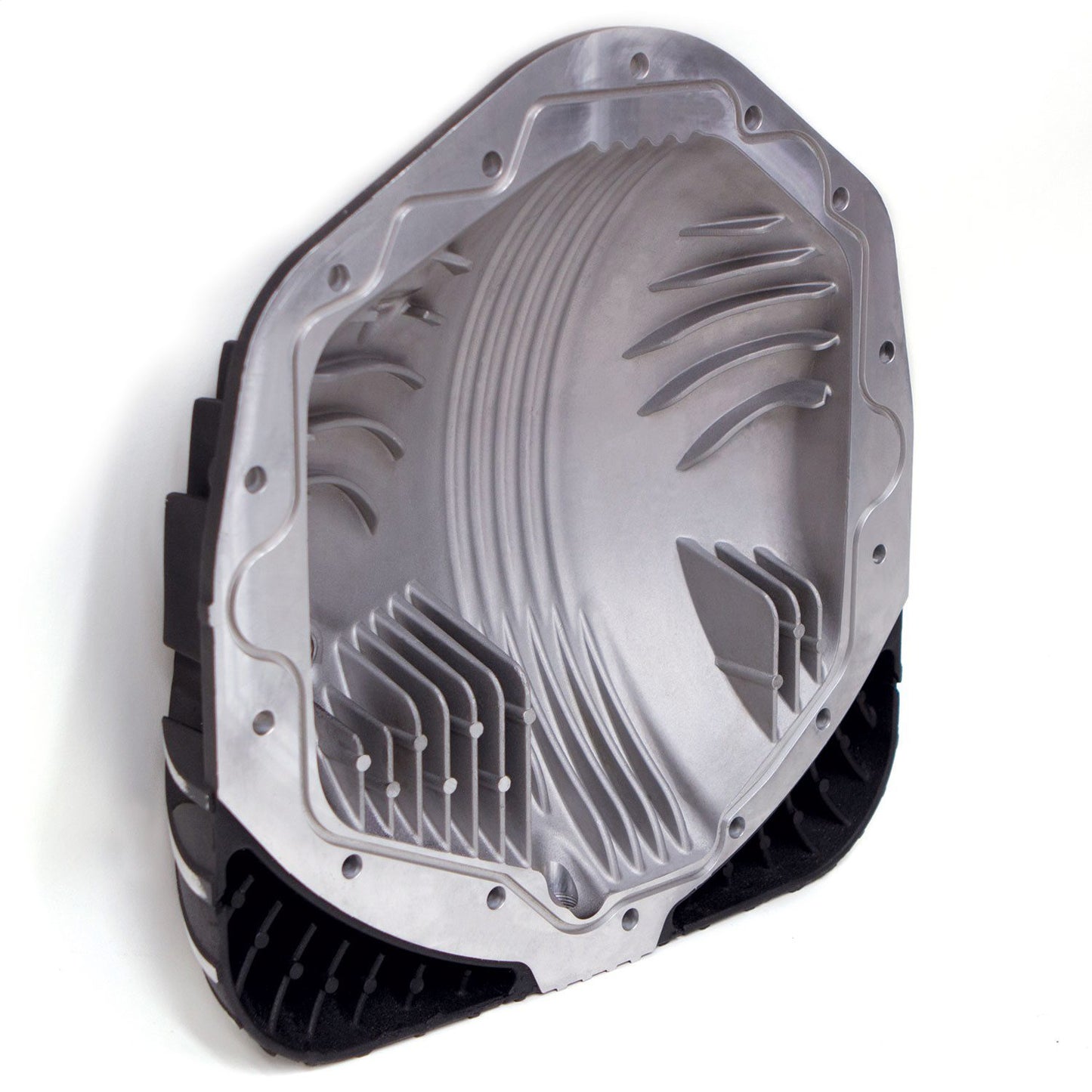

- Internal fins transfer heat through the cover into the external fins
- Clears spare tire heat shield, Panhard bars and other components
- Does not sacrifice any ground clearance
- Limited Lifetime Warranty
- Fluid Dynamics
- Axle tube lubricant guides directs lube to bearings w/o overfilling
- Cover mates flush with differential housing for smooth fluid flow
- Ring gear raceway controls fluid flow to the pinion and bearings
- Low fluid aeration means longer fluid life
Technical Specs
- Weight: 11.7 lbs
- External heat radiation fin count: 24
- Internal heat absorption fin count: 26
- Dimensions: 14.2 inch X 13.3 inch X 3.8 inch
- External heat radiation fin surface area: 533.782 in2
- Internal heat absorption fin surface area: 119.882 in2
- External heat radiation total surface area: 808.81 in2
- Internal heat absorption total surface area: 215.78 in2

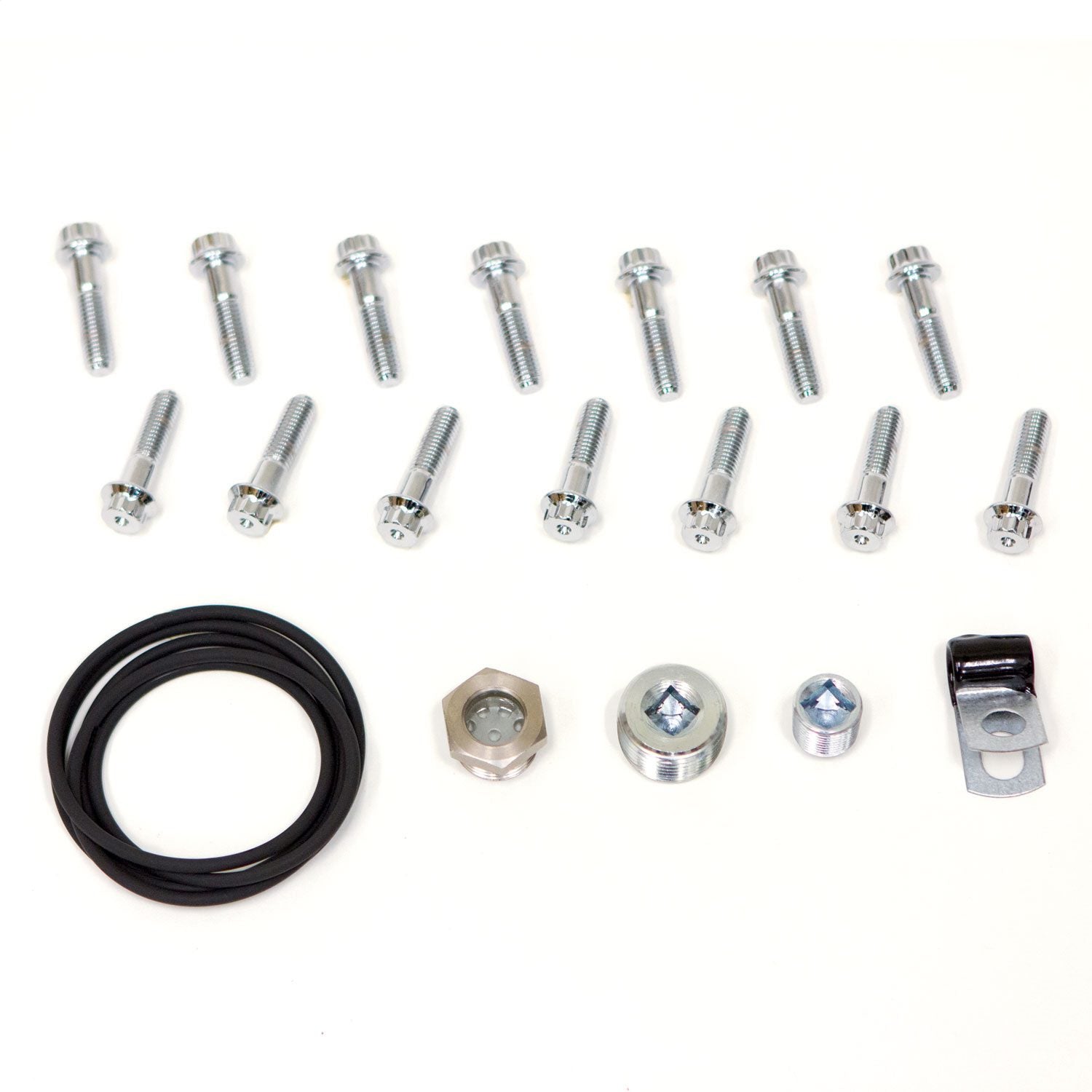

- Fasteners: 14 x stainless steel M8-1.25 flange hex bolts
- Material: A380 aluminum diecast with CNC machined surfaces
- Internal Volume: About 4.0 quarts (Check OEM Owners Manual)
Oil service

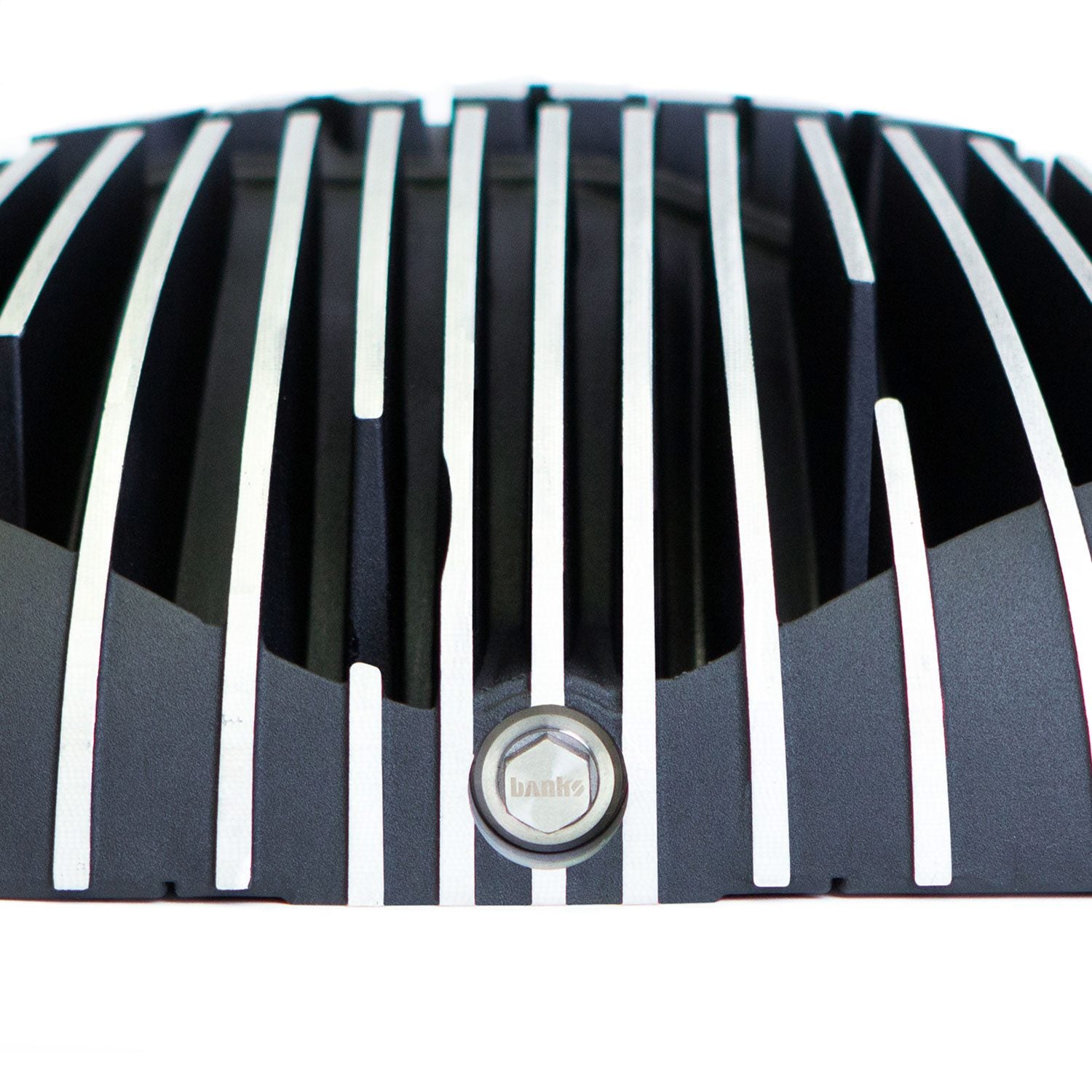

- Magnetic drain plug

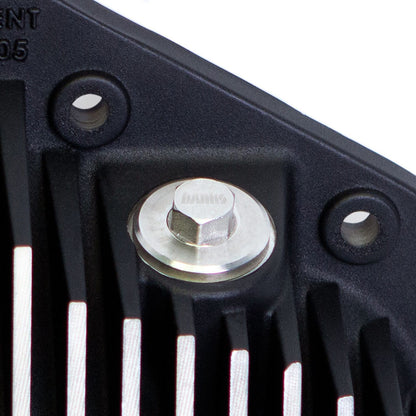

- Magnetic fill port plug
- 20 degree angled fill port for easy access
- No need to remove cover to change fluid
- 1/2 inch sight glass with contrast screen (visual aid) and Viton seal
- Banks recommends Amsoil 75W-90 Severe Gear Synthetic Gear Lube
- Fill level depends on model year: (About 4.0 quarts Fill To OEM Level)
- Emissions Compliant: E.O. Not Required
US Patent 10,443,705 B1
Fits 2019-24 Ram 6.4L Gas Trucks
Fitment Alert: AAM
- Does Not Fit Ram Trucks With Airbag Suspension Alone. (See Fitment Note below)
- Sway Bar Spacers (19249-2) required on Ram Trucks with OEM sway bar.
