Baer Brakes - 4302517R
Brake System - Classic Series - Rear - 1 Piston Calipers - 10.5 in Drilled / Slotted Rotors - 1-Piece Rotor - Aluminum - Red Powder Coat - GM A-Body / F-Body 1964-72 - Kit

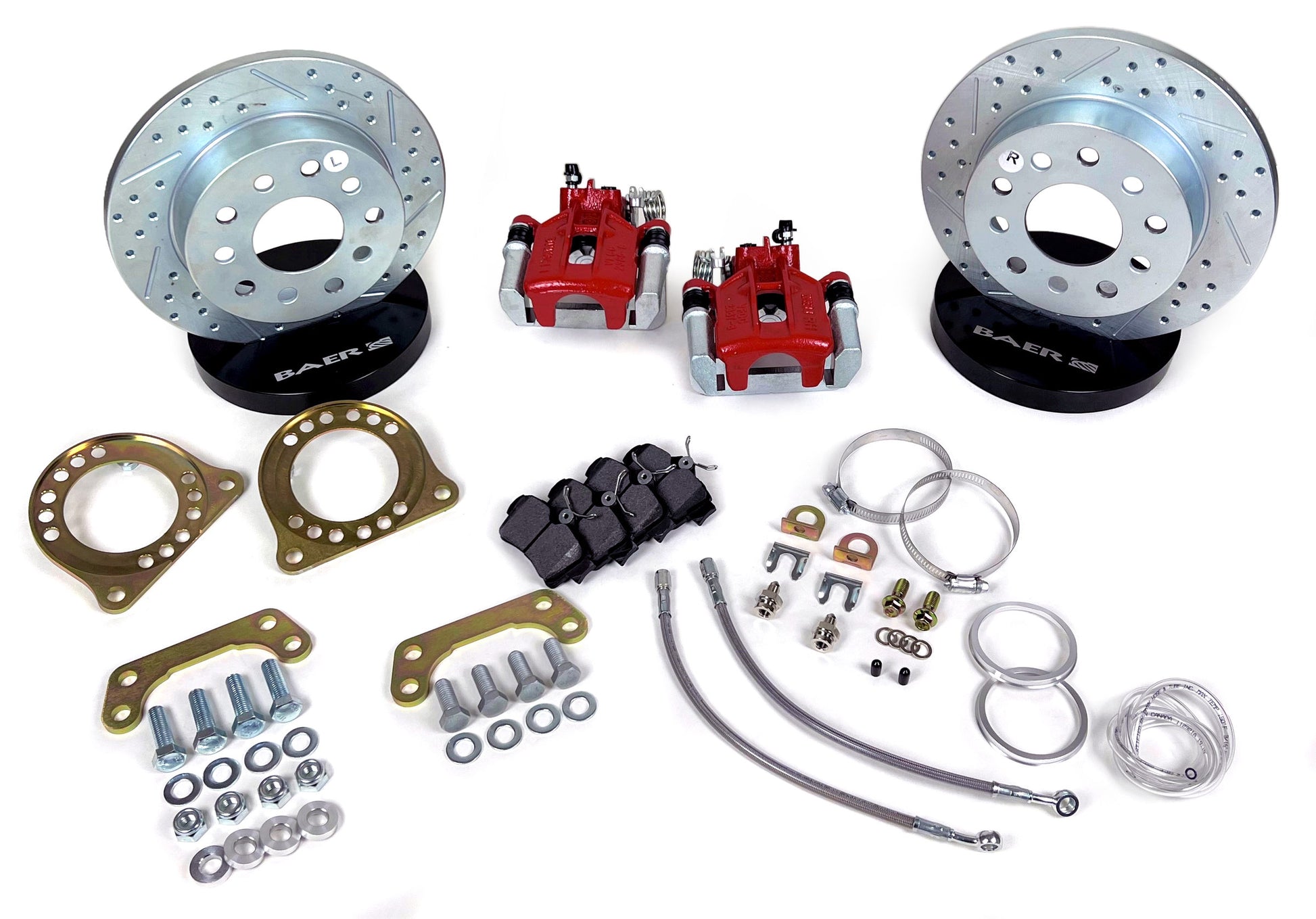

System Includes - Calipers, Brake Pads, Rotors, Brackets, Stainless Steel Braided Brake Lines and System Hardware. Parking brake cables not included

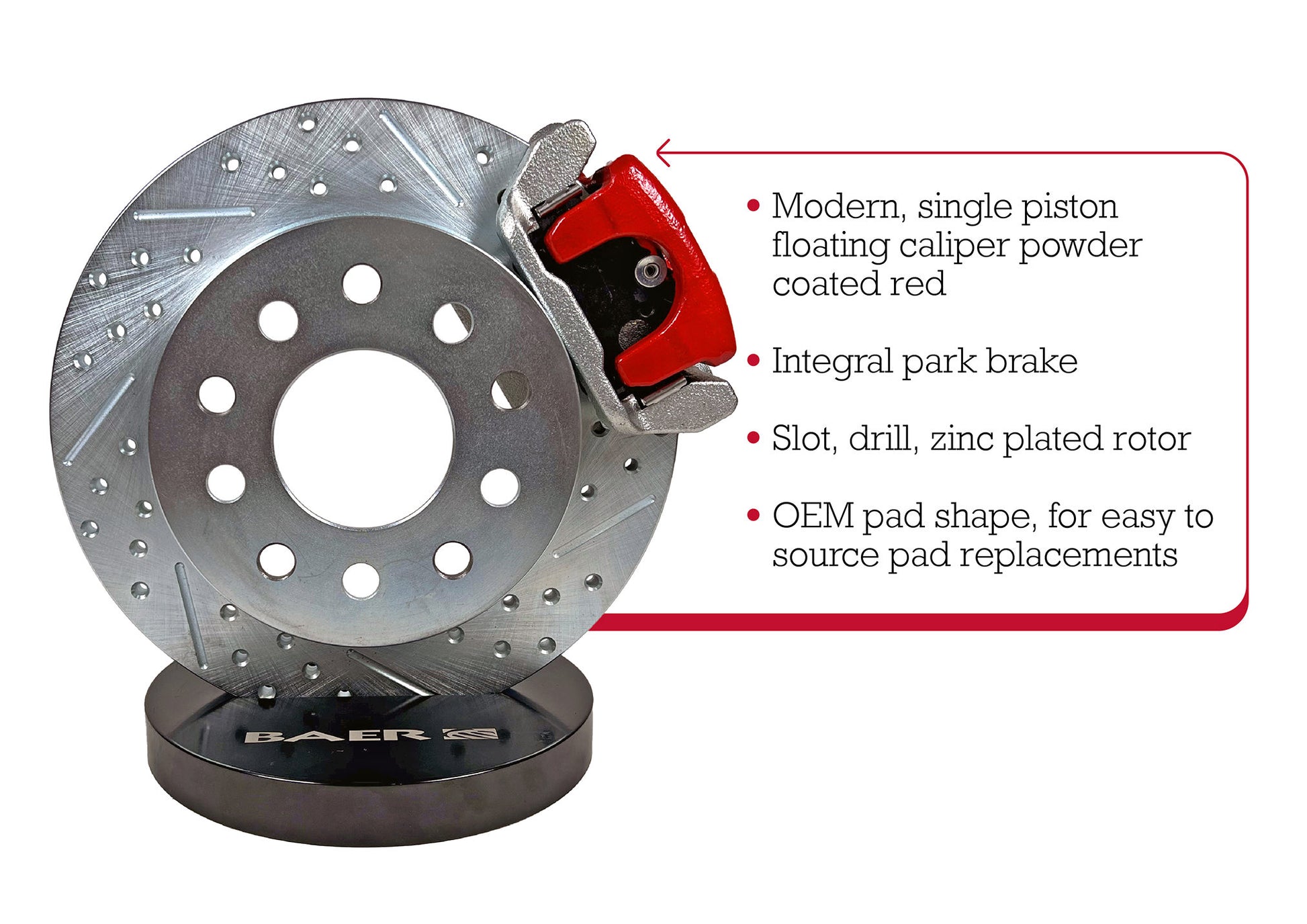

This Baer Classic system features a single piston, integral park brake caliper mounted to a 10.50", 1-piece slot, dimpled and zinc plated rotor. The caliper comes with a red powder coated finish, includes dust/weather seal and uses the popular D627 pad type. The system includes calipers, rotors, brackets, hardware, stainless braided brake hoses and fittings. The Baer Classic system is a cost effective, full feature drum to disc conversions and fits most 14" or larger wheels.
- Modern Single-Piston Caliper w/Integral Park Brake
- Red Powder Coated Finish
- Slot, Dimpled, Zinc Plated Rotor
- Stainless Braided Brake Hoses
- Uses Common FMSI D0627 Brake Pad
- Modern Brakes for Small Wheels at an Economical Price
Axle: Rear
Axle Flange: GM 10/12 Bolt C-Clip (Small Car Pattern)
Axle Flange: GM Small Pattern 10/12 Bolt Bearing on Axle (Buick/Olds/Pontiac)
Box Count: 1
Brake Hose DOT Approved: Yes
Brand: Baer Brakes
Caliper: 1 Classic
Caliper Color: Red
Category: Brakes
Disc Brake Caliper (Front) Type: Floating
Disc Brake Caliper (Rear) Piston Quantity: 1
Disc Brake Caliper (Rear) Type: Floating
Disc Brake Pad FMSI Number: D0627
Disc Brake Rotor (Front) Construction: Solid
Disc Brake Rotor (Rear) Construction: Solid
Disc Brake Rotor (Rear) Outside Diameter: 10.500
Emission Code: 6
Export Description: Brake Components
Fitment Notes: w/Non-Staggered Rear Shocks
Friction Material Composition: Ceramic
Grade Type: Performance
Hose Material: Stainless Steel
Includes Park Brake: Yes
Includes Park Brake Cables: No
Min Wheel Dia (verify using template): 14
part type: Disc Brake Upgrade Kit
Product Line: Classic
Product Type: 10.5 Inch Classic Rear Brake Kit
Rotor Diameter: 10.500
Rotor Surface: SDZ
Rotor Thickness: .504
Rotor Type: 1-Piece
Solid Or Vented Type Rotor: Solid
Sub Category: Service Kits
Surface Type: Slotted, Drilled & Zinc Plated
System Notes: Fits applications with non-staggered rear shocks
Template: V120V
Wheel Lug/Bolt Pattern: 5x4.75
Wheel Lug/Bolt Pattern: 5x4.50
