Baer Brakes

Baer Brakes 4301681R - Classic Series Front Brake Kit

MSRP: $1,181.95
$1,049.95
( saved $132.00 )
Write a Review
  • Baer Brakes 4301681R - Classic Series Front Brake Kit
  • Baer Brakes 4301681R - Classic Series Front Brake Kit
  • Baer Brakes 4301681R - Classic Series Front Brake Kit
  • Baer Brakes 4301681R - Classic Series Front Brake Kit
  • Baer Brakes 4301681R - Classic Series Front Brake Kit
  • Baer Brakes 4301681R - Classic Series Front Brake Kit
  • PLEASE NOTE: Pictures are repsentative of style, may be generic.
Adding to cart… The item has been added
SKU:
HKMJ-4301681R
UPC:
090127965078
  • Free Ground Shipping

  • No Restocking Fee

  • Safe Payments

  • No Backorders Ever

Baer Brakes - 4301681R

Baer Brakes 13" Classic Series Front Brake Kit

Fits 1988-98 Chevrolet/GMC 2WD Trucks & 92-99 Chevrolet/GMC 2WD SUV's w/REACT 2" Drop Spindles (with or without ABS) (5 Lug, 5x5BC)

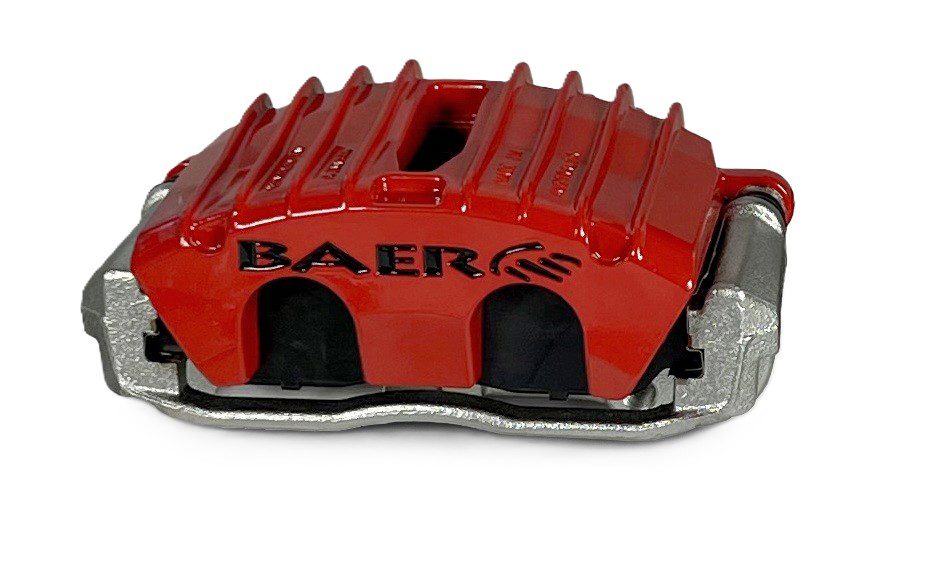

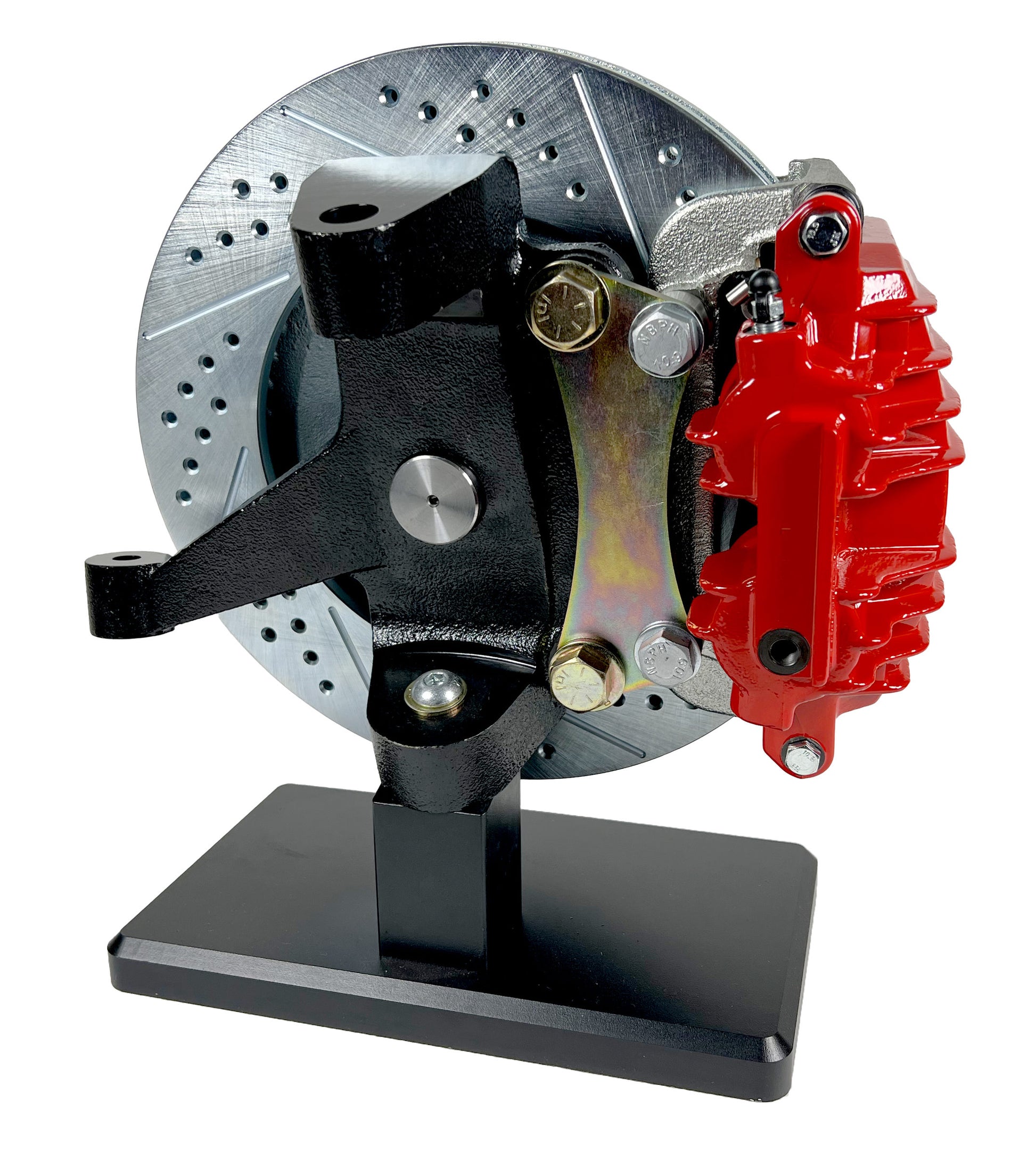

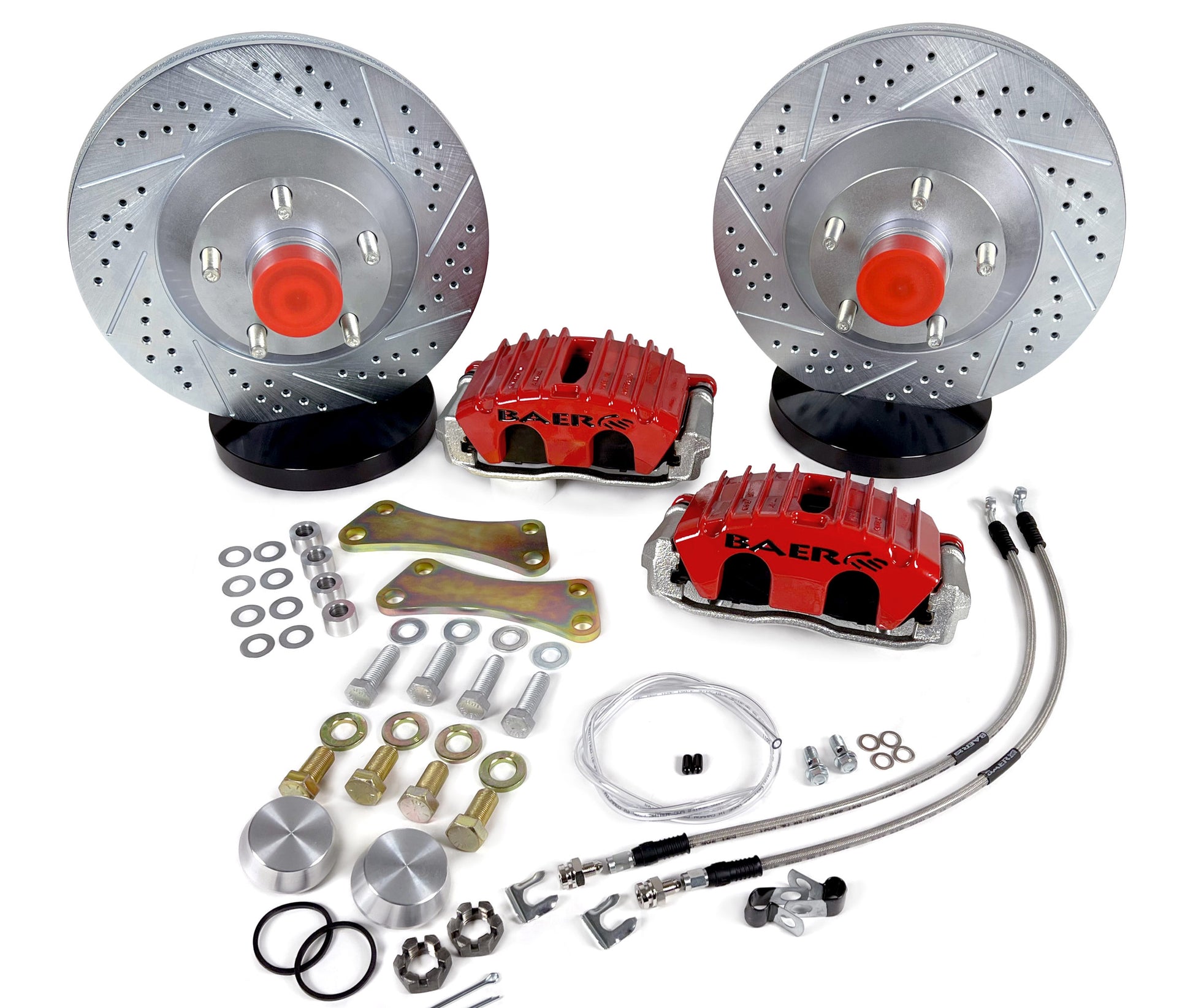

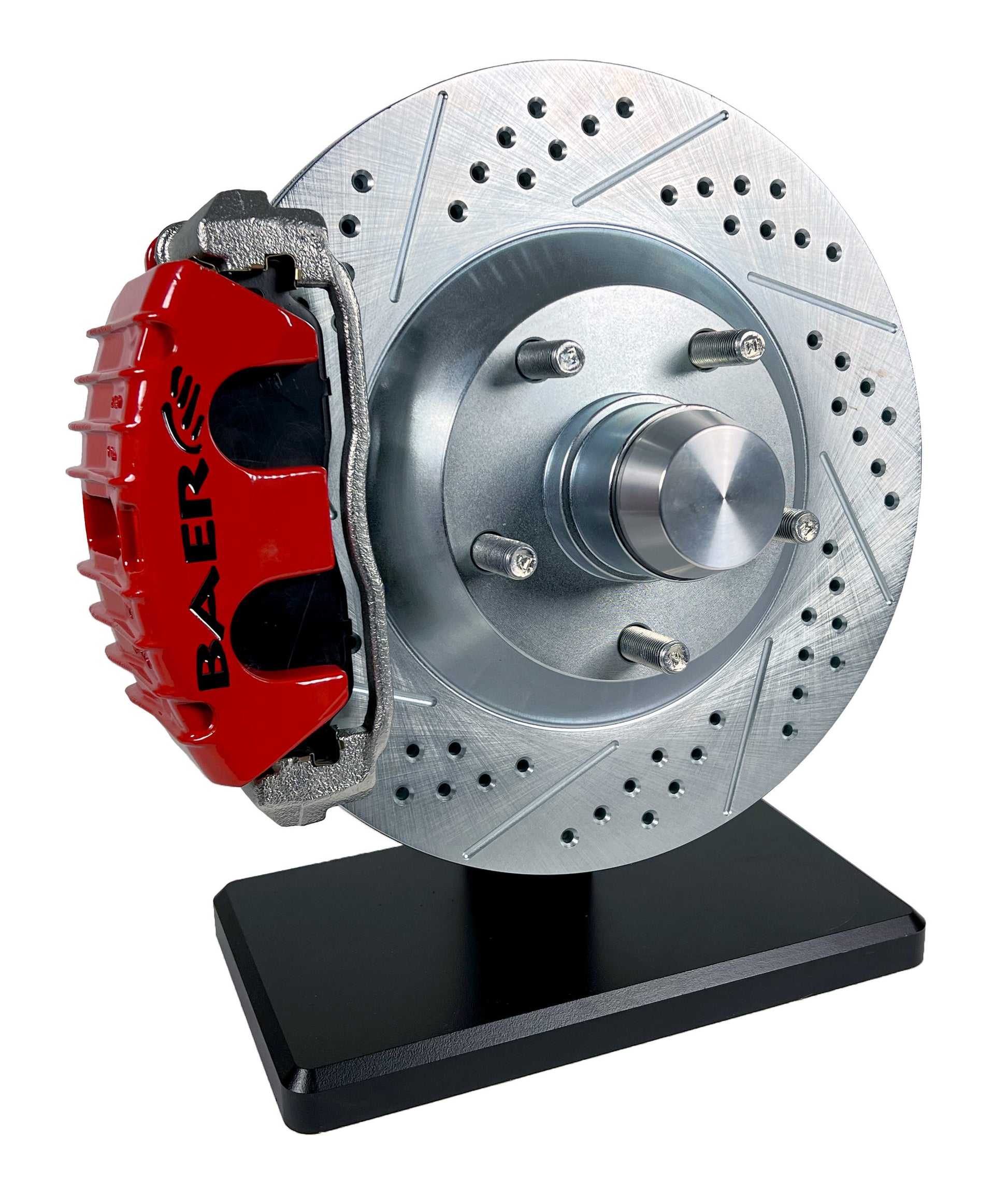

This Classic Series brake kit features an aluminum. 2-piston, pin drive caliper (PDC) mounted to a 13.150", 1-piece slot, drill, zinc plated integral hub rotor and is designed to fit vehicles using the AZ Pro Performance REACT 2" drop spindles (Baer p/n 6800258). The caliper comes in a red powder coated finish with the Baer logo painted black, includes dust & weather seal's and uses the popular D0731 pad type. Rotors are ready to install with races installed and bearings packed with Redline synthetic grease. Dust caps, mounting brackets, stainless braided hoses and all necessary hardware are also included. This 13" Classic Series system fits most 17" or larger wheels and with or without ABS.

  • Aluminum, 2-Piston, Pin Drive Caliper
  • Red Powder Coated Caliper w/Black Baer Logo
  • Slot, Drill, Zinc Plated Rotor Finish
  • Works With ABS and Non-ABS Applications
  • Stainless Braided Brake Hoses
  • Uses Common FMSI D0731 Brake Pad
  • Modern Brakes for Small Wheels at an Economical Price

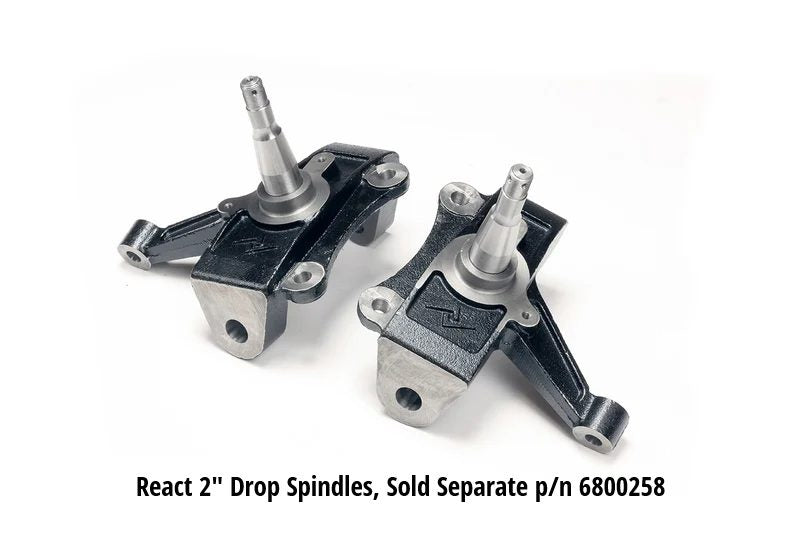

  • Designed to Fit AZ Pro Performance REACT Drop Spindles (Baer p/n 6800258)

ABS Tone Ring Included: Yes
Applications: GM C1500 SUV's 92-99
Applications: GM C1500 Trucks 88-98
Axle: Front
Brake Hose DOT Approved: Yes
Brand: Baer Brakes
Caliper: 2 PDC
Caliper Color: Red
Category: Brakes
Disc Brake Caliper (Front) Piston Quantity: 2
Disc Brake Caliper (Front) Type: Floating
Disc Brake Pad FMSI Number: D0731
Disc Brake Rotor (Front) Construction: Vented
Disc Brake Rotor (Front) Outside Diameter: 13.150
Emission Code: 6
Export Description: Brake Components
Fitment Notes: w/React Drop Spindles
Friction Material Composition: Ceramic
Grade Type: Performance
Hose Material: Stainless Steel
Lug Count: 5 Lug
Min Wheel Dia (verify using template): 17
part type: Disc Brake Upgrade Kit
Product Line: Classic
Product Type: 13 Inch Classic Front Brake Kit
Rotor Diameter: 13.150
Rotor Thickness: 1.150
Rotor Type: 1-Piece Integral Hub
Solid Or Vented Type Rotor: Vented
Sub Category: Service Kits
Surface Type: Slotted, Drilled & Zinc Plated
System Notes: Designed to be used with React 2" drop spindles Baer p/n 6800258 sold separately
Wheel Lug/Bolt Pattern: 5x5.00
Wheel Stud Size: M14-1.50 x 47.5mm
