Baer Brakes 13" Classic Series Front Brake Kit
Fits 1963-87 Chevrolet/GMC 2WD Trucks & SUV's w/CPP 2.5" Drop Nodular Iron Spindle (5 Lug, 5x5BC)

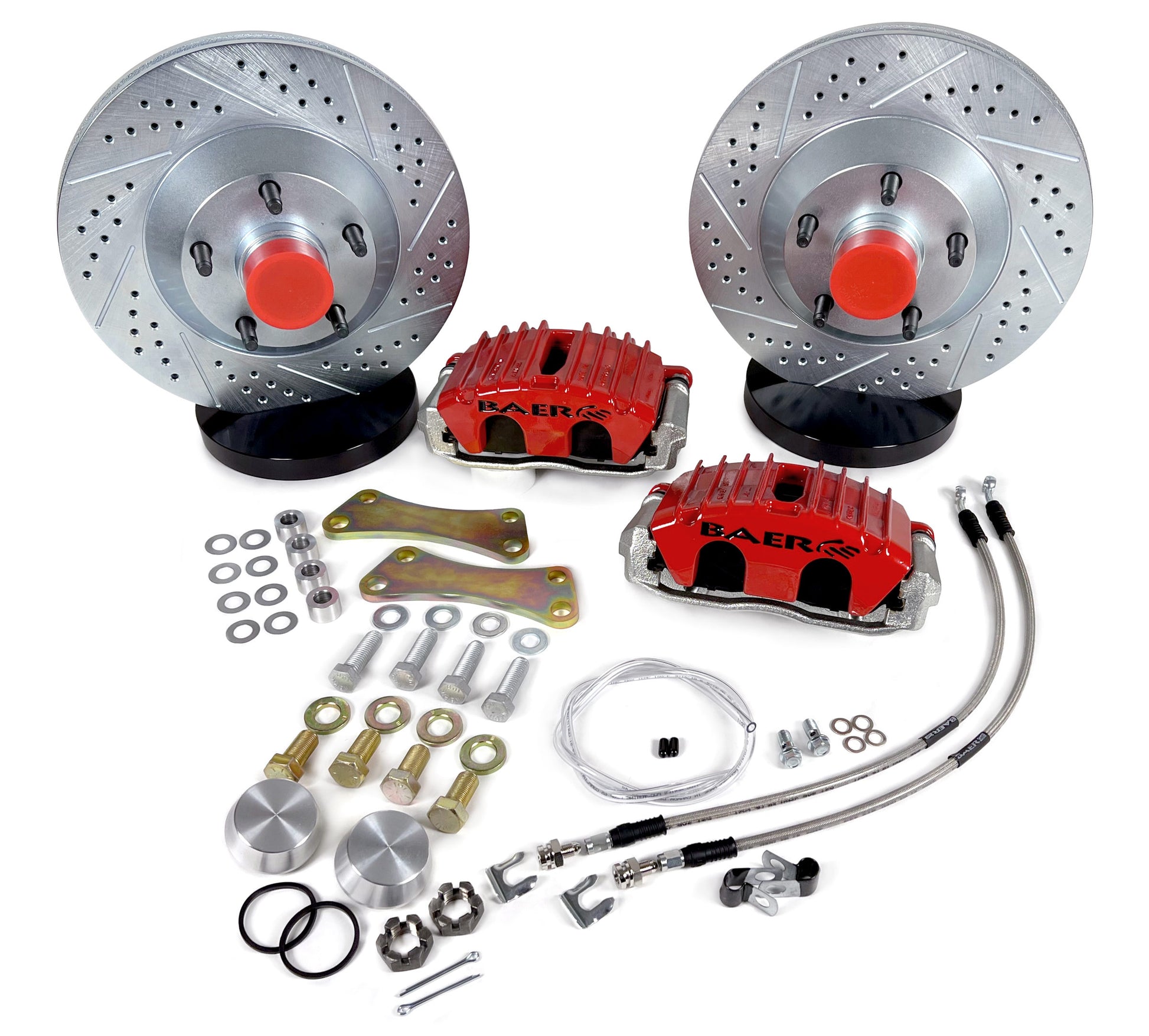

This Classic Series brake kit features an aluminum. 2-piston, pin drive caliper (PDC) mounted to a 13.150", 1-piece slot, drill, zinc plated integral hub rotor and is designed to fit vehicles using the CPP 2.5" nodular iron drop spindles. The caliper comes in a red powder coated finish with the Baer logo painted black, includes dust & weather seal's and uses the popular D0731 pad type. Rotors are ready to install with races installed and bearings packed with Redline synthetic grease. Dust caps, mounting brackets, stainless braided hoses and all necessary hardware are also included. This 13" Classic Series system fits most 17" or larger wheels.

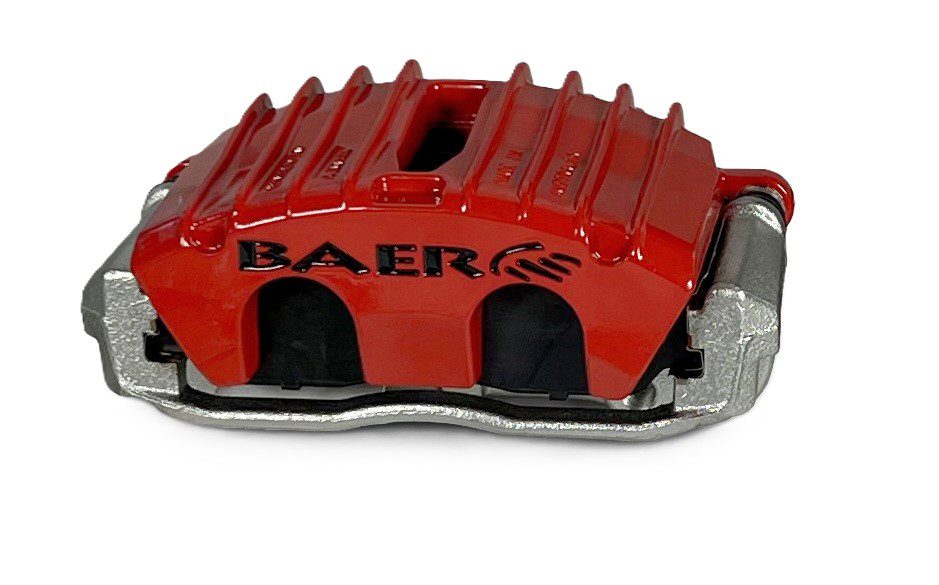

- Aluminum, 2-Piston, Pin Drive Caliper
- Red Powder Coated Caliper w/Black Baer Logo
- Slot, Drill, Zinc Plated Rotor Finish
- Stainless Braided Brake Hoses
- Uses Common FMSI D0731 Brake Pad
- Modern Brakes for Small Wheels at an Economical Price
Applications: GM C10 Trucks 60-87
Axle: Front
Brake Hose DOT Approved: Yes
Brand: Baer Brakes
Caliper: 2 PDC
Caliper Color: Red
Category: Brakes
Disc Brake Caliper (Front) Piston Quantity: 2
Disc Brake Caliper (Front) Type: Floating
Disc Brake Pad FMSI Number: D0731
Disc Brake Rotor (Front) Construction: Vented
Disc Brake Rotor (Front) Outside Diameter: 13.150
Emission Code: 6
Export Description: Brake Components
Fitment Notes: w/CPP 2.5 inch Drop Modular Spindle (5 Lug, 5x5BC)
Friction Material Composition: Ceramic
Grade Type: Performance
Hose Material: Stainless Steel
Lug Count: 5 Lug
Min Wheel Dia (verify using template): 17
part type: Disc Brake Upgrade Kit
Product Line: Classic
Product Type: 13 Inch Classic Front Brake Kit
Rotor Diameter: 13.150
Rotor Thickness: 1.150
Rotor Type: 1-Piece Integral Hub
Solid Or Vented Type Rotor: Vented
Sub Category: Service Kits
Surface Type: Slotted, Drilled & Zinc Plated
System Notes: Fits CPP 2.5" nodular drop spindles: CP30106-1 (1960-1962 C10), CP30106-2 (1963-1970 C10), CP30106-3 (1971-1972 C10) or CP30106-4 (1973-1987 C10)
Wheel Lug/Bolt Pattern: 5x5.00
Wheel Stud Size: 1/2-20 x 2.25 inch
