Baer Brakes 4301570B - Pro+ Brake System Front

Baer Brakes 4301570B - Pro+ Brake System Front

Baer Brakes | 4301570B
SKU: HKMJ-4301570B
$2,649.95 USD
$2,981.95 USD $2,649.95 USD
Sale Sold out
Shipping calculated at checkout.

20 in stock

Baer Brakes 4301570B - Pro+ Brake System Front

Baer Brakes 14" Pro+ Front Brake Kit, Black, SDZ

Fits 1960-87 Chevy/GMC 2WD 1/2 Ton Trucks w/Wilwood C10 Aluminum Modular Pro Spindles (Also fits CPP X10 Spindles)

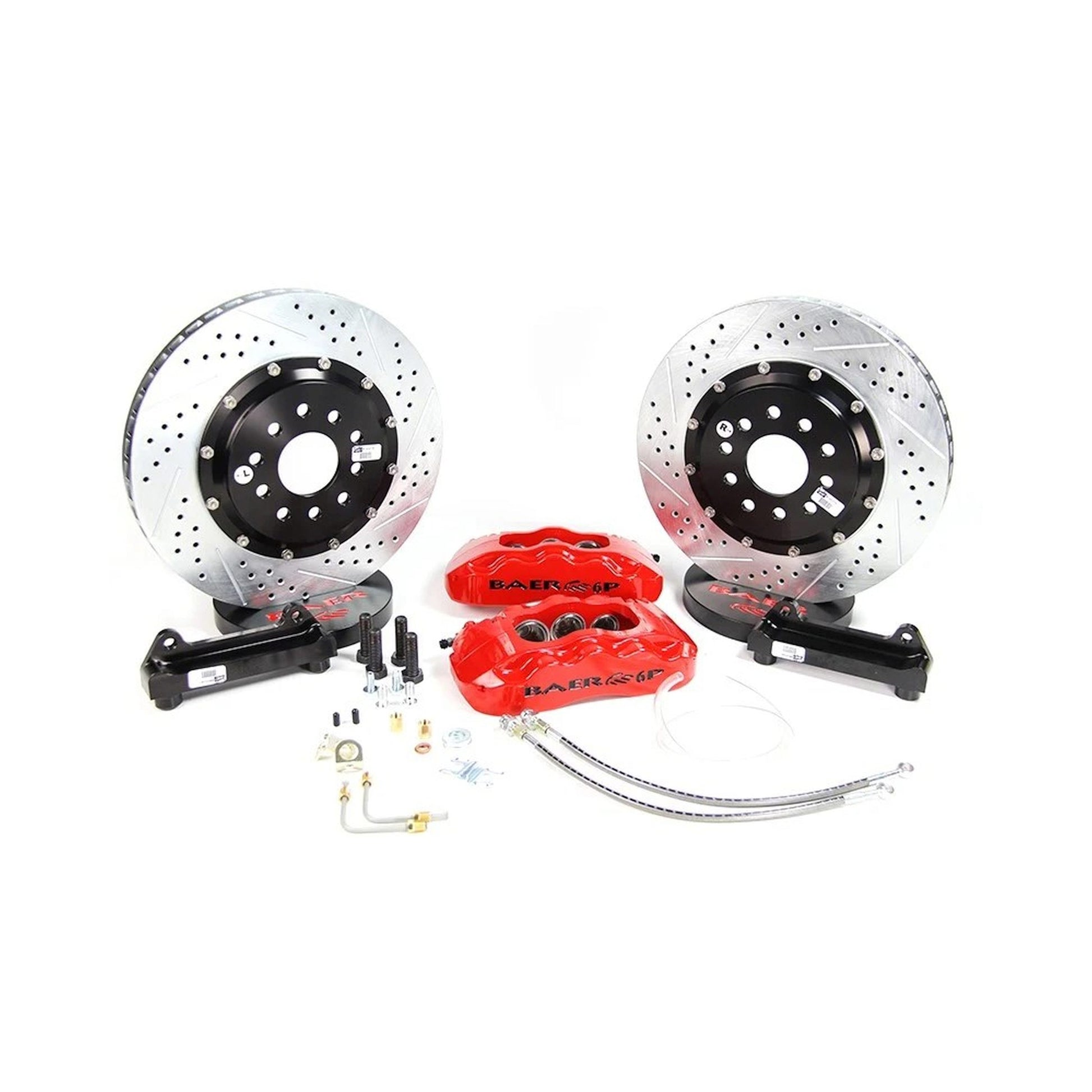

The Pro+ system comes with the 2-piece 6-piston, 6P caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Rotors are pre-assembled with NAS high grade stainless hardware and all mounting brackets, stainless braided hoses and hardware are also included. The 14" Pro+ is designed to fit most 18” or larger wheels.

  • 2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, AZ
  • CNC Machined from US Sourced Forged or Billet Aluminum
  • Powder Coated Finish
  • Stainless Steel Pistons, Abutments and Noise Suppression Clips
  • Staggered Pistons to Minimize Uneven Pad Wear
  • Dual Seals, Dust/Weather & Pressure
  • 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
Applications: GM C10 Trucks 60-87
Axle: Front
Brake Hose DOT Approved: Yes
Brand: Baer Brakes

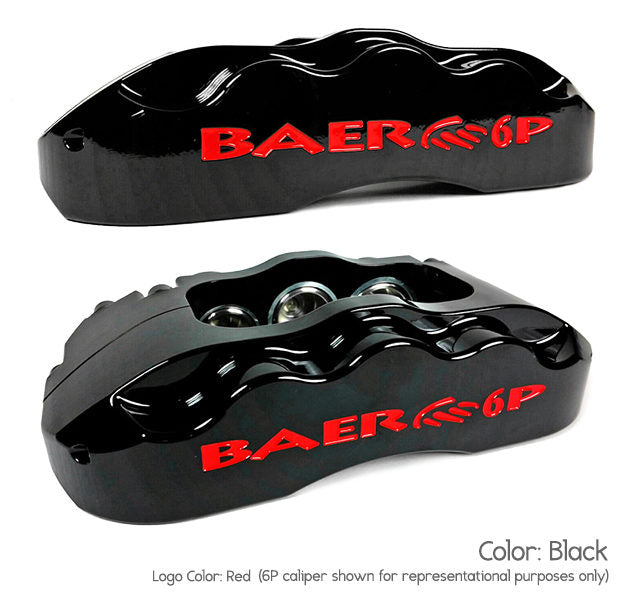

Caliper: 6P

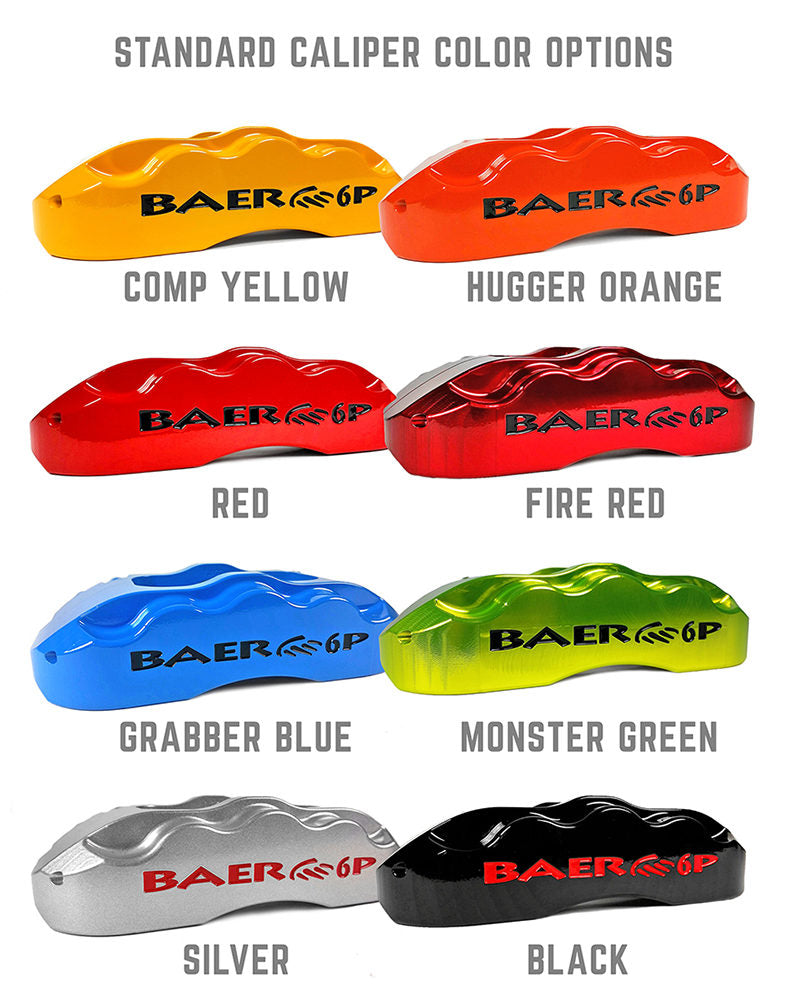

Caliper Color: Black
Category: Brake
Disc Brake Caliper (Front) Piston Quantity: 6
Disc Brake Caliper (Front) Type: Fixed
Disc Brake Pad FMSI Number: D0731
Disc Brake Rotor (Front) Construction: Vented
Disc Brake Rotor (Front) Outside Diameter: 14.000
Emission Code: 6
Export Description: Brake Components
Fitment Notes: w/CPP X10 Spindles
Fitment Notes: w/Wilwood C10 Aluminum Modular Pro Spindles
Grade Type: Performance
Hose Material: Steel Braided
Lug Count: 5 Lug
Min Wheel Dia (verify using template): 18
part type: Disc Brake Upgrade Kit
Product Line: 14 Inch Pro+
Product Type: 14 Inch Pro+ Front Brake Kit
Rotor Thickness: 1.150
Rotor Type: 2-Piece
Spindle Type: Wilwood C10 Alum Modular Pro
Spindles Included: No
Sub Category: Service Kits
Surface Type: Slotted, Drilled & Zinc Plated
System Notes: Fits Wilwood C10 Aluminum Modular Pro or CPP X10 hub pack spindles. Bolt on hub packs not included
Template: Q117P
Warning: California Proposition 65

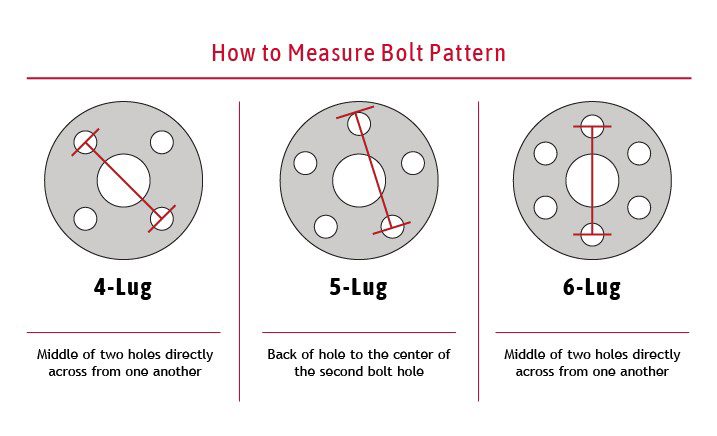

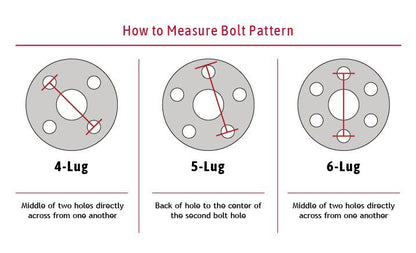

Wheel Lug/Bolt Pattern: 5x5.00
