Baer Brakes 4301454C - Deep Stage SS4+ Brake System Front

Baer Brakes 4301454C - Deep Stage SS4+ Brake System Front

Baer Brakes | 4301454C
SKU: HKMJ-4301454C
$0.00 USD
$0.00 USD $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Baer Brakes 4301454C - Deep Stage SS4+ Brake System Front

Front Brake Components Deep Stage SS4+ Brake System Front Dp Stg SS4+ FC NOhub Deep Stage SS4+ FC no hub S4 Clear SDZ Deep Stage Drag Racing. No hoses, Rotors not assembled. Requires 98-02 Spindle. Hub outside diameter needs to be 5.75in.

This system features the 4-piston, S4 caliper mounted to a 11" 2 piece slot, drill, zinc plated rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1 or HB100 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Mounting hardware is also included. The SS4+ Deep Stage system is the first drag race system designed specifically for heavy, fast cars that might also see street use. The 11" SS4+ Deep Stage system fits most 15” and larger wheels.

  • All the benefits of our larger brake systems just in a smaller package to fit 15" wheels

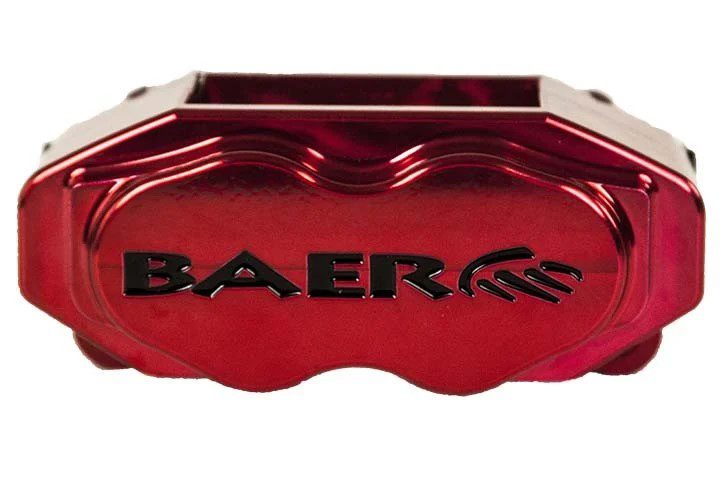

  • 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ
  • Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
  • Powder Coated Finish

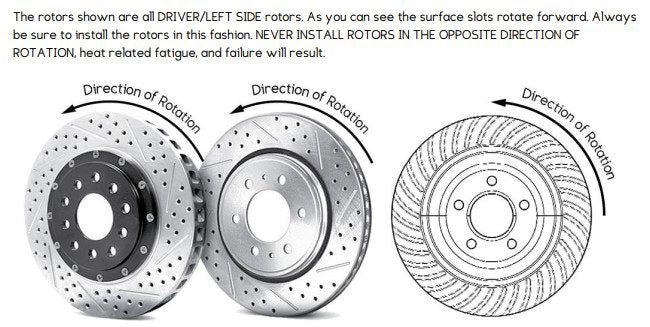

  • 2-Piece Slot, Drilled, Zinc-Plate Rotor
Applications: GM F-Body 98-02
Axle: Front
Brand: Baer Brakes
Caliper: S4
Caliper Color: Clear
Category: Brake
Disc Brake Caliper (Front) Piston Quantity: 4
Disc Brake Caliper (Front) Type: Fixed

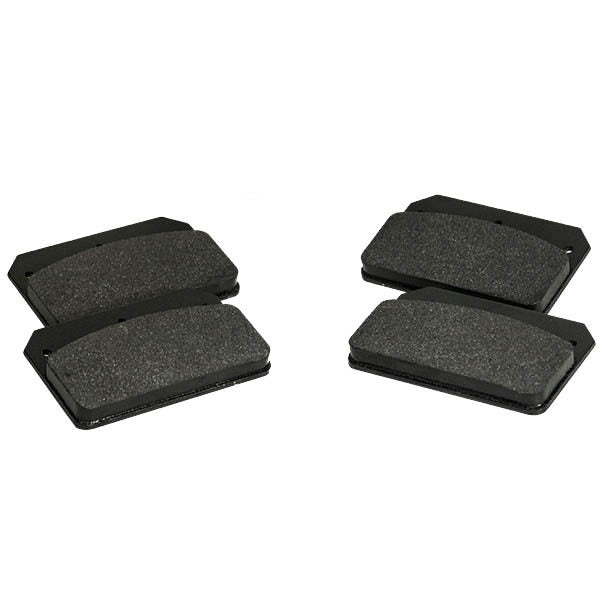

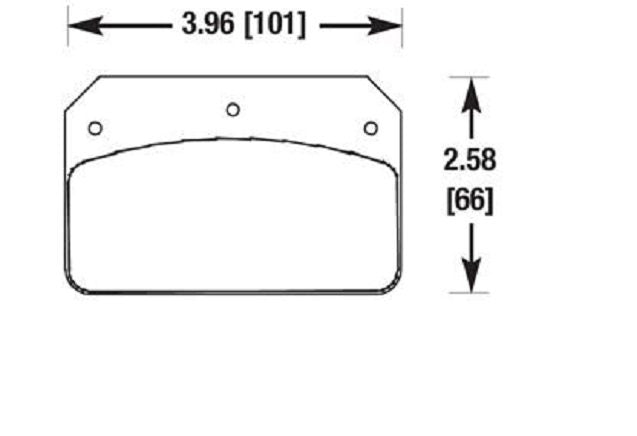

Disc Brake Pad FMSI Number: DR1
Disc Brake Rotor (Front) Construction: Vented
Disc Brake Rotor (Front) Outside Diameter: 11.000
Emission Code: 6
Export Description: Brake Components
Fitment Notes: w/OE Spindles & Hubs
Friction Material Composition: Semi-metallic
Grade Type: Performance
Hose Material: Hoses Not Included
Lug Count: 5 Lug
Min Wheel Dia (verify using template): 15
part type: Disc Brake Upgrade Kit
Product Line: SS4+ Deep Stage Front
Product Type: 11 Inch SS4+ Deep Stage Front Brake Kit
Rotor Thickness: 1.020
Rotor Type: 2-Piece
Solid Or Vented Type Rotor: Vented
Sub Category: Service Kits
Surface Type: Slotted, Drilled & Zinc Plated
System Notes: NOTE: This system comes equipped with a street compound pad that offers low noise and dust and are NOT suited for track use. Race compound pads are also available for track use, call for information.
System Notes: Max hub outer diameter of 5.75" is required for the rotor to fit, if larger machining will be required.
Template: S085A

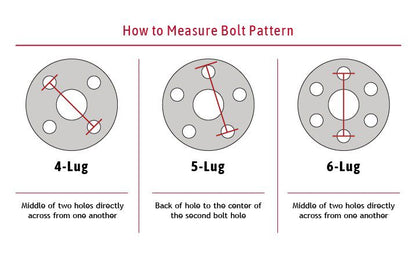

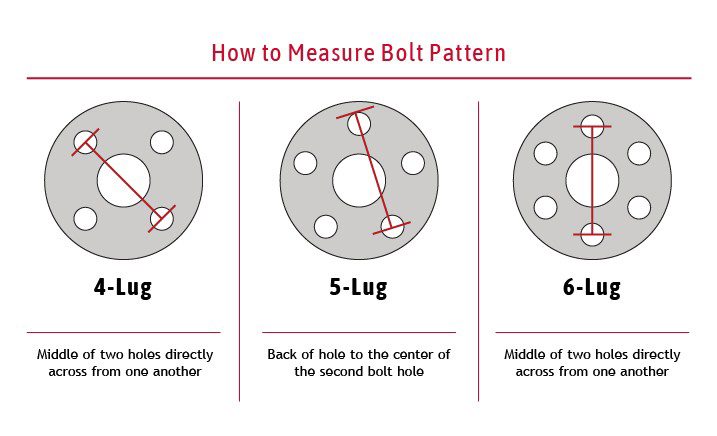

Wheel Lug/Bolt Pattern: 5x4.50, 5.4.75
