Baer Brakes - 4301179S
Pro+, Corvette C5/C6 based spndls (e.g.-DSE, RS, Morrison), leading caliper, SDZ
Fits 1963-82 C2/C3 Corvette w/DSE Speedray Front Suspension

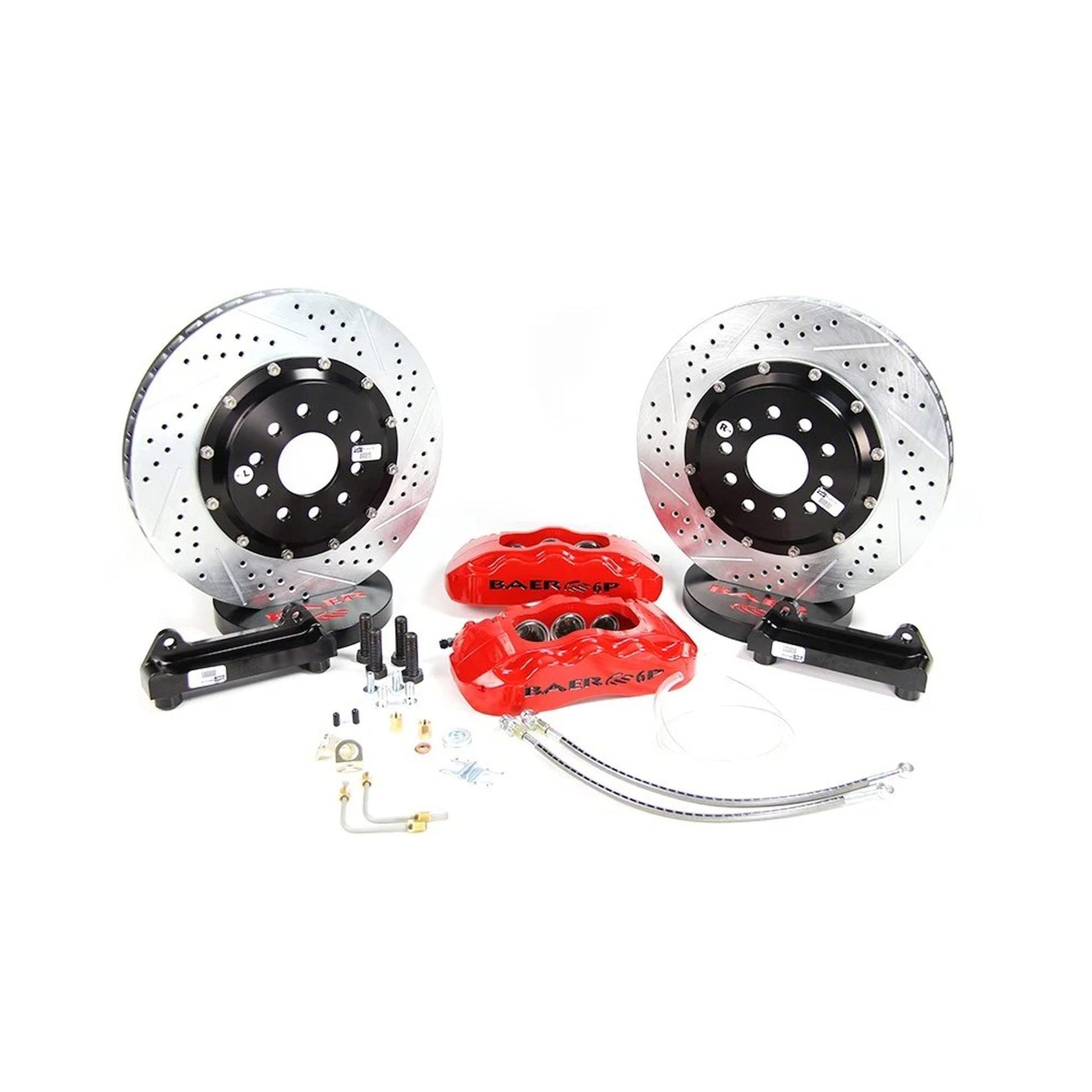

The Pro+ system was designed specifically for the DSE Speedray front suspension and features the 2-piece 6-piston, 6P caliper mounted in a leading position on a 14", 2 piece slot, drill, zinc plated rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Rotors are pre-assembled with NAS high grade stainless hardware and all mounting brackets, stainless braided hoses and hardware are also included. The 14" Pro+ is designed to fit most 18” or larger wheels.
- 2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
Applications: GM Chevy Corvette 69-82
Applications: GM Chevy Corvette 63-68
Axle: Front
Brand: Baer Brakes
Caliper: 6P

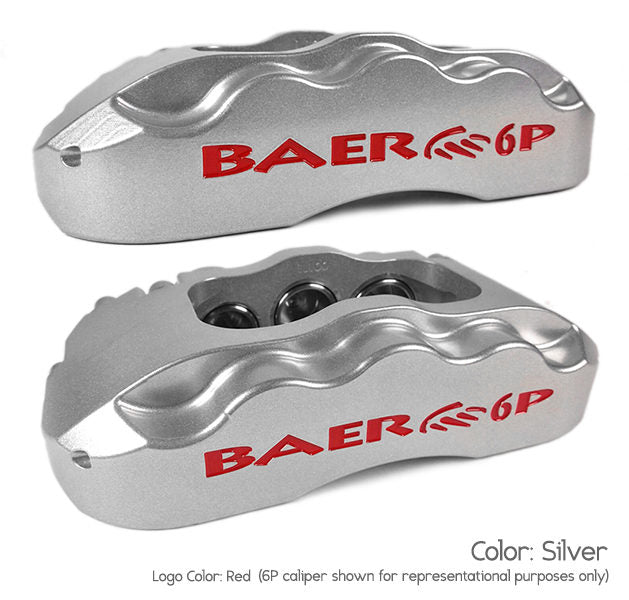

Caliper Color: Silver
Category: Brake
Disc Brake Caliper (Front) Piston Quantity: 6
Disc Brake Caliper (Front) Type: Fixed
Disc Brake Pad FMSI Number: D0731
Disc Brake Rotor (Front) Construction: Vented
Disc Brake Rotor (Front) Outside Diameter: 14.000
Emission Code: 6
Export Description: Brake Components
Fitment Notes: w/DSE Speedray Front Suspension
Grade Type: Performance
Hose Material: Stainless Steel
Lug Count: 5 Lug
Min Wheel Dia (verify using template): 18
part type: Disc Brake Upgrade Kit
Product Line: 14 Inch Pro+
Product Type: 14 Inch Pro+ Front Brake Kit
Rotor Thickness: 1.150
Rotor Type: 2-Piece
Spindle Type: DSE C2/C3 Speedray
Spindles Included: No
Sub Category: Service Kits
Surface Type: Slotted, Drilled & Zinc Plated
System Notes: Designed for use with DSE C2/C3 Speedray Front Suspension (Caliper is Leading)
Template: Q040P

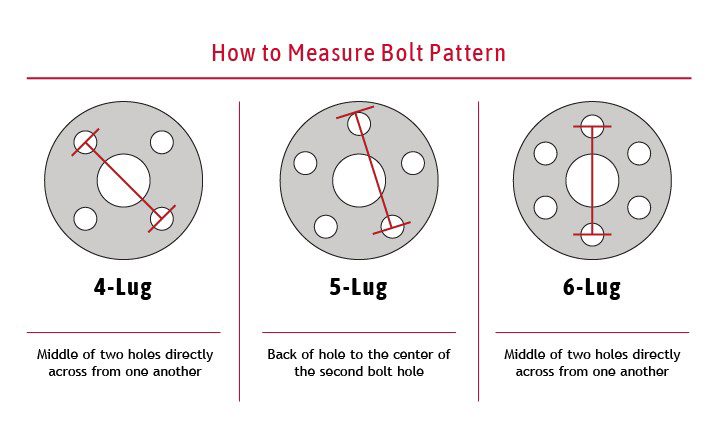

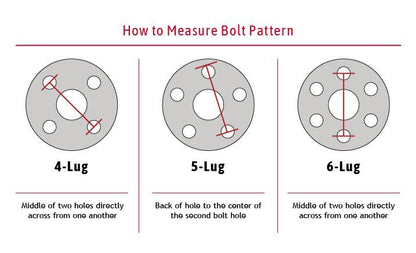

Wheel Lug/Bolt Pattern: 5x4.50/5x4.75
