Baer Brakes - 4261639B
Baer Brakes 13" Pro Front Brake Kit, Black, SDZ
Fits 1968-69 Ford Mustang, Fairlane, Falcon, Torino & Mercury Comet, Cougar, Cyclone w/OE Disc Brake Spindle

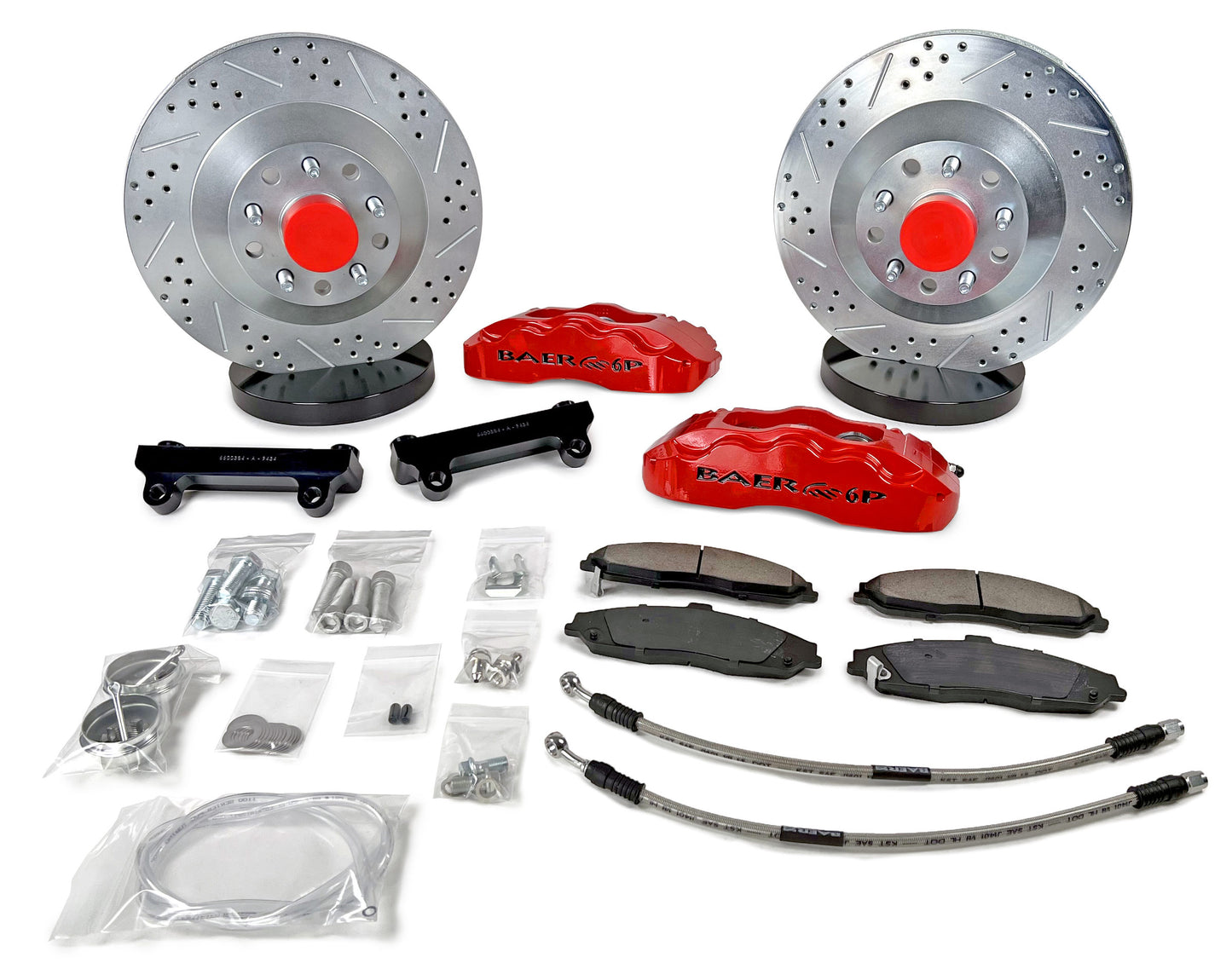

This system features the 6-piston, 6P caliper mounted to a 13", 1-piece slot, drill, zinc plated integral hub rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Rotors come with bearing races installed and premium bearings packed with Redline synthetic grease and new dust caps. All mounting brackets, stainless braided hoses and hardware are also included. The 13" Pro is designed to fit most 17” or larger wheels.

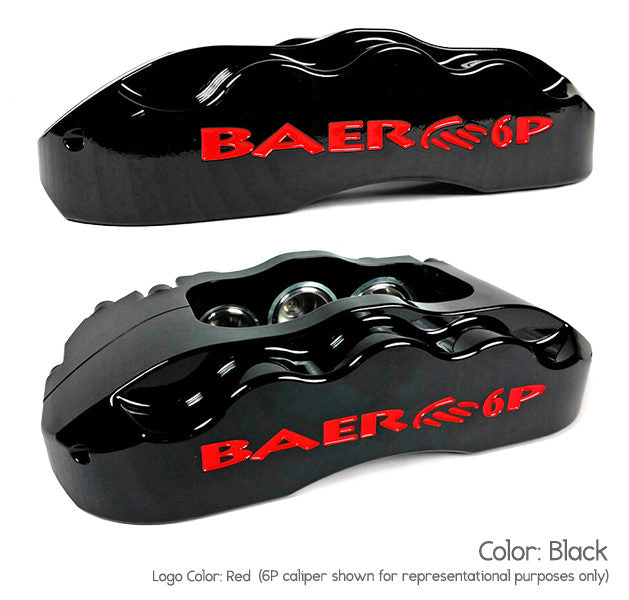

- 2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure

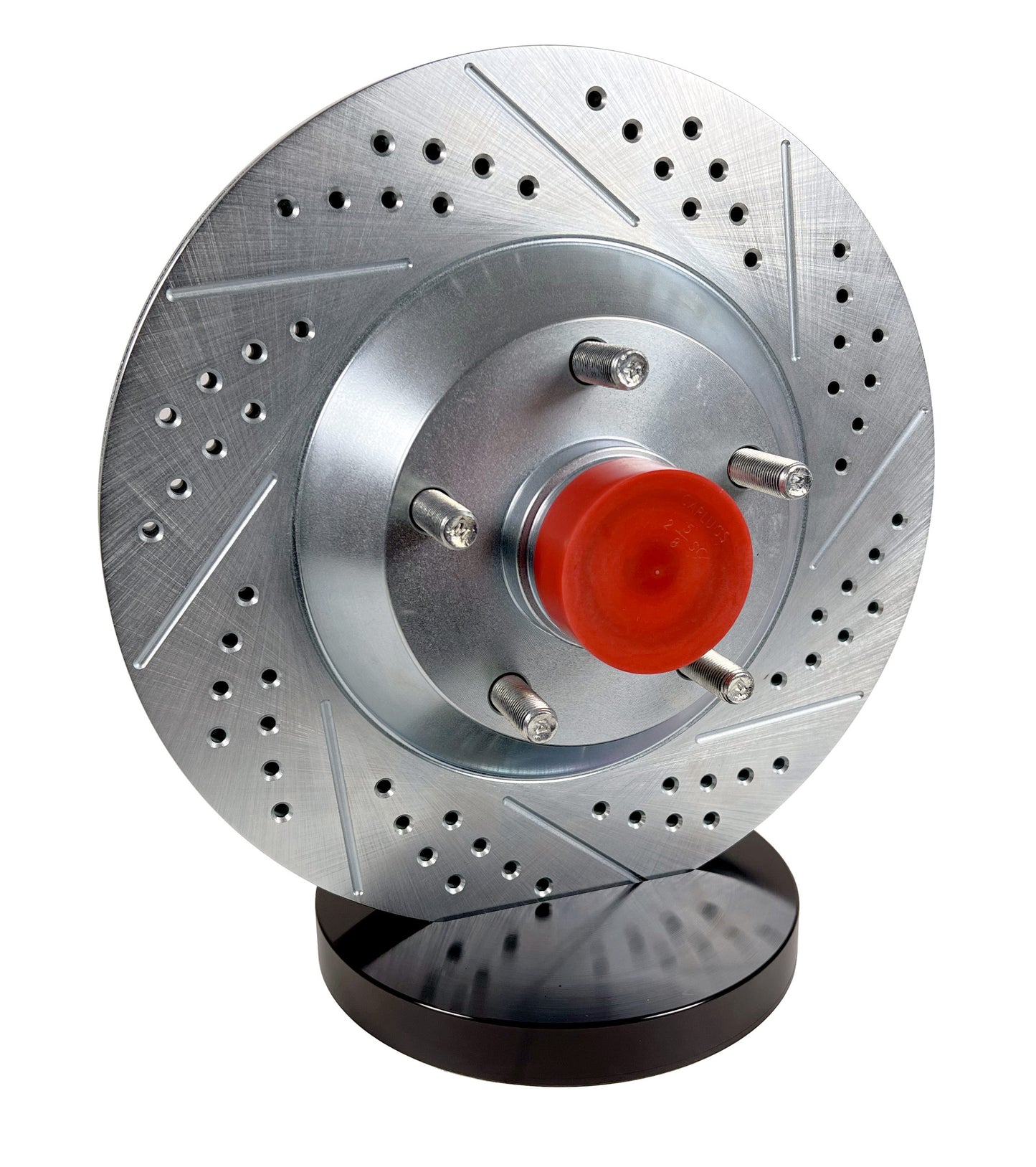

- 1-Piece Slot, Drilled, Zinc-Plated Integral Hub Rotor
Applications: Ford Falcon 68-69 (w/Disc)
Applications: Ford Mustang 68-69 (w/Disc)
Applications: Mercury Cyclone 68-69 (w/Disc)
Applications: Mercury Cougar 68-69 (w/Disc)
Applications: Ford Fairlane 68-69 (w/Disc)
Applications: Ford Torino 68-69 (w/Disc)
Applications: Mercury Comet 68-69 (w/Disc)
Axle: Front
Brand: Baer Brakes
Caliper: 6P
Caliper Color: Black
Category: Brake
Disc Brake Caliper (Front) Piston Quantity: 6
Disc Brake Caliper (Front) Type: Fixed
Disc Brake Pad FMSI Number: D0731
Disc Brake Rotor (Front) Construction: Vented
Disc Brake Rotor (Front) Outside Diameter: 13.000
Emission Code: 6
Export Description: Brake Components
Fitment Notes: w/OE Disc Brake Spindles
Grade Type: Performance
Hose Material: Stainless Steel
Lug Count: 5 Lug
Min Wheel Dia (verify using template): 17
part type: Disc Brake Upgrade Kit
Product Line: 13 Inch Pro
Product Type: 13 Inch Pro Front Brake Kit
Rotor Thickness: 1.100
Rotor Type: 1-Piece Integral Hub
Sub Category: Service Kits
Surface Type: Slotted, Drilled & Zinc Plated
System Notes: Designed to be used with OE Ford spindles
Template: Q082H

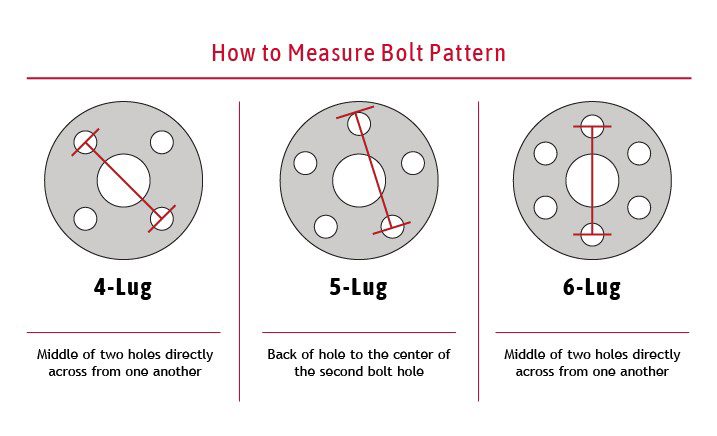

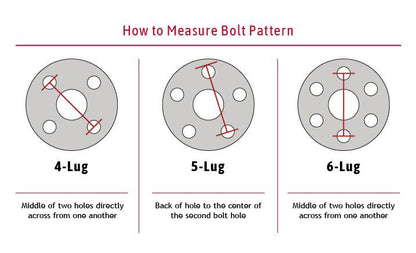

Wheel Lug/Bolt Pattern: 5x4.50
Wheel Stud Size: 1/2-20 x 2.25 inch
