Baer Brakes - 4261638R
Baer Brakes 13" Pro Front Brake Kit, Red, SDZ
Fits 1965-69 Ford Mustang, 62-69 Fairlane, 63-69 Falcon, 1969 Torino & 1967-69 Mercury Cougar, 66-69 Comet, 1969 Cyclone w/OE Drum Brake Spindles, Also Fits 1967 Ford Mustang and Mercury Cougar w/OE Disc Brake Spindles

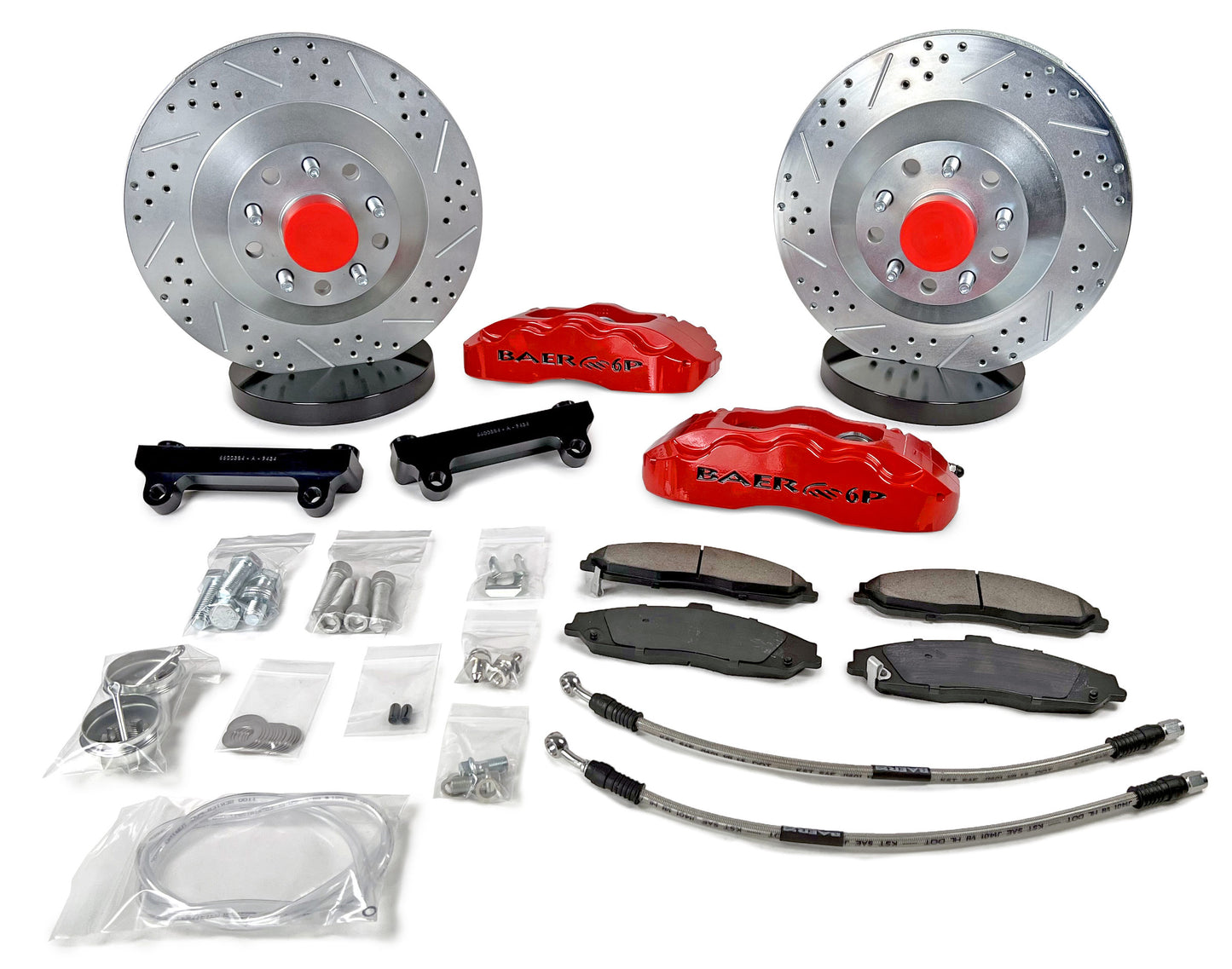

This system features the 6-piston, 6P caliper mounted to a 13", 1-piece slot, drill, zinc plated integral hub rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Rotors come with bearing races installed and premium bearings packed with Redline synthetic grease and new dust caps. All mounting brackets, stainless braided hoses and hardware are also included. The 13" Pro is designed to fit most 17” or larger wheels.
- 2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure

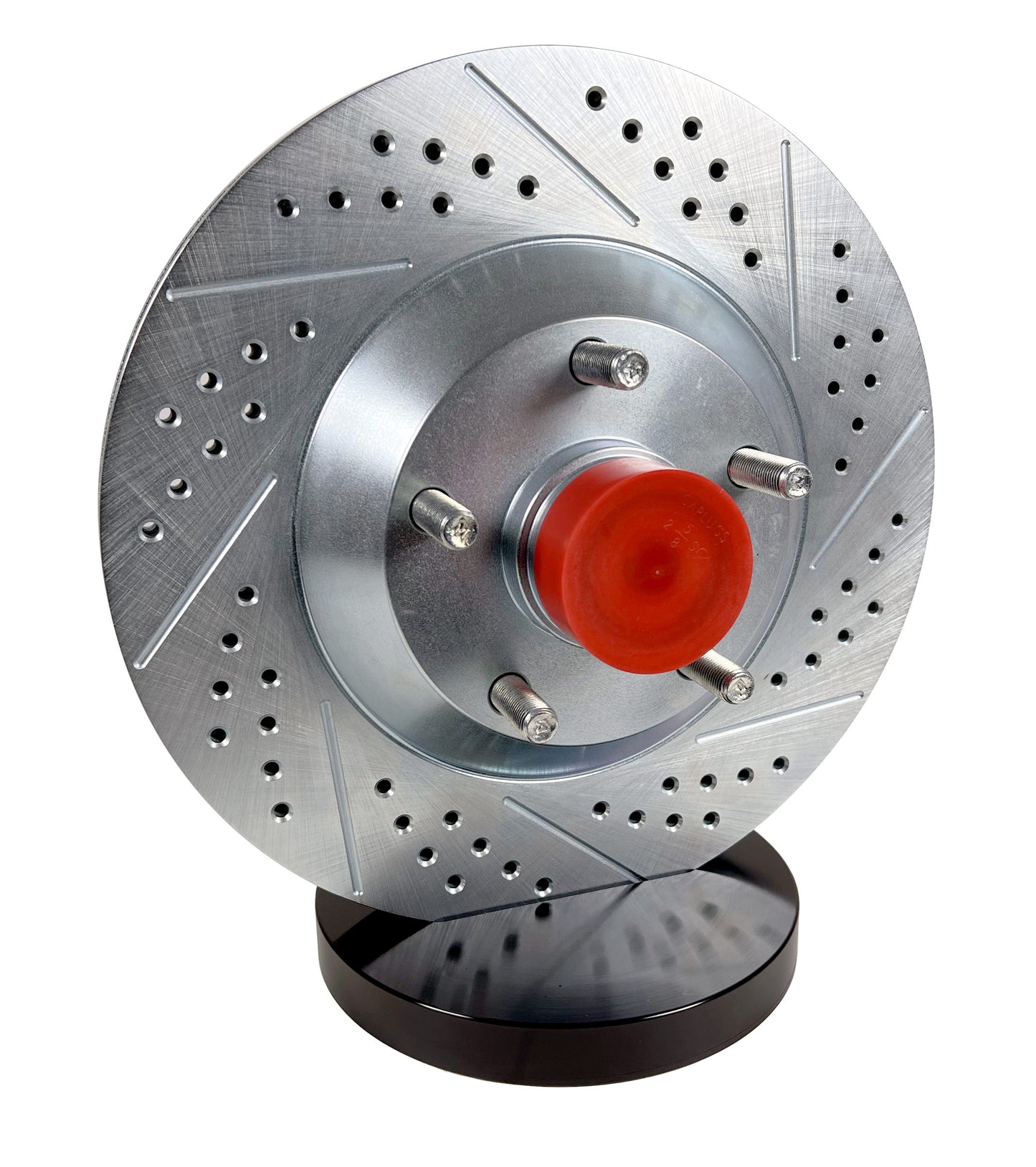

- 1-Piece Slot, Drilled, Zinc-Plated Integral Hub Rotor
Applications: Ford Fairlane 62-69 (w/Drum)
Applications: Mercury Comet 66-69 (w/Drum)
Applications: Ford Mustang 65-69 (w/Drum)
Applications: Ford Mustang 67 (w/Disc)
Applications: Ford Torino 69 (w/Drum)
Applications: Mercury Cougar 67-69 (w/Drum)
Applications: Mercury Cyclone 69 (w/Drum)
Applications: Mercury Cougar 67 (w/Disc)
Applications: Ford Falcon 63-69 (w/Drum)
Axle: Front
Brand: Baer Brakes

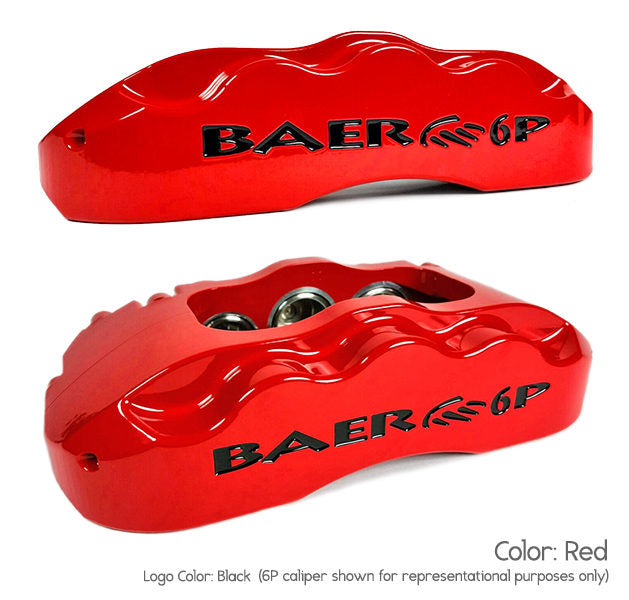

Caliper: 6P

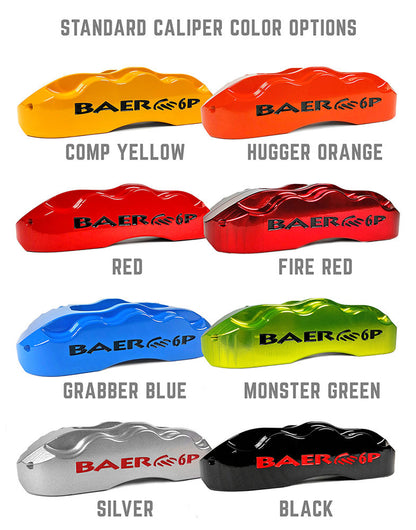

Caliper Color: Red
Category: Brake
Disc Brake Caliper (Front) Piston Quantity: 6
Disc Brake Caliper (Front) Type: Fixed
Disc Brake Pad FMSI Number: D0731
Disc Brake Rotor (Front) Construction: Vented
Disc Brake Rotor (Front) Outside Diameter: 13.000
Emission Code: 6
Export Description: Brake Components
Fitment Notes: w/OE Drum Brake Spindles
Fitment Notes: w/OE Disc Brake Spindles
Grade Type: Performance
Hose Material: Stainless Steel
Lug Count: 5 Lug
Min Wheel Dia (verify using template): 17
part type: Disc Brake Upgrade Kit
Product Line: 13 Inch Pro
Product Type: 13 Inch Pro Front Brake Kit
Rotor Thickness: 1.100
Rotor Type: 1-Piece Integral Hub
Sub Category: Service Kits
Surface Type: Slotted, Drilled & Zinc Plated
System Notes: Designed to be used with OE Ford spindles
Template: Q082H

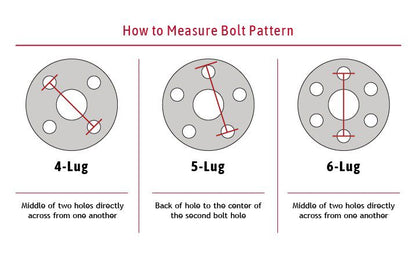

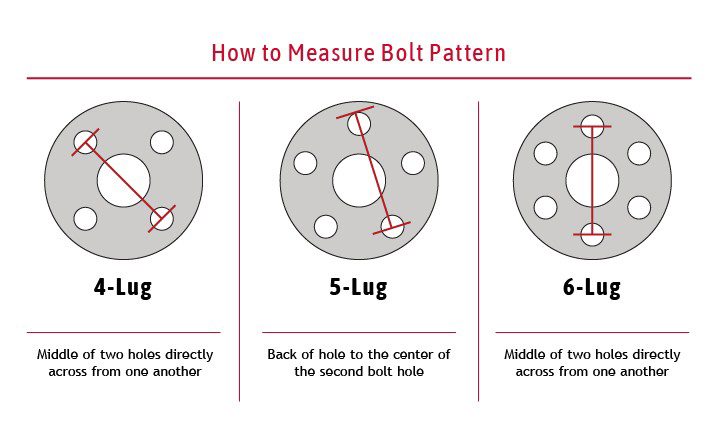

Wheel Lug/Bolt Pattern: 5x4.50
Wheel Stud Size: 1/2-20 x 2.25 inch
