Baer Brakes - 4261636DS-2
Baer Brakes 13.5" 6T Front Brake Kit, Desert Sand, SDZ
Fits 2010-2025 Ford F150 2/4WD
This system features the 6-piston, 6T caliper mounted to a 13.5", 1-piece slotted and zinc-plated rotor. The 6T caliper has D.O.T compliant dust and weather seals and uses the popular D1247 pad type. Rotors are purpose cast using only premium materials and feature a curved vane design for optimum cooling, consistant braking and reduced brake fade. All mounting brackets, stainless braided hoses* and hardware are also included. The 13.5" 6T Brake kits are designed to fit most 17” or larger wheels. NOTE: Hoses included are for stock height vehicles, lifted vehicles may require longer hoses.

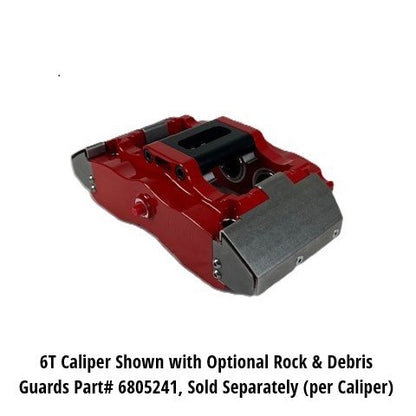

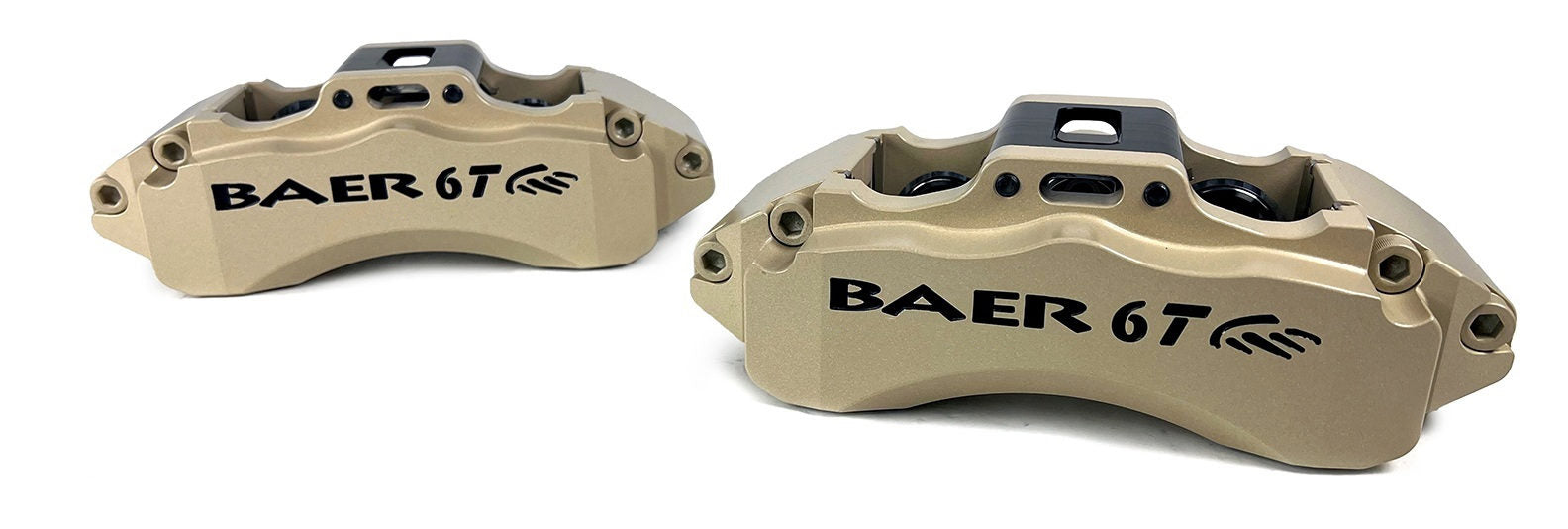

- 2-Piece, 6-Piston, Direct Mount, 6T Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 1-Piece Slotted & Zinc-Plated Rotor
Applications: Ford F150 10-25
Axle: Front
Brake Hose DOT Approved: Yes
Brand: Baer Brakes
Caliper: 6T
Caliper Color: Desert Sand
Category: Brake
Disc Brake Caliper (Front) Piston Quantity: 6
Disc Brake Caliper (Front) Type: Fixed, Direct Mount
Disc Brake Pad FMSI Number: D1247
Disc Brake Rotor (Front) Construction: Vented
Disc Brake Rotor (Front) Outside Diameter: 13.500
Emission Code: 6
Export Description: Brake Components
Friction Material Composition: Semi-metallic
Grade Type: Performance
Hose Material: Stainless Steel
Lug Count: 6 Lug
Min Wheel Dia (verify using template): 17
part type: Disc Brake Upgrade Kit
Product Line: 13.5 Inch 6T
Product Type: 13.5 Inch 6T Front Brake Kit
Rotor Thickness: 1.2500
Rotor Type: 1-Piece
Solid Or Vented Type Rotor: Vented
Sub Category: Service Kits
Surface Type: Slotted & Zinc Plated
System Notes: Brake hoses included are designed for stock height vehicles, lifted vehicles may require longer hoses.
System Notes: Fits OE Front Knuckles & Hubs
Template: O080M

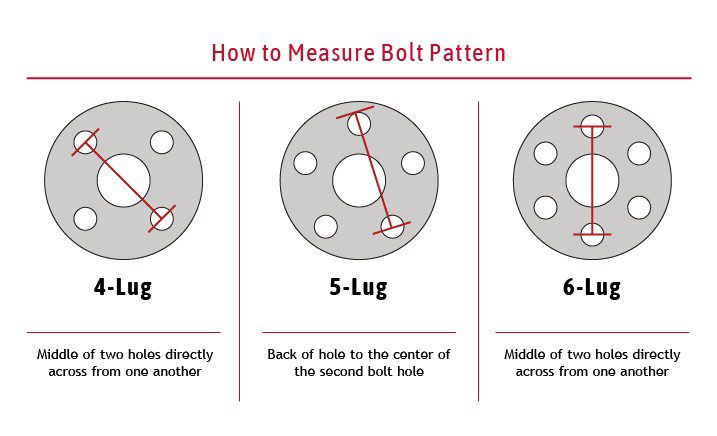

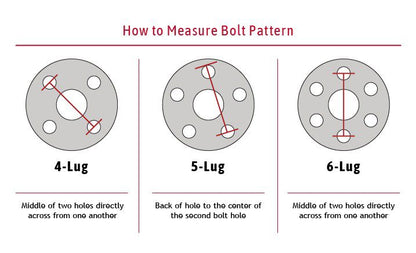

Wheel Lug/Bolt Pattern: 6x5.312
