Baer Brakes - 4261565R
Brake Components Classic Series Front Big Brake System
Fits 1970-73 Ford Mustang, 70-71 Fairlane, 70 Falcon, 70-74 Maverick, 70-71 Torino and 1970-73 Mercury Cougar, 70-74 Comet, 70-71 Montego and 70-71 Cyclone (all w/OE Disc or Drum Brake Spindles)

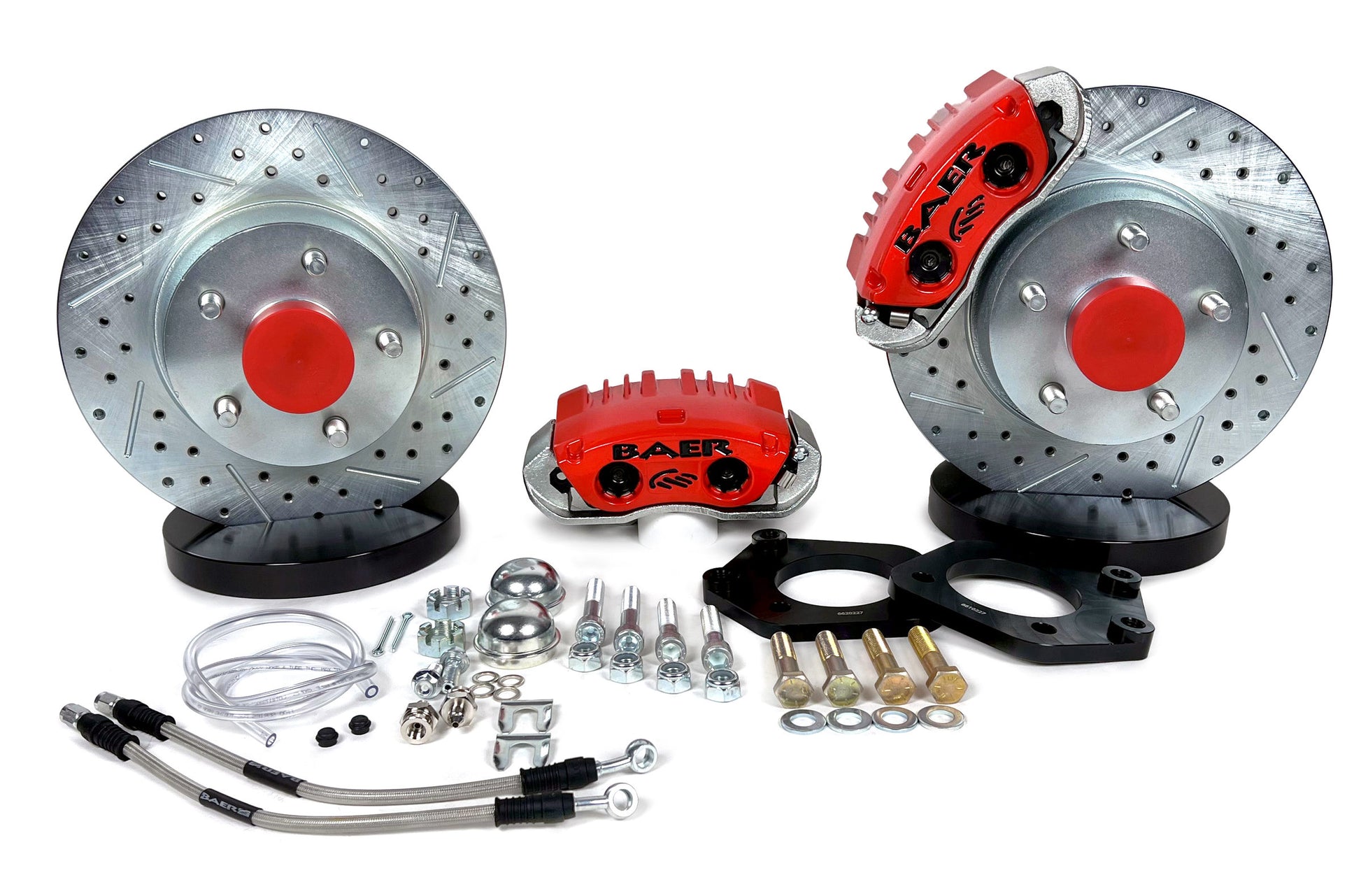

Complete System, we pride ourselves on delivering complete and detail oriented performance brake solutions to our consumers. We do not cut any corners. To give an example of this, we assemble the hubs prior to sending them to you, installing all the bearings and races, packing them with Redline synthetic grease. When we send you your brake system, everything is already installed, all you have to do it bolt it onto the control arms.

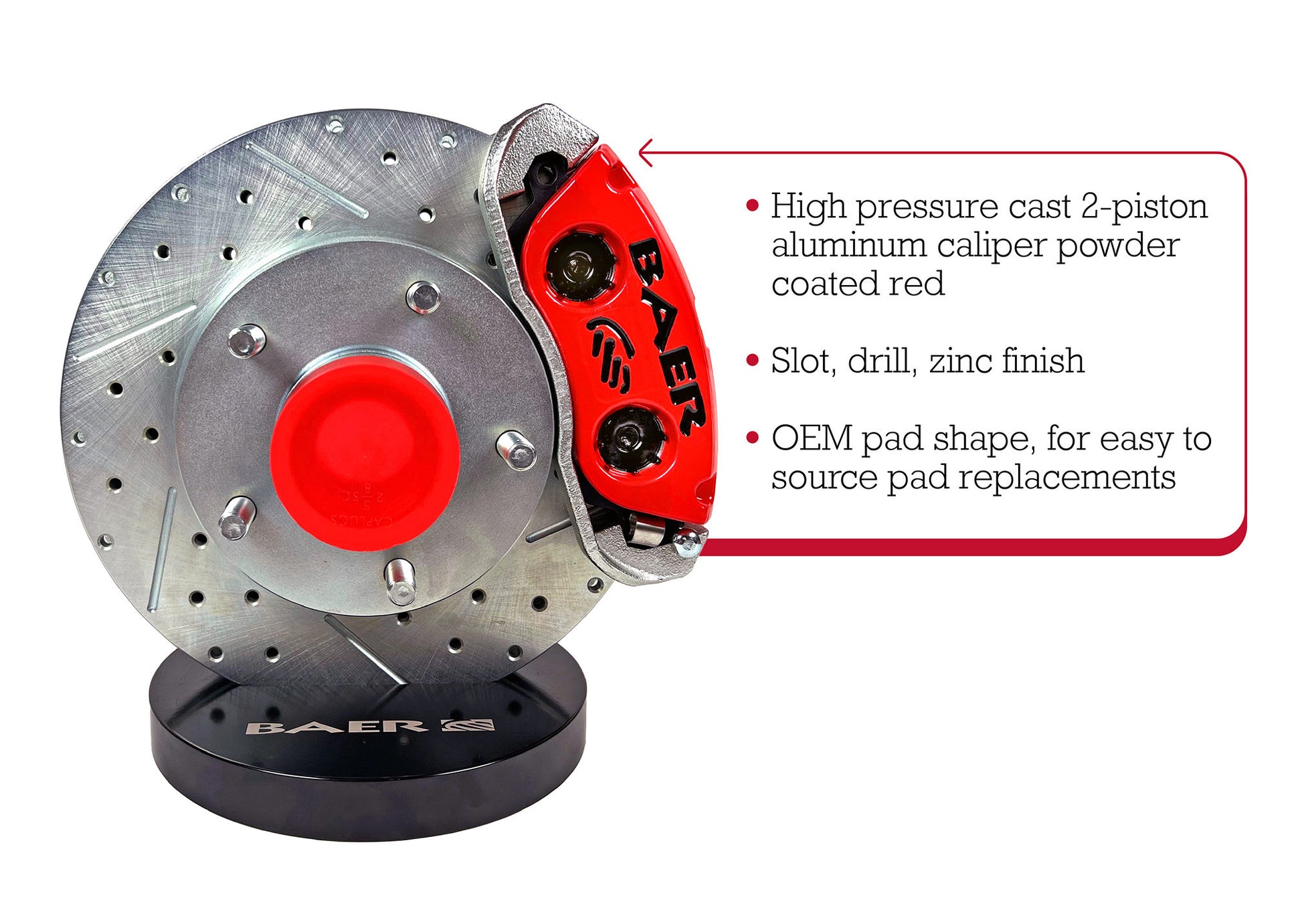

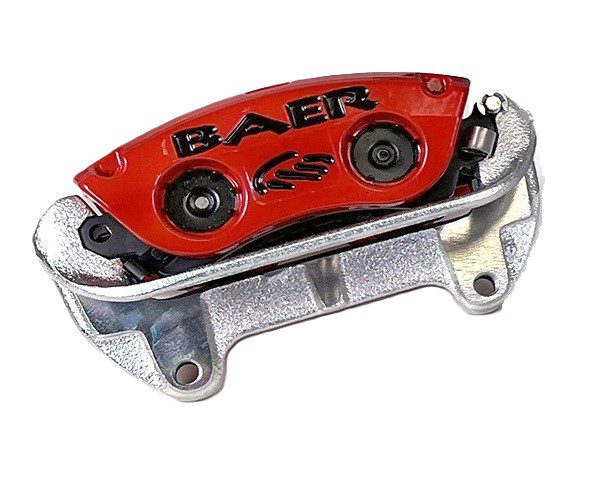

- Aluminum, 2-Piston, Pad Guided Caliper
- Red Powder Coated Caliper w/Black Baer Logo
- Slot, Drill, Zinc Plated Rotor Finish
- Stainless Braided Brake Hoses
- Uses Common FMSI D0412 Brake Pad
- Modern Brakes for Small Wheels at an Economical Price
Applications: Ford Fairlane 70 (w/Disc)
Applications: Ford Mustang 70-73 (w/Drum)
Applications: Ford Mustang 71-73 (w/Disc)
Applications: Mercury Cougar 71-73 (w/Disc)
Applications: Mercury Montego 70-71 (w/Disc)
Applications: Mercury Cyclone 70-71 (w/Disc)
Applications: Mercury Cyclone 70 (w/Drum)
Applications: Mercury Cougar 70-73 (w/Drum)
Applications: Ford Fairlane 70 (w/Drum)
Applications: Mercury Montego 70-71 (w/Drum)
Applications: Ford Maverick 70-74 (w/Drum)
Applications: Ford Torino 70-71 (w/Disc)
Applications: Mercury Comet 71-74 (w/Drum)
Applications: Ford Mustang 70 (w/Disc)
Applications: Ford Falcon 70 (w/Drum)
Applications: Ford Torino 70-71 (w/Drum)
Applications: Mercury Cougar 70 (w/Disc)
Axle: Front
Box Count: 2
Brake Hose DOT Approved: Yes
Brand: Baer Brakes
Caliper: 2 PGC
Caliper Color: Red
Category: Brake
Disc Brake Caliper (Front) Piston Quantity: 2
Disc Brake Caliper (Front) Type: Floating
Disc Brake Pad FMSI Number: D0412
Disc Brake Rotor (Front) Construction: Vented
Disc Brake Rotor (Front) Outside Diameter: 11.290
Emission Code: 6
Export Description: Brake Components
Fitment Notes: w/OE Disc Brake Spindles
Fitment Notes: w/OE Drum Brake Spindles
Friction Material Composition: Ceramic
Grade Type: Performance
Hose Material: Stainless Steel
Lug Count: 5 Lug
Min Wheel Dia (verify using template): 15
part type: Disc Brake Upgrade Kit
Product Line: Classic
Product Type: 11 Inch Classic Front Brake Kit
Rotor Diameter: 11.290
Rotor Thickness: .940
Rotor Type: 1-Piece Integral Hub
Solid Or Vented Type Rotor: Vented
Sub Category: Service Kits
Surface Type: Slotted, Drilled & Zinc Plated
System Notes: 5 Lug, 70-74 Disc/Drum Spindles
Template: D200A

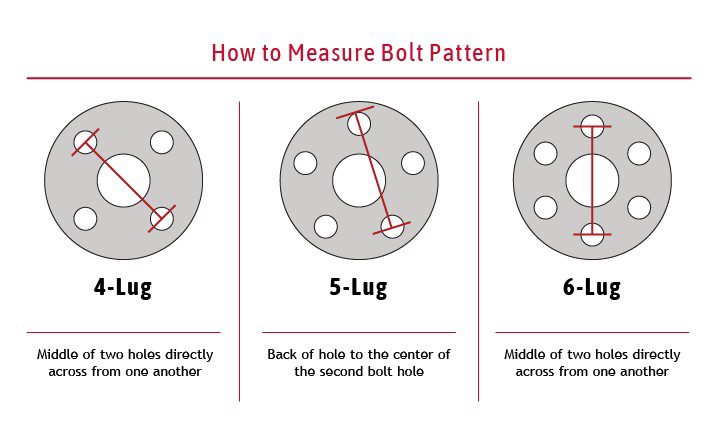

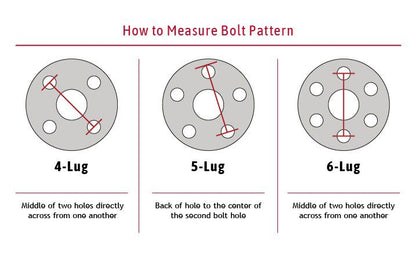

Wheel Lug/Bolt Pattern: 5x4.50
Wheel Stud Size: 1/2-20
