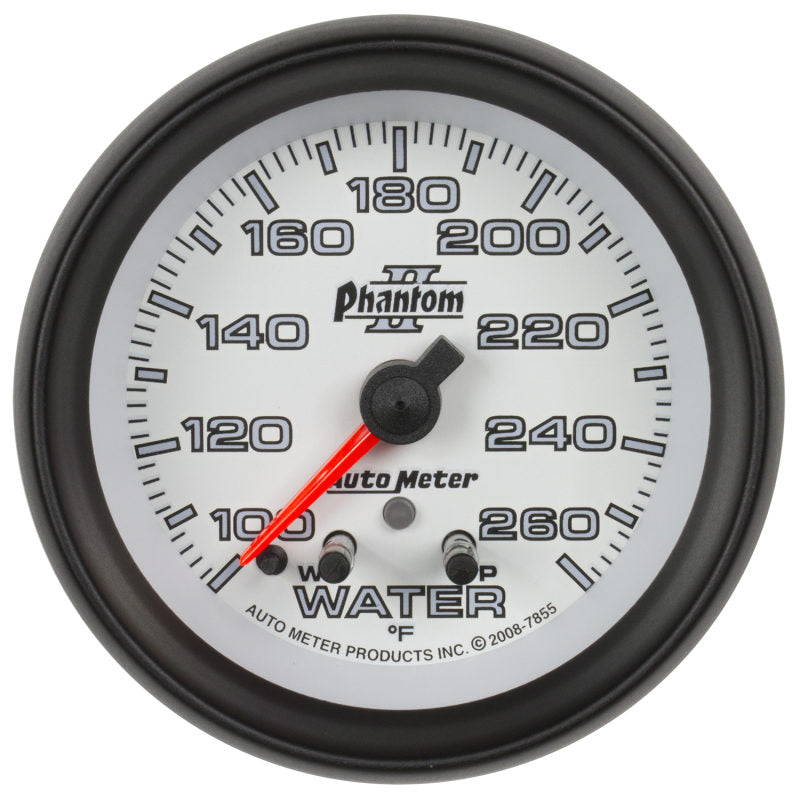

AutoMeter 7855 - Phantom II 2-5/8in 260 Degree F Mechanical Water Gauge

AutoMeter 7855 - Phantom II 2-5/8in 260 Degree F Mechanical Water Gauge

AutoMeter | 7855
SKU: AM-7855
Regular price $203.99 USD
Regular price $224.39 USD Sale price $203.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

AutoMeter 7855 - Phantom II 2-5/8in 260 Degree F Mechanical Water Gauge

GAUGE,WATER TEMP,2 1/16",260 Degrees F,STEPPER MOTOR W/ PEAK & WARN,PHANTOM II

Modern white LED through-the-dial lighting provides clear visibility during nighttime use

Engines don't like high water temperatures, Heat is the enemy of performance and reliability. Keep tabs on your temps with the most accurate, quickest responding water temperature gauge on the market. AutoMeter's advanced 1/8 in. NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation.

  • Modern White LED Through-The-Dial Lighting
  • 12 And 16V Compatible
  • Incl. Data Acquisition Grade Temp Sender
  • Incl. 1/8 in. NPT Temp Sender
  • Incl. 3/8 And 1/2 in. NPT Adapters
  • Incl. Wiring Harness
  • Incl. Mounting Hardware/Instructions
  • Set Custom Alerts Specific To Your Vehicle
  • One-Touch Peak Recall
  • Digital Stepper Motor Provides Unmatched Accuracy
Series: PHANTOM II
Dial Color: White
Lens Style: Flat, Clear
Size - Standard - IN: 2-5/8"
Cup/Hole Size - Metric - MM: 66.7mm
Cup/Hole Size - Standard - IN: 2-5/8"
Size - Metric - MM: 66.7mm
Bezel Style: Super Bezel
Bezel Color: Black
Outer Bezel Diameter - Standard: 2-5/8"
Outer Bezel Diameter: 2-7/8"
Lighting Type: LED
Lighting Color: White
Pointer Color: Fluorescent Red
Movement: Electric, Digital Stepper Motor
Gauge Type: Water Temperature
Range: 100-260 °F
Includes Sensor Unit: 2252
Includes Adapter/Fitting: 3/8" NPT and 1/2" NPT adapter fittings
Includes Wire Harness: 5226
Includes Mounting Hardware: 3245
Cross Sell: 2277, 2278, 2280, 2281, 2282, 2283
Upsell: 2277, 2278, 2280, 2281, 2282, 2283
Related Item: 2160, BEX-3000, EP-800, 0423XL
