AutoMeter 7175 - C2 52mm Electronic Air Fuel Gauge

AutoMeter 7175 - C2 52mm Electronic Air Fuel Gauge

AutoMeter | 7175
SKU: AM-7175
Regular price $101.99 USD
Regular price $112.19 USD Sale price $101.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

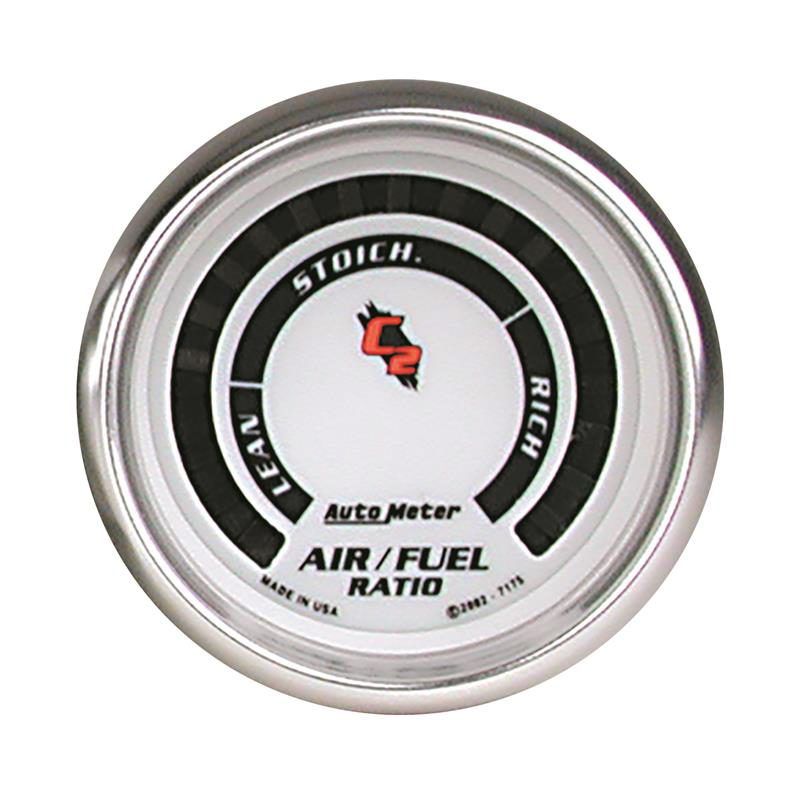

AutoMeter 7175 - C2 52mm Electronic Air Fuel Gauge

GAUGE; AIR/FUEL RATIO-NARROWBAND; 2 1/16in.; LEAN-RICH; LED ARRAY; C2

Compatible with factory narrowband O2 sensors (0-1V)

Running too lean while enjoying spirited driving in your vehicle is one of the leading causes of expensive engine damage. AutoMeter's Narrowband Air/Fuel Gauges pair with older Oxygen Sensors to warn of lean burn conditions under heavy engine load. Connects directly to the factory O2 sensor on many applications, or uses the AutoMeter 2244 Narrowband O2 sensor. Not compatible with 5 wire air/fuel sensors.

  • Provides Ultimate Style And Visibility
  • Futuristic Red Point Look
  • Precision Movement And Extreme Accuracy
  • 1 Year Limited Warranty
  • Compatible w/ Factor Narrow Band O2 Sensors
  • May Require PN[2244] If Factory O2 Not Available
  • Will Work w/Wideband O2 Sensors 0-5V
Series: C2
Dial Color: White
Lens Style: Flat, Clear
Bezel Color: Bright Anodized
Bezel Style: Super Bezel
Size - Metric - MM: 52.4mm
Size - Standard - IN: 2-1/16"
Cup/Hole Size - Metric - MM: 52.4mm
Cup/Hole Size - Standard - IN: 2-1/16"
Outer Bezel Diameter - Standard: 2-1/16"
Outer Bezel Diameter: 2-1/4"
Lighting Type: LED Segments
Lighting Color: Red/Yellow/Green
Movement: Digital
Gauge Type: Narrowband Air/Fuel Ratio (AFR)
Range: LEAN-RICH
Includes Mounting Hardware: 2230
Cross Sell: 2244, 7127, 7137, 7103, 7163, 7174
Upsell: 2244, 7127, 7137, 7103, 7163, 7174
Related Item: 2160, BEX-3000, EP-800, 0423XL
