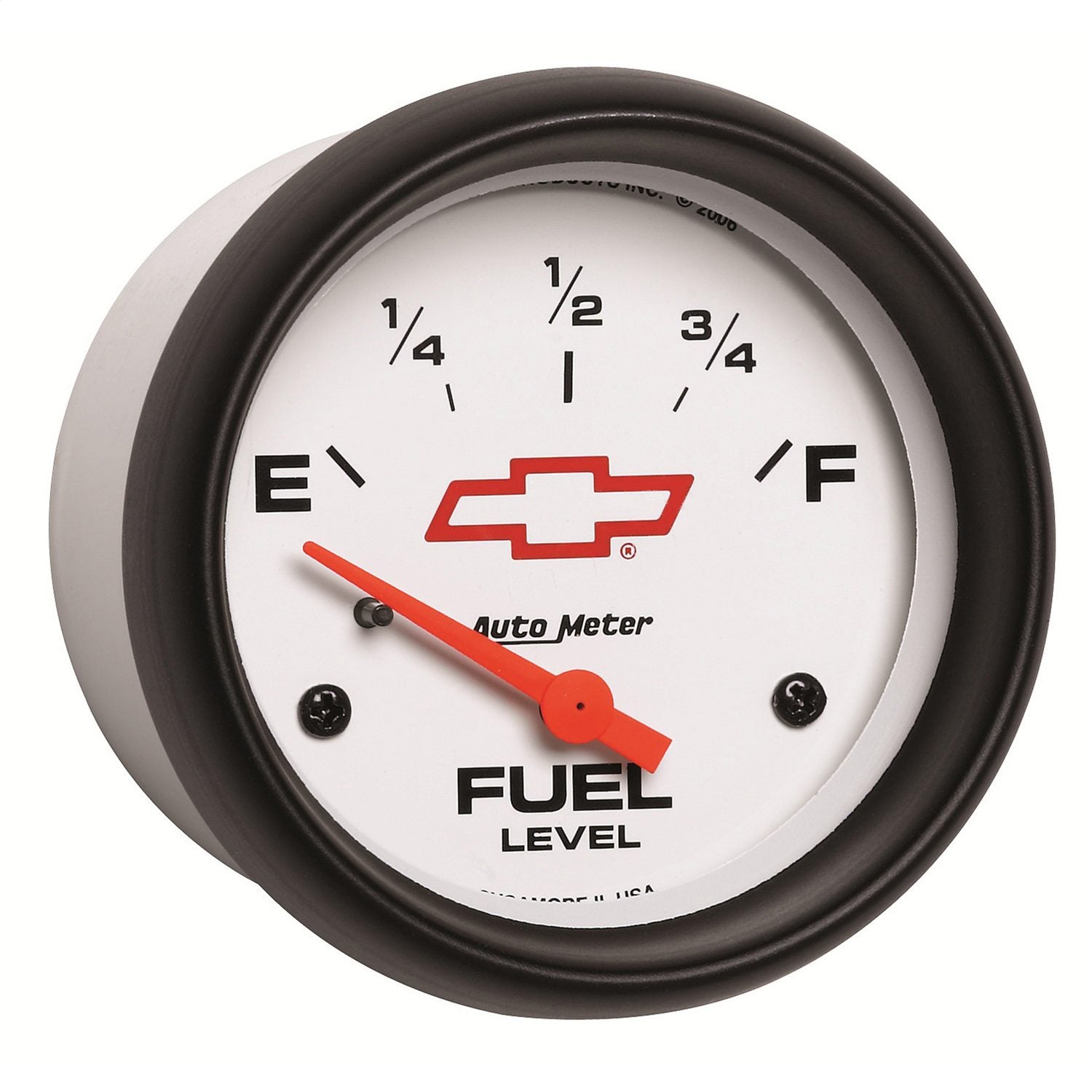

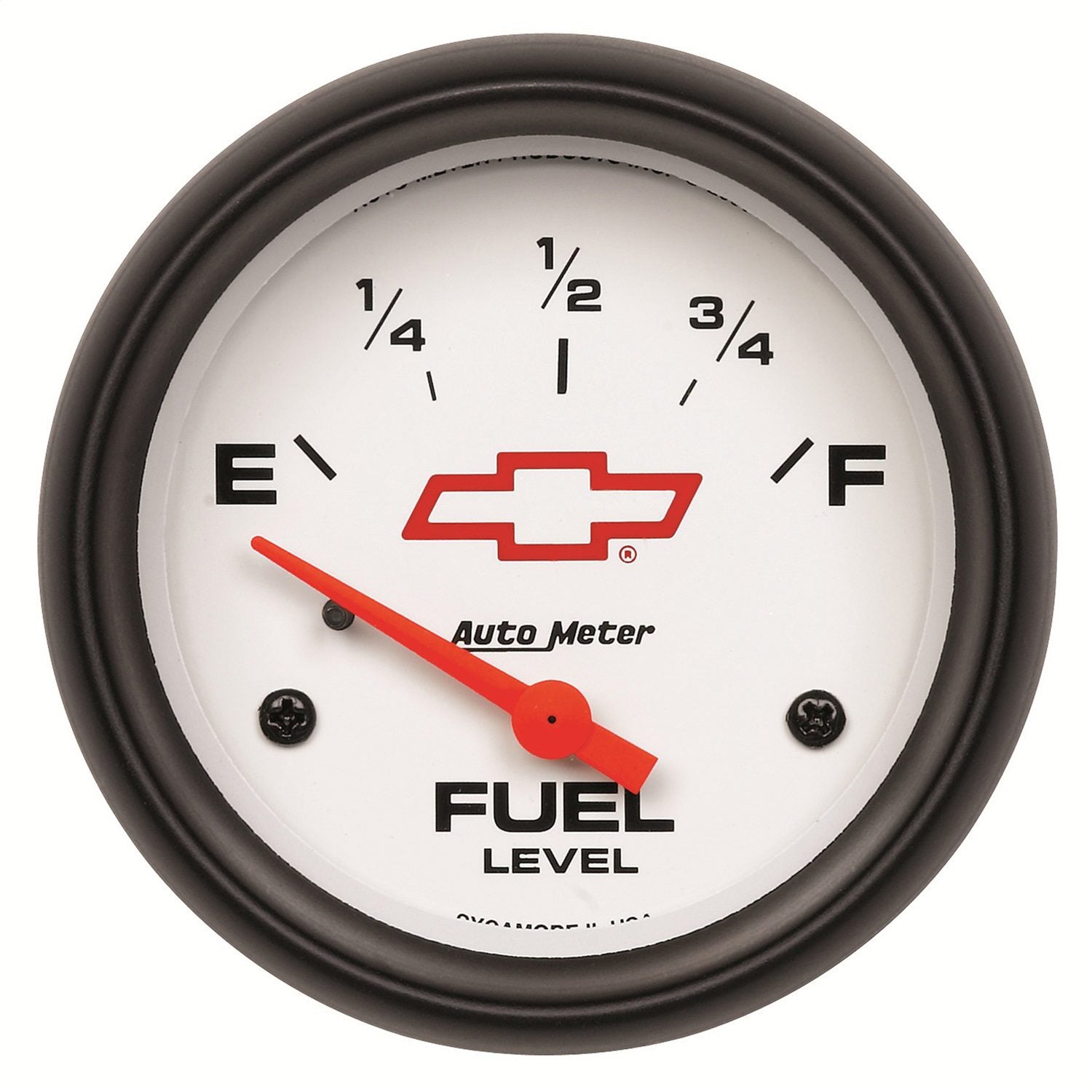

AutoMeter 5814-00406 - Gauge Fuel Level 2-5/8in. 0 Ohm(e) to 90 Ohm(f) Elec Chevy Red Bowtie White
AutoMeter 5814-00406 - Gauge Fuel Level 2-5/8in. 0 Ohm(e) to 90 Ohm(f) Elec Chevy Red Bowtie White
SKU: AM-5814-00406
Out of stock
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
AutoMeter 5814-00406 - Gauge Fuel Level 2-5/8in. 0 Ohm(e) to 90 Ohm(f) Elec Chevy Red Bowtie White
GAUGE; FUEL LEVEL; 2 5/8in.; 0?E TO 90?F; ELEC; CHEVY RED BOWTIE; WHITE
Traditional incandescent lighting illuminates around the perimeter of the dial
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
- Traditional Incandescent Lighting Illuminates
- Works w/Most 1965 To 1997 Chevrolet/GM Senders
- 12 And 16 Volt Compatible
- Gauge Kit Incl. Bulb/Socket Assembly Red/Green Bulb Covers
- Includes Mounting Hardware And Instructions For Installation
- AutoMeters Race Proven Air-Core Electric Instruments
