AutoMeter 5720 - Phantom 52mm 0-150 PSI Mechanical Air Pressure Gauge
AutoMeter 5720 - Phantom 52mm 0-150 PSI Mechanical Air Pressure Gauge
SKU: AM-5720
Regular price
$97.99 USD
Regular price
$107.79 USD
Sale price
$97.99 USD
Shipping calculated at checkout.
Low stock: 2 left
Quantity
Couldn't load pickup availability

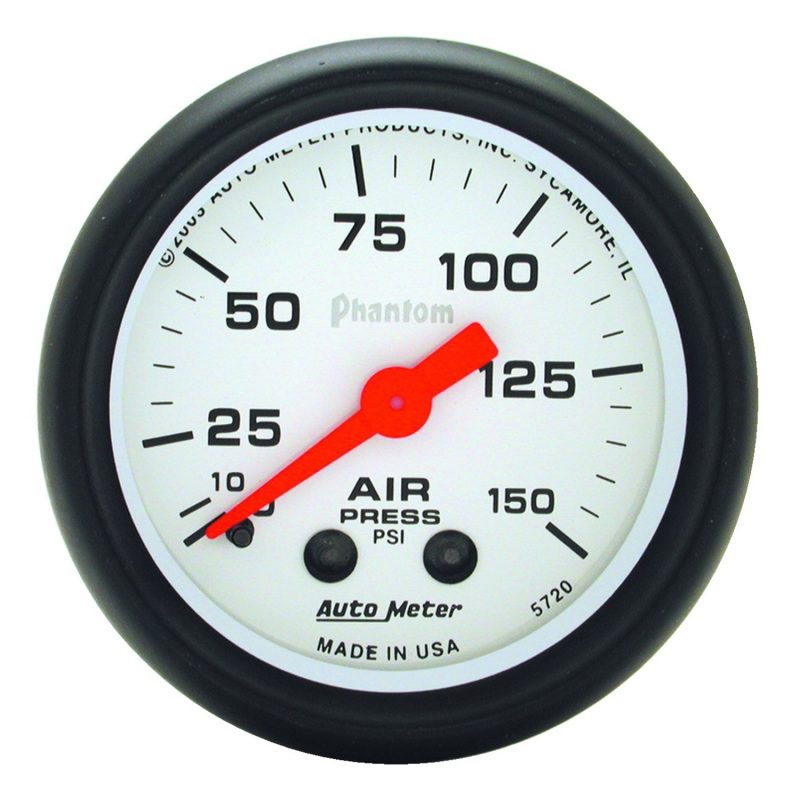

AutoMeter 5720 - Phantom 52mm 0-150 PSI Mechanical Air Pressure Gauge
Air Pressure Gauge - Phantom - 0-150 psi - Mechanical - Analog - 2-1/16 in Diameter - White Face - Each
Traditional incandescent lighting illuminates around the perimeter of the dial
Keep tabs on the system pressure in your airbag system with AutoMeter ultra precise Mechanical Air Pressure Gauge. Engineered with the world's most accurate and durable bourdon tube meter movement, this is a gauge that is built to last under even the harshest conditions. Includes 1/8 in. NPT connections and nylon tubing for installation.
- Incandescent Lighting Illuminates Around Perimeter Of Dial
- Mechanical Instruments Provide Unmatched Accuracy
- No Electrical System Required For Gauge Operation
- Incl. 1/8 in. Nylon Line; Compression Fittings
- Incl. 1/4 in. NPT Adapter
- Incl. Bulb/Socket Assembly/Red And Green Bulb Covers
- Incl. Mounting Hardware/Instructions
Series: PHANTOM
Dial Color: White
Lens Style: Flat, Clear
Bezel Color: Black
Bezel Style: Super Bezel
Size - Metric - MM: 52.4mm
Size - Standard - IN: 2-1/16"
Cup/Hole Size - Metric - MM: 52.4mm
Cup/Hole Size - Standard - IN: 2-1/16"
Outer Bezel Diameter - Standard: 2-1/16"
Outer Bezel Diameter: 2-1/4"
Lighting Type: Incandescent
Lighting Color: White Incandescent
Pointer Color: Fluorescent Red
Movement: Mechanical
Gauge Type: Air Pressure
Range: 0-150 PSI
Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing,
Includes Tubing: 10 ft. nylon tubing
Includes Bulb & Socket: 3220
Includes Light Covers: Red 3214 & Green 3215
Includes Mounting Hardware: 2230
Cross Sell: 3284, 3285, 3286, 3287, 3288
Upsell: 3284, 3285, 3286, 3287, 3288
Related Item: 2160, BEX-1500, EP-800, 0424XL
