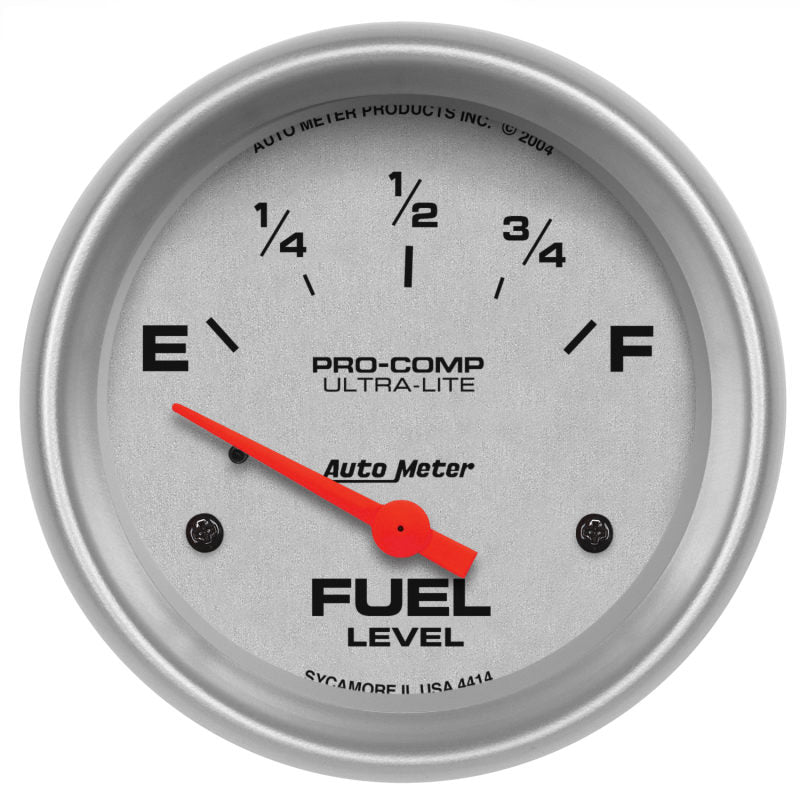

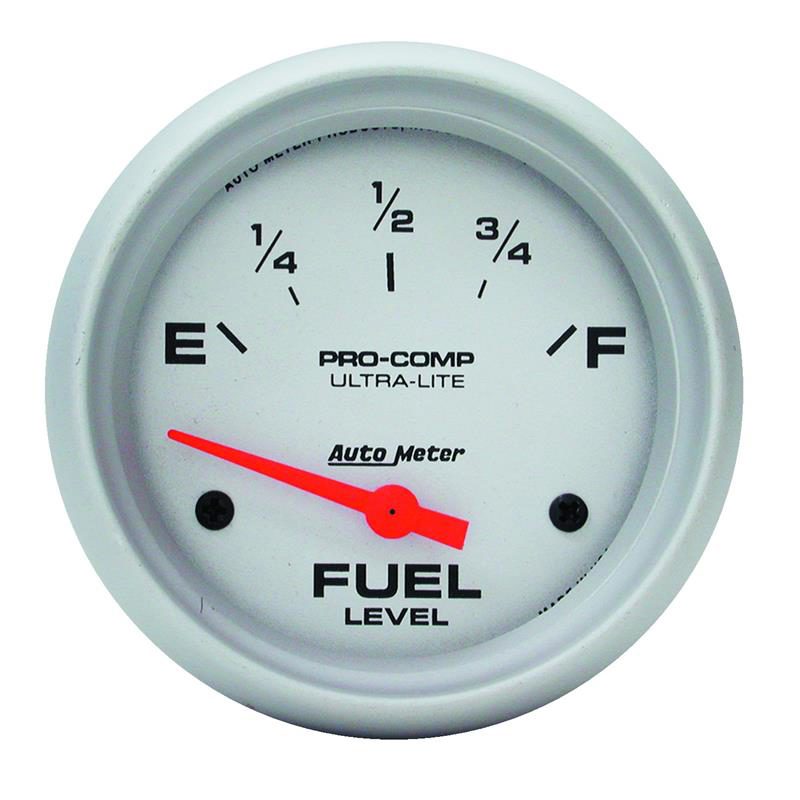

AutoMeter - 4414
Fuel Level Gauge - Ultra-Lite - 0-90 ohm - Electric - Analog - Short Sweep - 2-5/8 in Diameter - Silver Face - Each
Traditional incandescent lighting illuminates around the perimeter of the dial
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
- Incandescent Lighting Illuminates Around Perimeter Of Dial
- 12 And 16V Compatible
- Works w/Most 1965-1997 GM Senders
- Incl. Bulb/Socket Assembly/Red And Green Bulb Covers
- Incl. Mounting Hardware/Instructions
- Air-Core Electric Instruments Provide Quick And Accurate Readings
Analog Or Digital: Analog
Bezel Color: Brushed Aluminum
Bezel Style: Super Bezel
Block Adapter Included: No
Bulb and Socket Number: 3220
Bulb Technology: Incandescent
Electric Or Mechanical: Electric
Face Color: Silver
Fuel Line Adapter Included: No
Gauge Adapter Included: No
Gauge Size: 2.625 in.
Gauge Size: 66.7mm
Hole Size: 2.625 in.
Hole Size: 66.7mm
Illuminated: Yes
Lens: Flat Clear
Lighting Color: White Incandescent
Lighting Type: Incandescent
Liquid Filled: No
Mounting Bracket Number: 3245
Number Color: Black
Outer Bezel Diameter: 2.875 in.
Pointer Color: Fluorescent Red
Pressure: 0-100 PSI
Size: 2.625 in.
Voltage: 8-18 V
