AutoMeter 3234 - Line Braided Stainless Steel No.3 Dia. 3ft. Length -3AN And 1/8in. NPT Female Fittings

AutoMeter 3234 - Line Braided Stainless Steel No.3 Dia. 3ft. Length -3AN And 1/8in. NPT Female Fittings

Gauge Line Kit - 3 AN - 3 ft - 3 AN Female to 3 AN Female - Fittings Included - Braided Stainless - Mechanical Pressure Gauges - Kit

LINE; BRAIDED STAINLESS STEEL; #3 DIA.; 3FT. LENGTH;-3AN AND 1/8in. NPTF FITTINGS

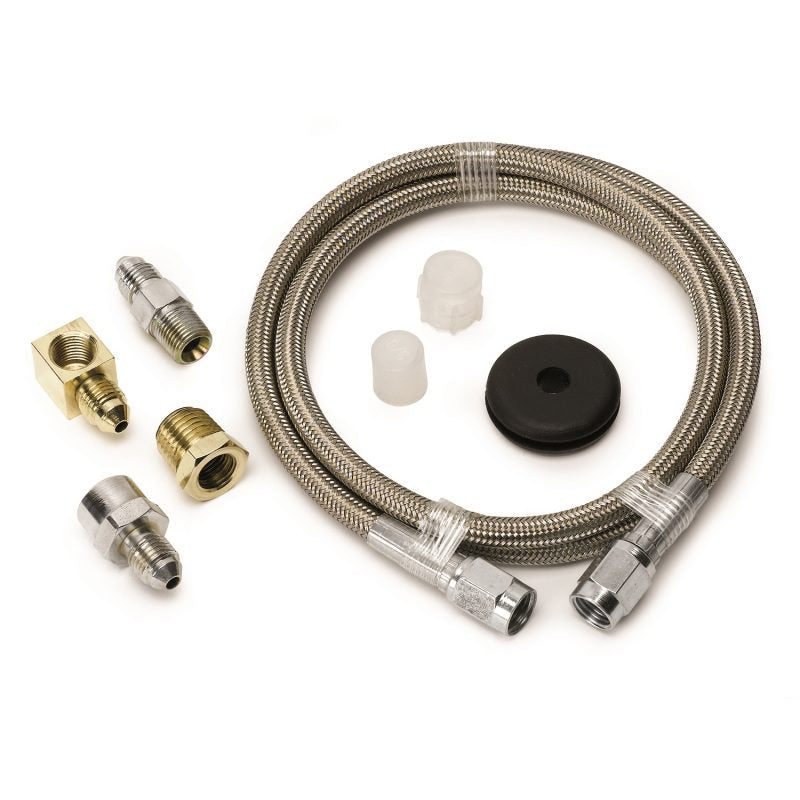

Includes 3ft. of #3 braided stainless steel line, firewall pass through grommet, 1/8 in. NPT female right angle to -3AN male fitting, -3AN male to 1/8 in. NPT male fitting, -3AN male to 1/8 in. NPT female fitting, 1/8 in. NPT to 1/4 in. NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.

• For Mechanical Pressure Gauge
• Type 304 Braided Stainless Steel Hose
• 3 ft. Hose Length
• PTFE Lined Hose That Is Resistant To Most Fluids
• Maximum Operating Pressure-3000 PSI
• Operating Temp -65 to 450 Deg. F
• Incl. 1/8 in. NPT Male to 3AN Female Straight
• Incl. 3AN Male; 1/8 in. NPFT to 1/4 in. NPMT Straight
• Incl. 3AN to 1/8 in. NPFT 90 Deg. Fittings
