AutoMeter 3229 - #4 Braided SS Line (-4AN) 4ft 3/16in ID Fittings

AutoMeter 3229 - #4 Braided SS Line (-4AN) 4ft 3/16in ID Fittings

Gauge Line Kit - 4 AN - 4 ft - 4 AN Female to 4 AN Female - Fittings Included - Braided Stainless - Mechanical Pressure Gauges - Kit

LINE; BRAIDED STAINLESS STEEL; #4 DIA.; 4FT. LENGTH;-4AN AND 1/8in. NPTF FITTINGS

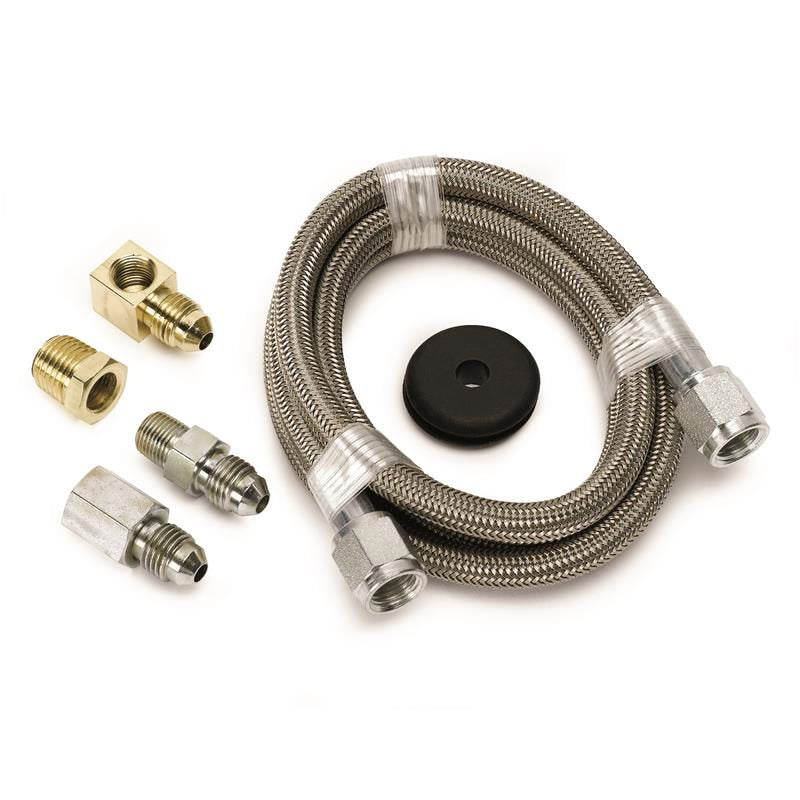

Includes 4ft. of #4 braided stainless steel line, firewall pass through grommet, 1/8 in. NPT female right angle to -4AN male fitting, -4AN male to 1/8 in. NPT male fitting, -4AN male to 1/8 in. NPT female fitting, 1/8 in. NPT to 1/4 in. NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.

• For Mechanical Pressure Gauge
• Type 304 Braided Stainless Steel Hose
• 4 ft. Hose Length
• PTFE Lined Hose That Is Resistant To Most Fluids
• Maximum Operating Pressure-3000 PSI
• Operating Temp -65 to 450 Deg. F
• Incl. 1/8 in. NPT Male to 4AN Female Straight
• Incl. 4AN Male; 1/8 in. NPFT to 1/4 in. NPMT Straight
• Incl. 4AN to 1/8 in. NPFT 90 Deg. Fittings
