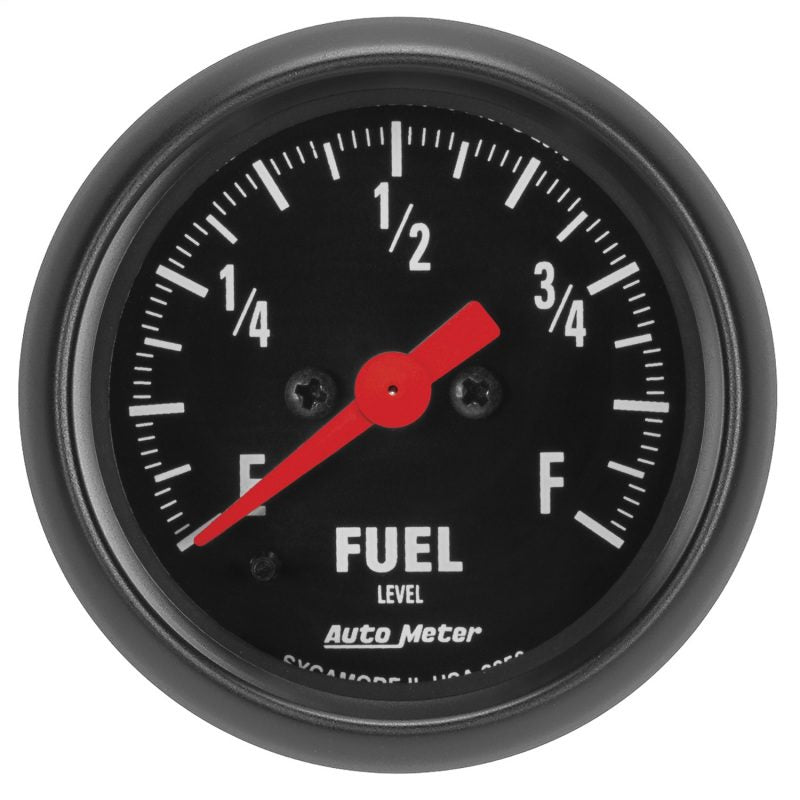

AutoMeter - 2656

GAUGE; FUEL LEVEL; 2 1/16in.; 0-280O PROGRAMMABLE; Z-SERIES

Traditional incandescent lighting illuminates around the perimeter of the dial

Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it's easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our 'snapshot' programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn't an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.

  • Incandescent Lighting Illuminates Around Perimeter Of Dial
  • 12 And 16V Compatible
  • Works w/Most Pre-1965 GM Senders
  • Incl. Bulb/Socket Assembly/Red And Green Bulb Covers
  • Incl. Mounting Hardware/Instructions
  • Air-Core Electric Instruments Provide Quick And Accurate Readings

Analog Or Digital: Analog
Bezel Color: Black
Bezel Style: Super Bezel
Block Adapter Included: No
Electric Or Mechanical: Electric
Face Color: Black
Fuel Line Adapter Included: No
Gauge Adapter Included: No
Gauge Size: 2.0625 in.
Gauge Size: 52.4mm
Gauge Type: Fuel Level
Hole Size: 0.0625 in.
Hole Size: 52.4mm
Illuminated: Yes
Lens: Flat Clear
Lighting Color: White Incandescent
Lighting Type: Incandescent
Liquid Filled: No
Movement Type: Electric Digital Stepper Motor
Number Color: White
Outer Bezel Diameter: 2.250 in.
Pointer Color: Fluorescent Red
Sweep: Full
Voltage: 8-18 V
