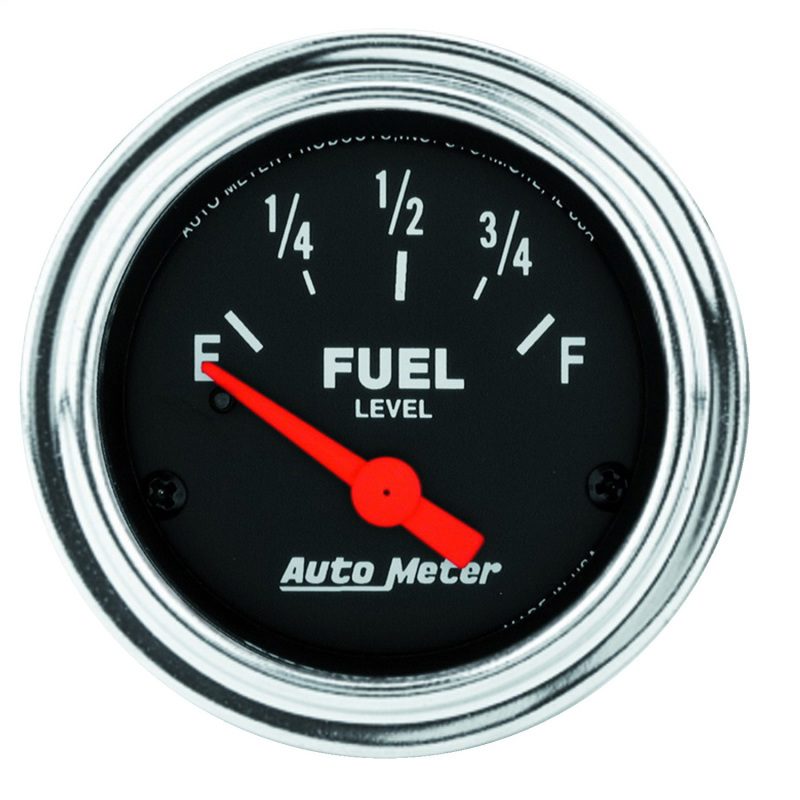

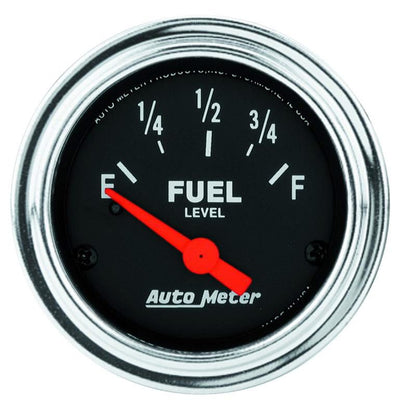

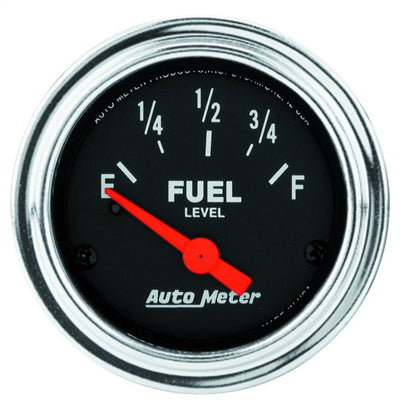

AutoMeter 2514 - Traditional Chrome 52mm Short Sweep 0 Ohm - 90 Ohm Full Electrical Fuel Level Gauge

AutoMeter 2514 - Traditional Chrome 52mm Short Sweep 0 Ohm - 90 Ohm Full Electrical Fuel Level Gauge

Fuel Level Gauge - Traditional Chrome - 0-90 ohm - Electric - Analog - Short Sweep - 2-1/16 in Diameter - Black Face - Each

Traditional incandescent lighting illuminates around the perimeter of the dial

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

• Incandescent Lighting Illuminates Around Perimeter Of Dial
• 12 And 16V Compatible
• Works w/Most 1965-1997 GM Senders
• Incl. Bulb/Socket Assembly/Red And Green Bulb Covers
• Incl. Mounting Hardware/Instructions
• Air-Core Electric Instruments Provide Quick And Accurate Readings
