AutoMeter 2286 - Temperature Manifold Adaptor for 3/8 O.D. Tubing

AutoMeter 2286 - Temperature Manifold Adaptor for 3/8 O.D. Tubing

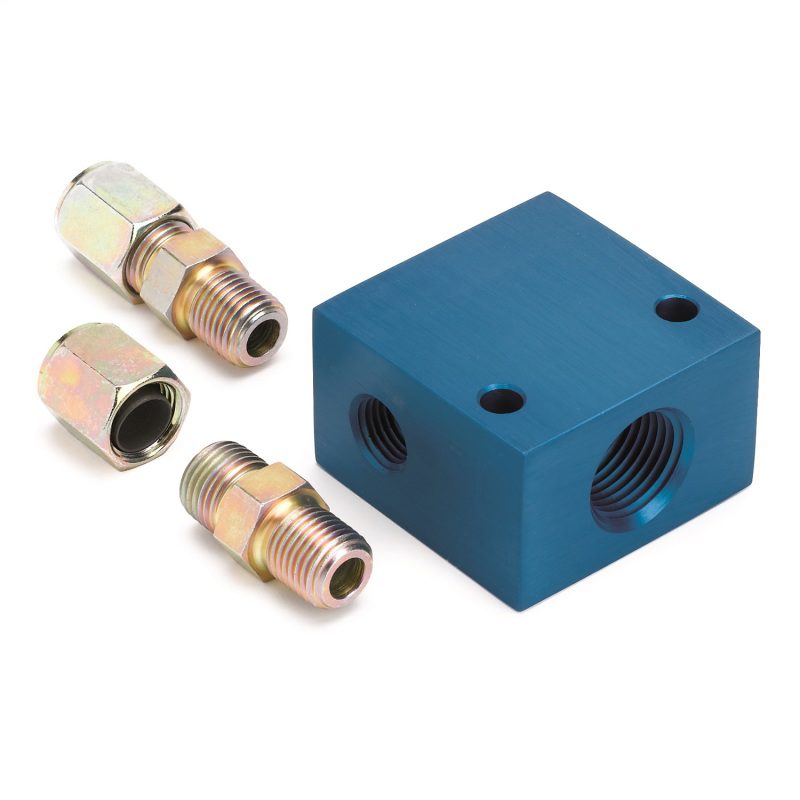

Temperature Manifold - 1/4 in NPT Inlet / Outlet - 1/2 in NPT Gauge Port - 1/4 in Mounting Holes - Two 3/8 in Compression Fittings - Aluminum - Blue Anodized - Kit

FITTING; ADAPTER; TRANSMISSION LINE; 3/8in. OD TUBING; 1/2-1/16in. NPTF

For Transmission Temperature Gauges Use this kit to install mechanical and electric transmission temperature gauges in the HOT transmission cooler hardline. Perfect for applications where a temperature port or pan installation is not appropriate.

• Machined from high strength, aircraft grade aluminum alloy, finished in bright blue anodizing.
• 1/2" NPT Sensor Port
• 1/4" NPTF Line Ports
• Includes 1/4" NPTF to 3/8" Compression Fittings
• Manifold Block Measures 2" x 2" x 1.25"
• Two 1/4 in. fastener holes provided for mounting.
