AutoMeter 2241 - Oil Pressure Sensor 0-80PSI 1/8in NPT Male For Short Sweet Elec

AutoMeter 2241 - Oil Pressure Sensor 0-80PSI 1/8in NPT Male For Short Sweet Elec

Pressure Sending Unit - 1/8 in NPT Male - 0-80 psi - Short Sweep Electric Oil Pressure Gauges - Each

SENSOR; OIL PRESSURE; 0-80PSI; 1/8in. NPT MALE; FOR SHORT SWEEP ELEC.

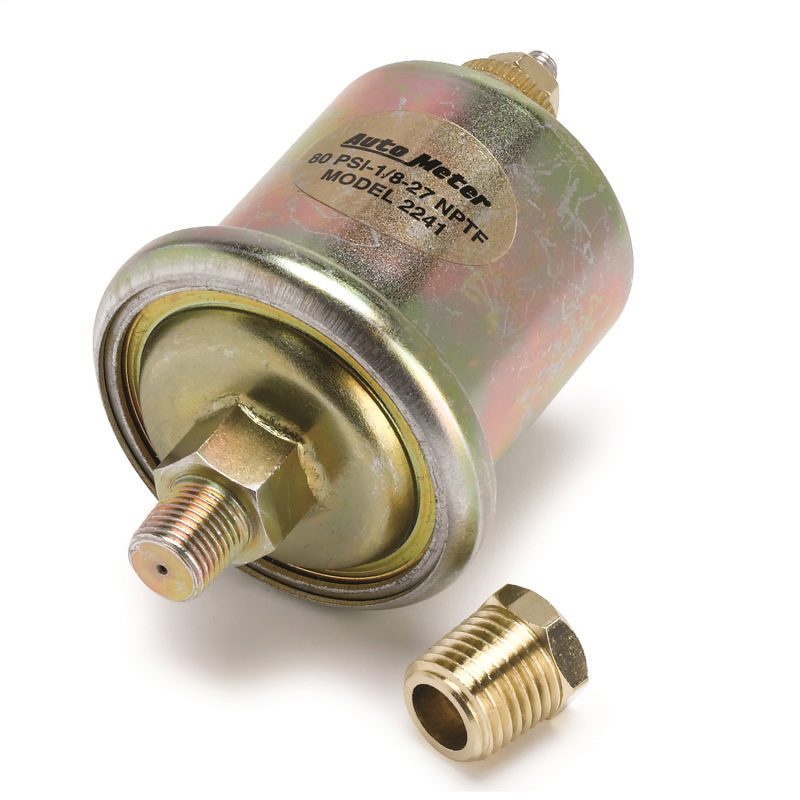

These replacement pressure sensors and included 1/4 in. adapters are designed for use with AutoMeter gauges produced prior to 1995 which are visually identifed by their light blue case and a distinctive black mask on the lens covering the pointer hubs. For current generation instruments, please see model #2242.

• Sensor Body Materlal - Plated steel
• Thread size - 1/8" NPTF
• Includes 1/4" NPT adapter bushing.
• Measures 3.25" long from end of threads to tip of sensor stud and 2" in diameter.
• Not compatible with fuel.
